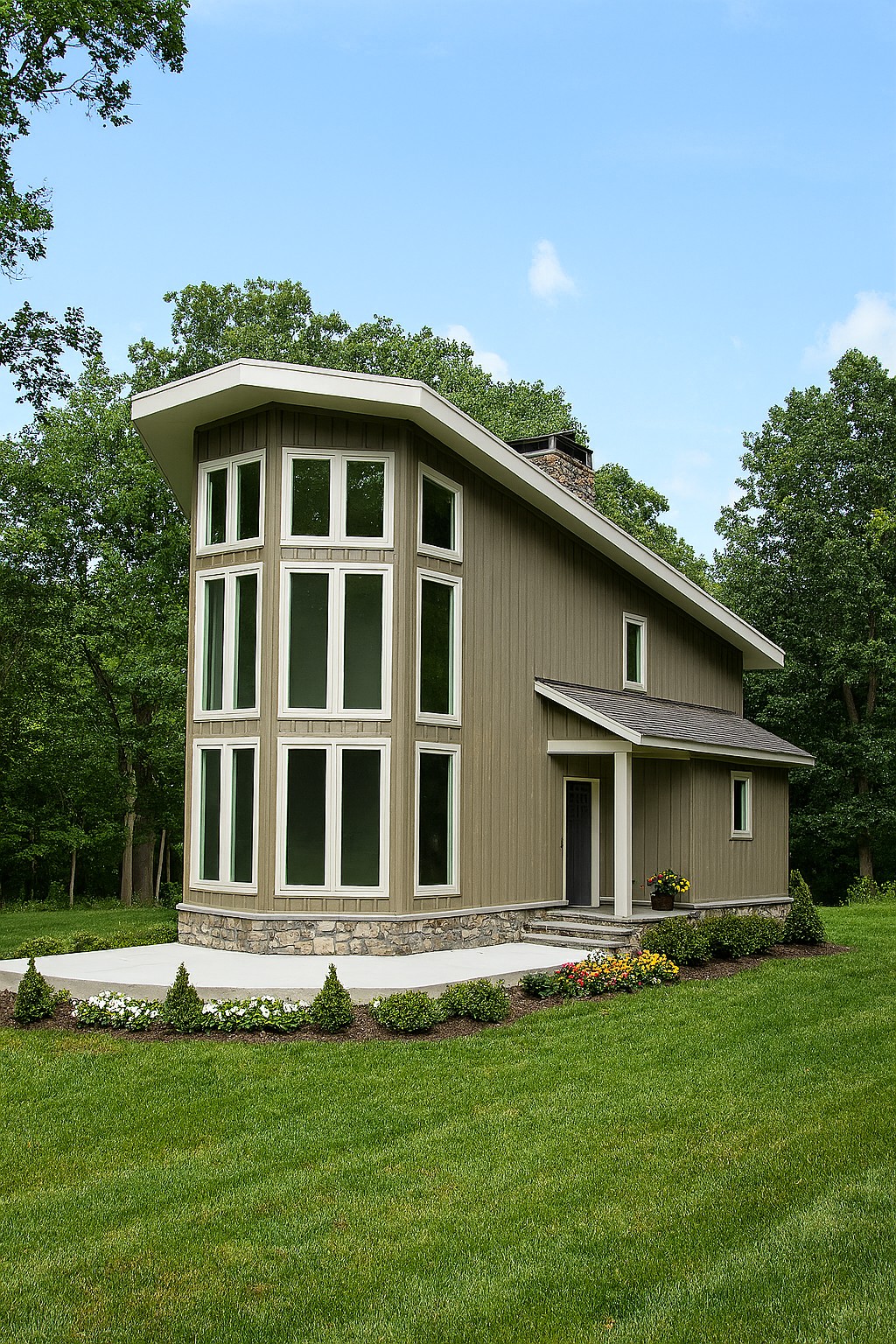

House Plan 5004 Flyaway Retreat, Contemporary House Plan

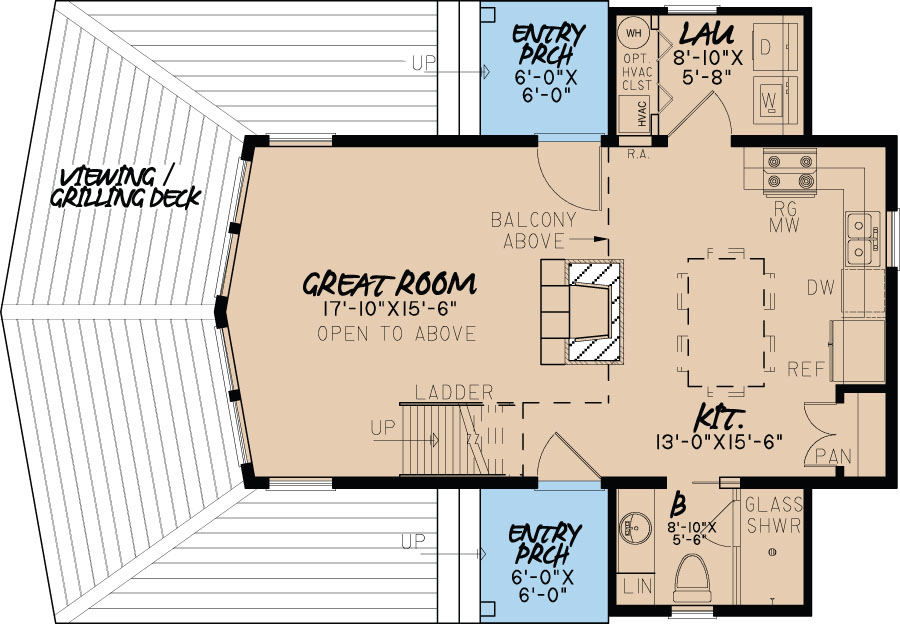

House Plan MEN 5004 Main Floor

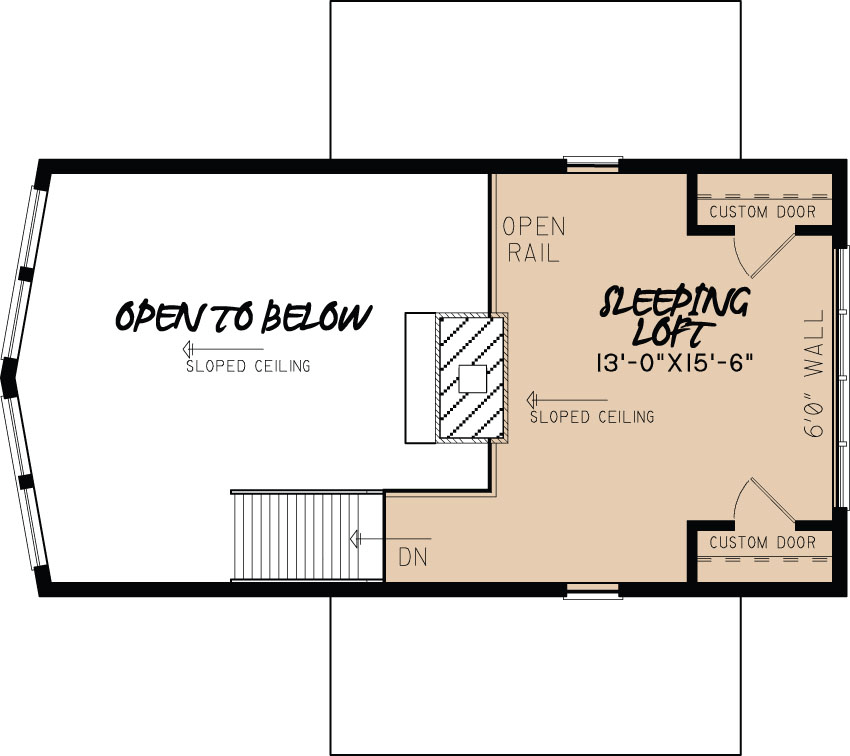

House Plan MEN 5004 Upper Floor
House Plan MEN 5004 Main Floor
House Plan MEN 5004 Upper Floor

Floor plans

MEN 5004

House Plan 5004 Flyaway Retreat, Contemporary House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: MEN 5004
  • Total Living Space:844Sq.Ft.
  • Bedrooms: 1
  • Full Baths: 1
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 28
  • Width In.: 6
  • Depth Ft.: 42
  • Depth In.: N/A

Description

This unique home is perfect for a vacation home, especially a waterfront property, with its large wrap-around Viewing/Grilling Deck. The Great Room will be well lit from the front wall of floor to ceiling windows while the centrally located fireplace will keep all guests warm. An accomadating Sleeping Loft is located upstairs and over looks the Great Room, also benefitting from the view of the front windows.

Specifications

  • Total Living Space:844Sq.Ft.
  • Main Floor: 629 Sq.Ft
  • Upper Floor (Sq.Ft.): 215 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 72 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 916 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x6
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 3:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: 12 i joist
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 3
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
