House Plan 5007 The Croft Manor, Rustic House Plan

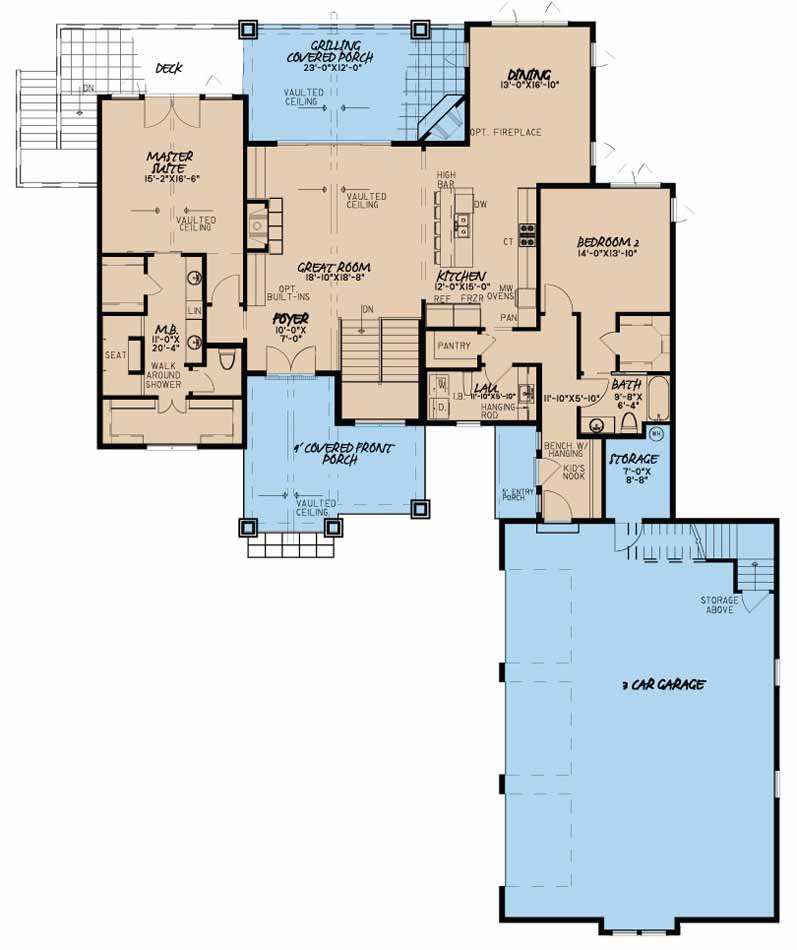

House Plan MEN 5007 Main Floor

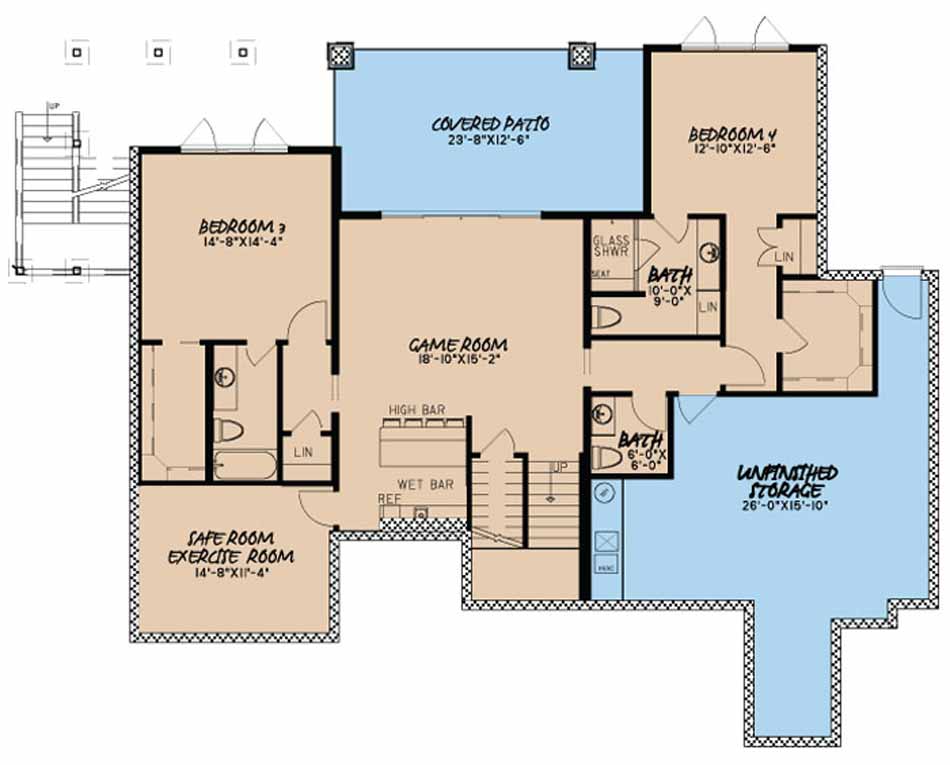

House Plan MEN 5007 Basement
House Plan MEN 5007 Main Floor
House Plan MEN 5007 Basement

Floor plans

MEN 5007

House Plan 5007 The Croft Manor, Rustic House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: MEN 5007
  • Total Living Space:3697Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 73
  • Width In.: 2
  • Depth Ft.: 98
  • Depth In.: N/A


This rustic walkout basement house plan is perfect for anyone with a sloped lot!

The beautiful exterior of this home mixes rustic and craftsman style elements for a simple but pleasing street appeal. Shake siding accents the gables while the a beautiful truss entryway welcomes visitors into your home. The courtyard style garage and the large covered front porch both add to the over all appeal of the exterior of this house plan. Stepping inside you will find yourself in the spacious foyer that opens directly in the great room. This great room boasts many beautiful features including a fireplace framed by optional built-ins and a vaulted ceiling that continues out through the rear covered porch giving you the most natural light and best view possible. The open floor plan allows the great room to flow into the kitchen making the space perfect for both family time or entertaining guests. The kitchen in the rustic house plan was designed to please! With a large island and counter along the back wall you will have plenty of space for preparing your favorite meals. You will also have plenty of storage between the cupboard space and the walk-in pantry around the corner. The dining room has the perfect balance of its own space but still being open to the kitchen. This will make your dining room a bit less formal while still allowing it its own space. Continuing through the kitchen and past the pantry you will find the laundry room which has a convenient sink and a built-in ironing board. From the hall you will also have access to bedrooms 2, a full bath, a large kid’s nook or mudroom and the 3 car garage. The opposite side of the home is solely devoted to the master suite giving you your own “wing” of the home. The master bedroom has an elegant vaulted ceiling and direct access the the deck. The master bath features a beautiful walk around shower with a seat, a large vanity with 2 sinks and a linen closet, a private toilet room and two separate walk-in closets. Back in the great room you can head down the stairs and you will find yourself in the walk-out basement of this house plan. You enter directly into the awesome game room with a kitchenette and access to the covered patio. This basement also contains 2 bedrooms each with their own private ensuite bath as well as a safe room/exercise room, a half bath and an unfinished storage room. Other Great Features Of This House Plan: An optional fireplace on the covered grilling porch Bedroom 2 has direct access to the hall bath A large storage closet in the garage Access to storage above the garage Tons of windows throughout the home for plenty of natural light Outdoor stairs from the upper deck to the ground floor

Walkout Basements Pros To Having One

Most people tend to go with a second story on their home instead of a walkout basement. Now while we know not all lots allow for walkout basements and you will save on the cost of concrete by going with a second floor there are some major pros to a basement. One of these pros is the noise level for you main floor. With an upper floor you will have to hear those walking above you whether you are in the kitchen, great room master suite of whatever other rooms you have on the main floor. This can be a major draw back in a lot of homes. If those room where in a basement below the main floor however you wouldn’t have to hear them! Another pro to having a basement is being able to put your safe room there. A basement is the most logical and safe place for a safe room. Before choosing a walkout basement house plan be sure that your lot has enough slope to it.

Customize This House PlanMake It Perfect For You

Through the process of looking for your perfect house plan you may think that nothing will ever find “the one” however this, or another Nelson Design Group, could almost hit the mark. We would love help you take this almost perfect house plan and help you customize it to be “the one”. Need some more information before getting started? Check out our: Modifications FAQ page. Ready to get started? Send us an email to and be sure to include the plan number, changes to be made and the timeline in which you need to completed plans.


  • Total Living Space:3697Sq.Ft.
  • Main Floor: 2178 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): 1519 Sq.Ft.
  • Bonus Room (Sq.Ft.): 464 Sq.Ft.
  • Porch (Sq.Ft.): 598 Sq.Ft.
  • Garage (Sq.Ft.): 1378 Sq.Ft.
  • Total Square Feet: 6137 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x6
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 10
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
