House Plan 5024 Adirondack Cottage, Arts and Crafts House Plan

House Plan MEN 5024 Main Floor
House Plan MEN 5024 Main Floor

Floor plans

MEN 5024

House Plan 5024 Adirondack Cottage, Arts and Crafts House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: MEN 5024
  • Total Living Space:1008Sq.Ft.
  • Bedrooms: 1
  • Full Baths: 1
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 60
  • Width In.: 3
  • Depth Ft.: 25
  • Depth In.: 4

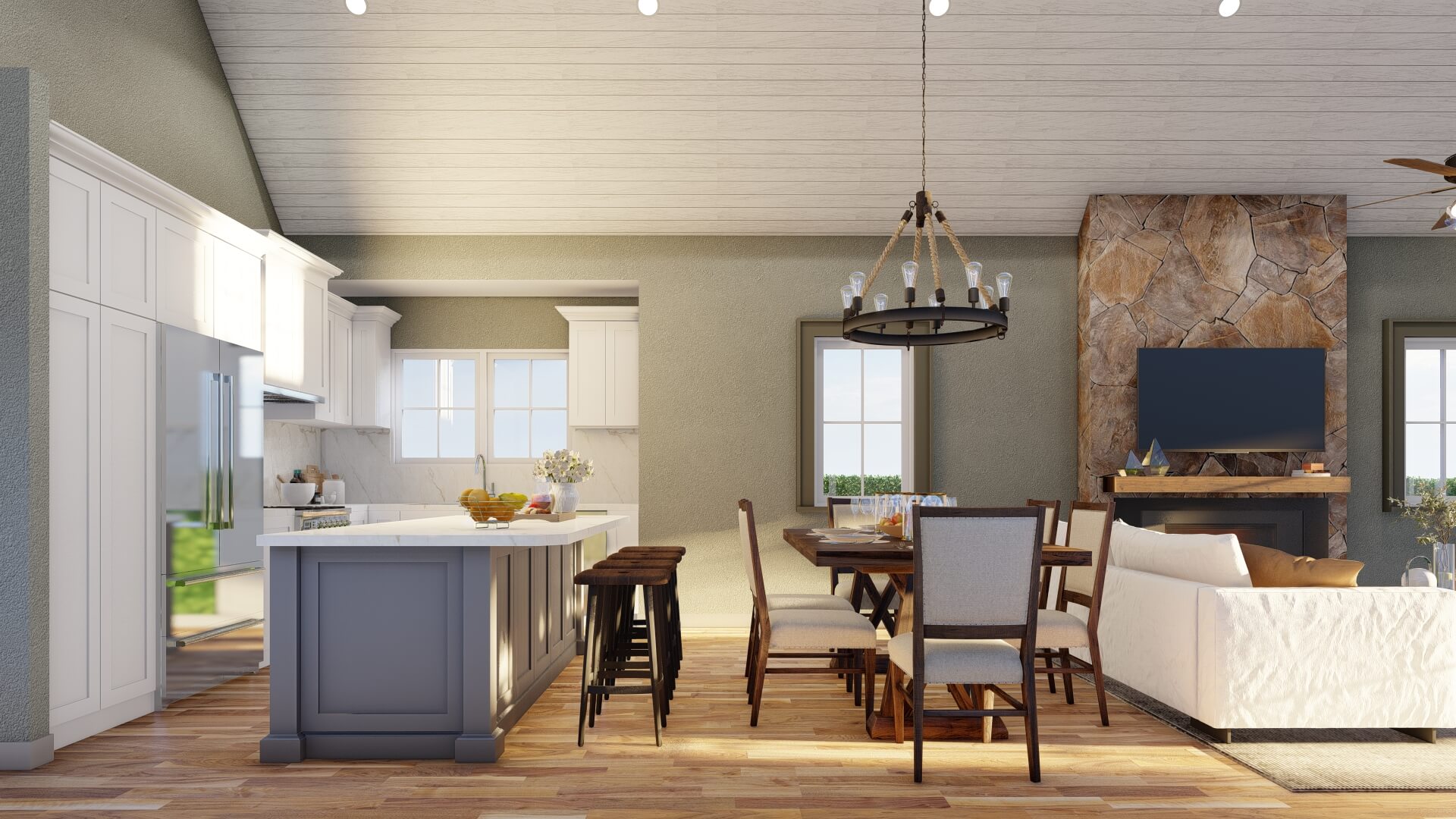

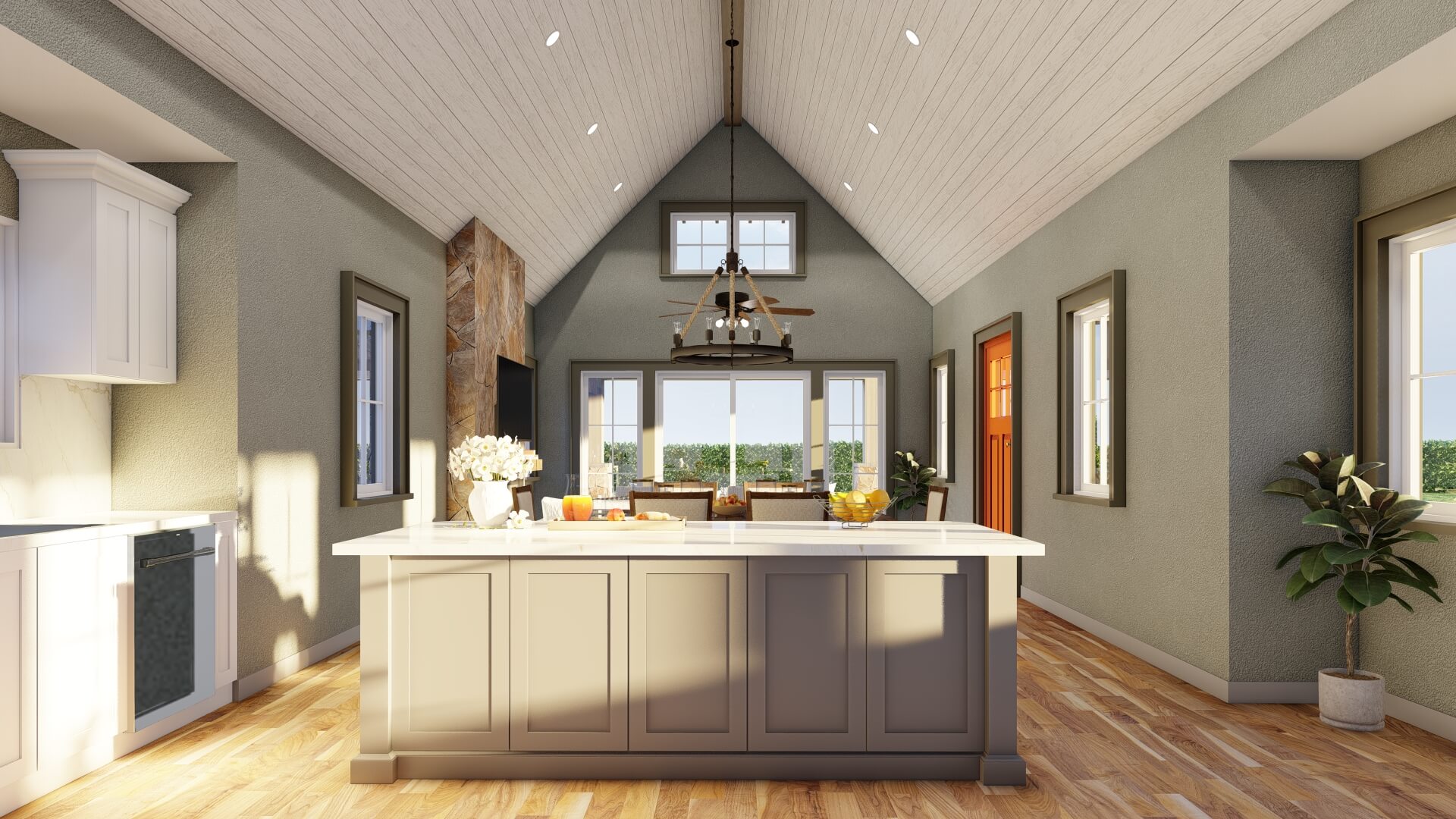

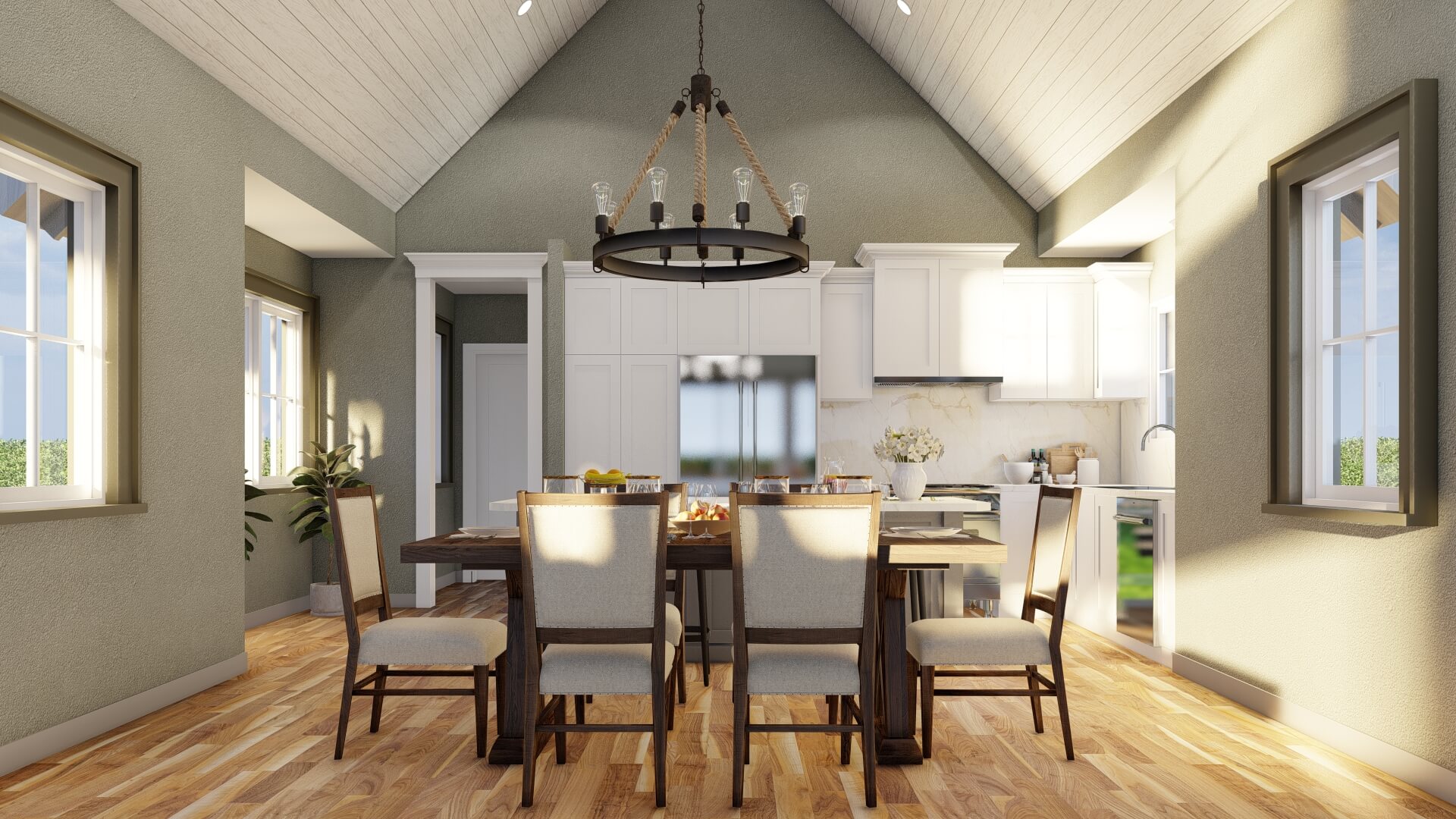

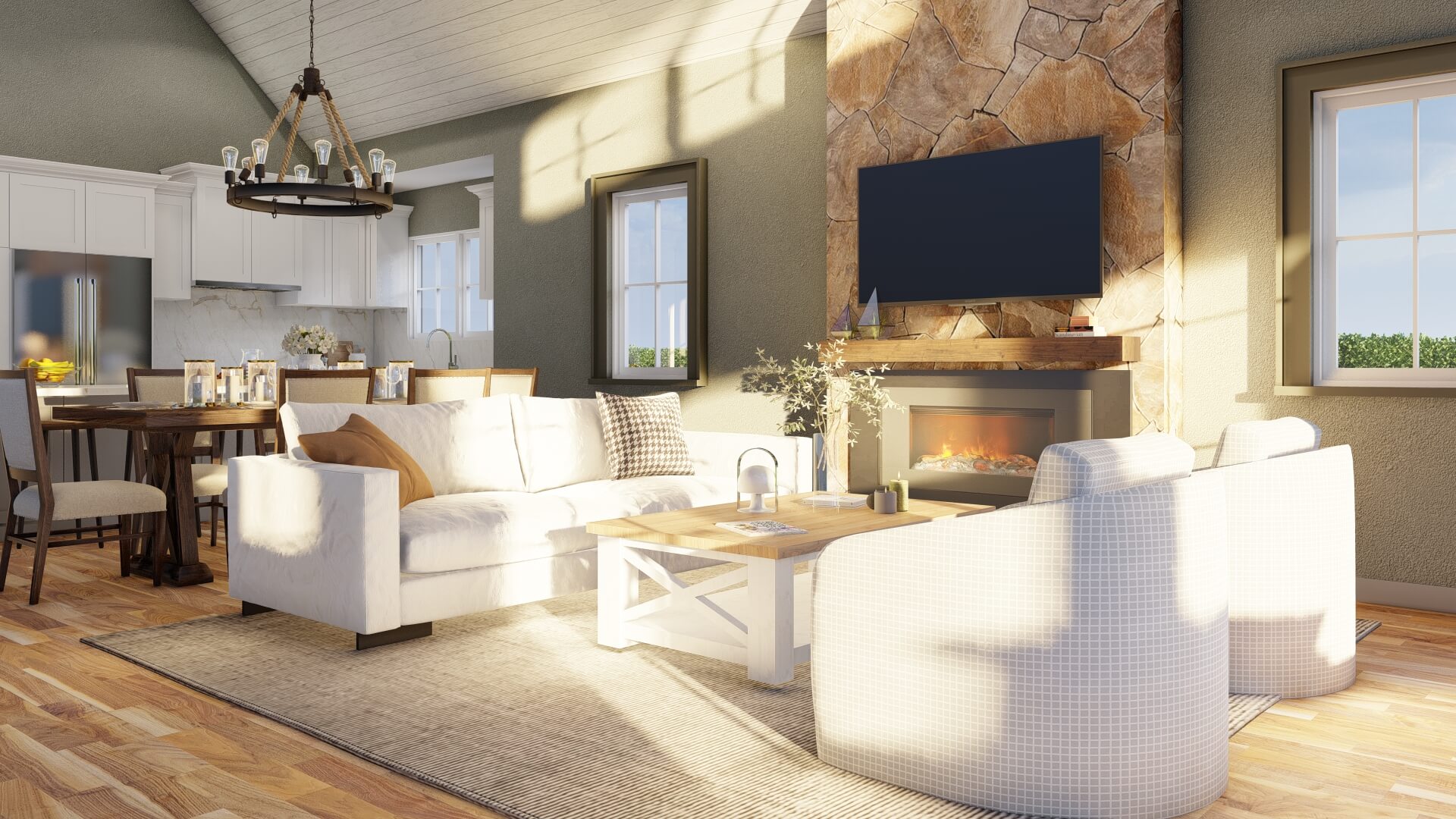

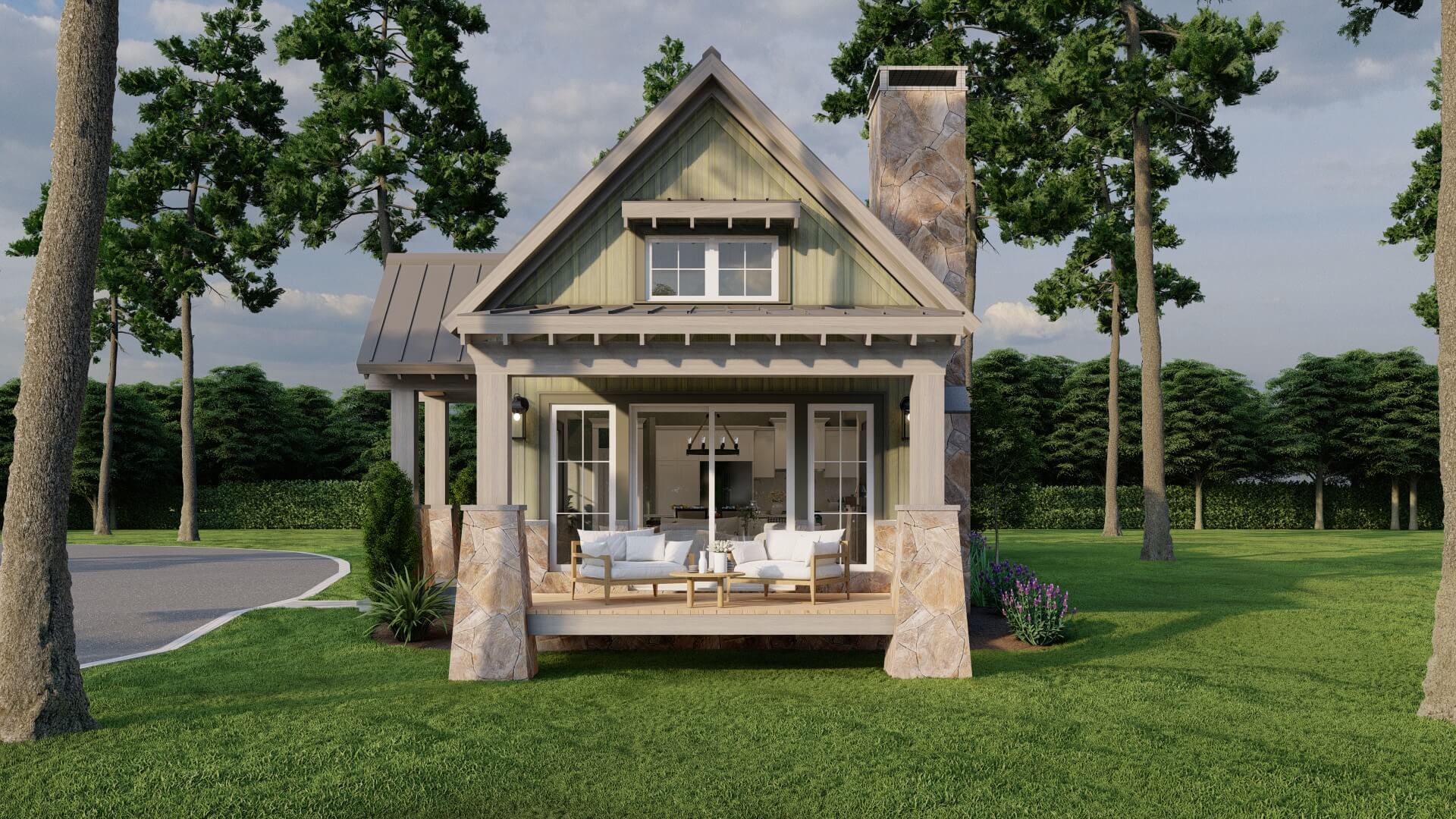

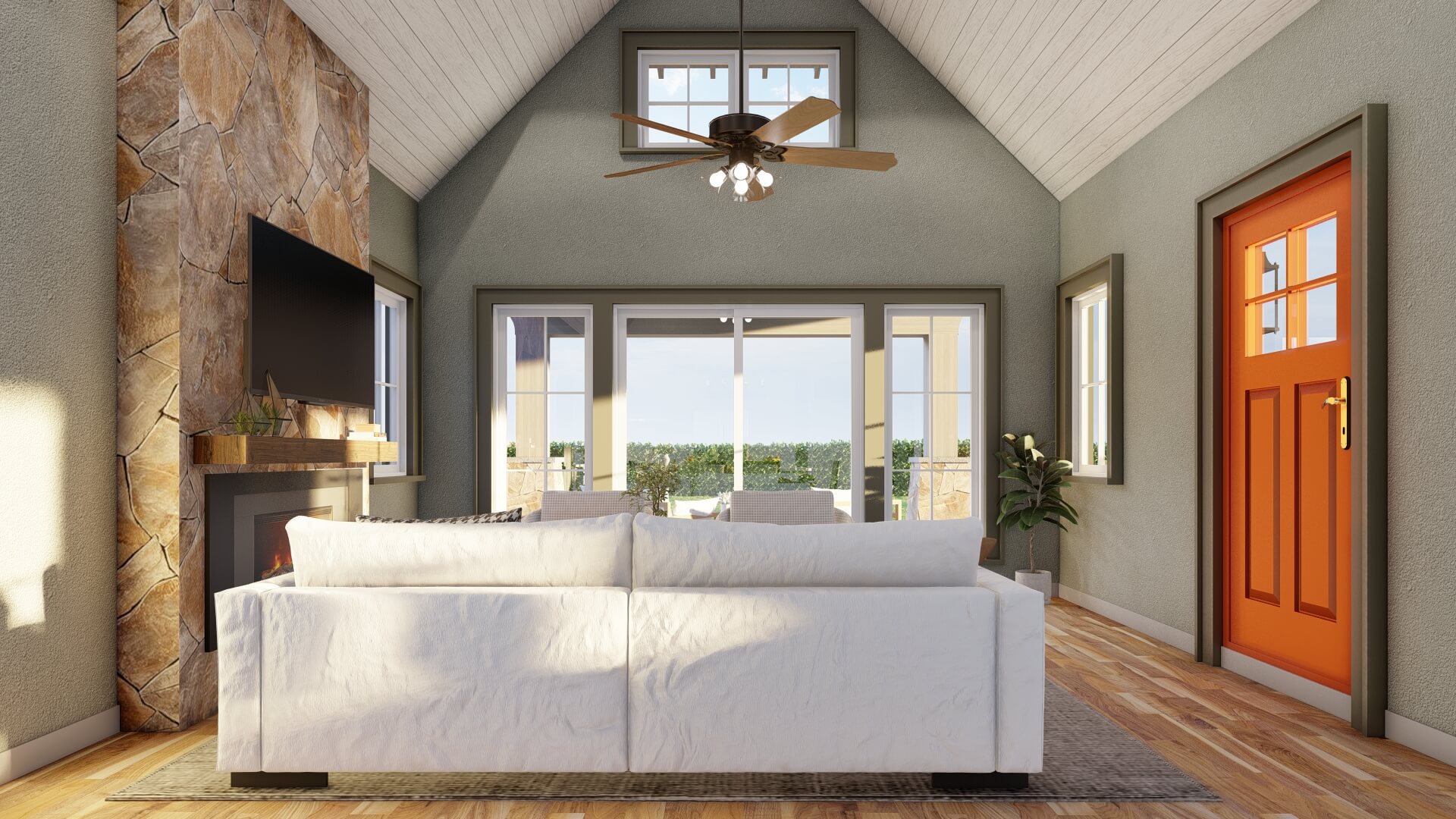

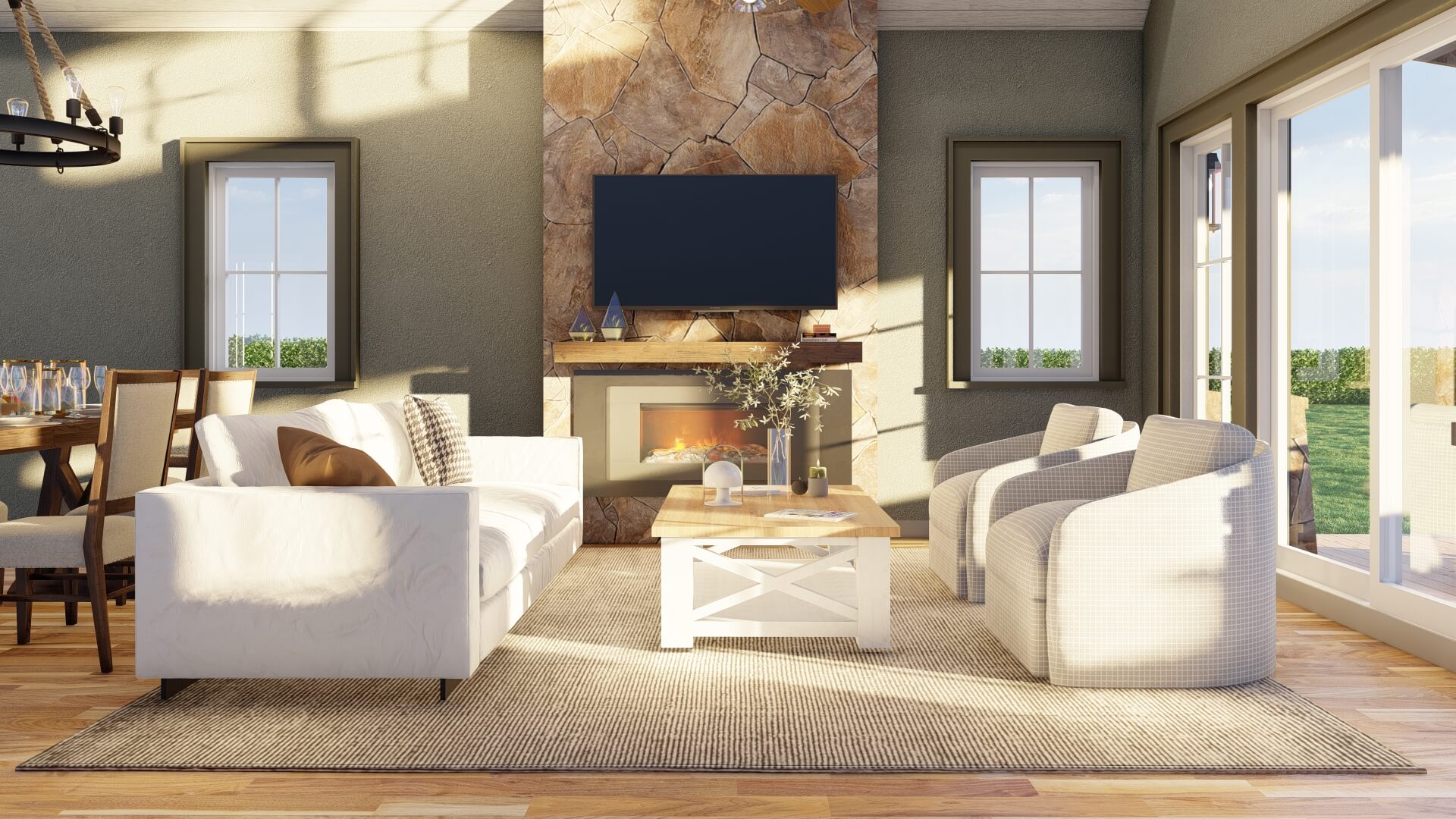

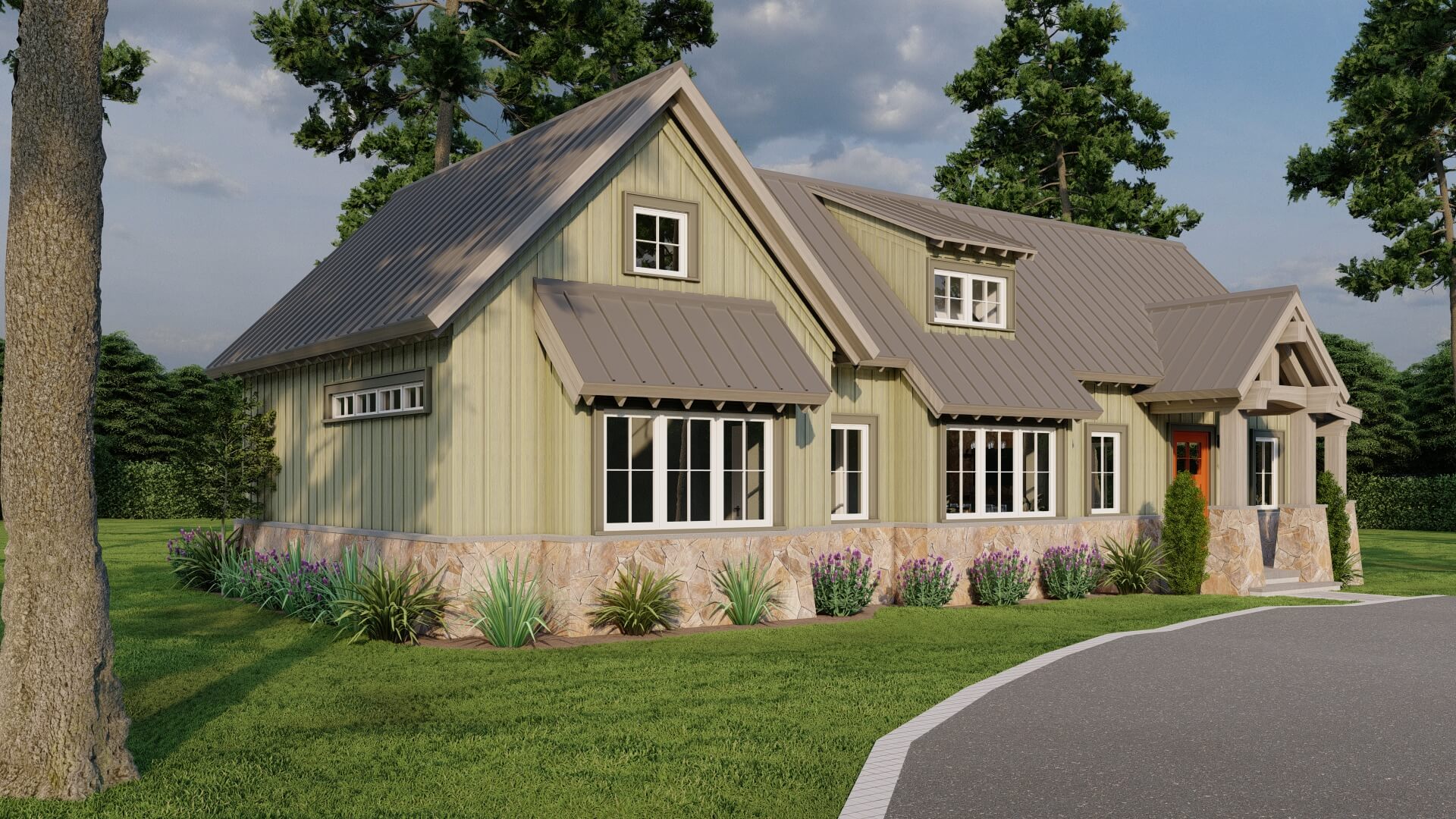

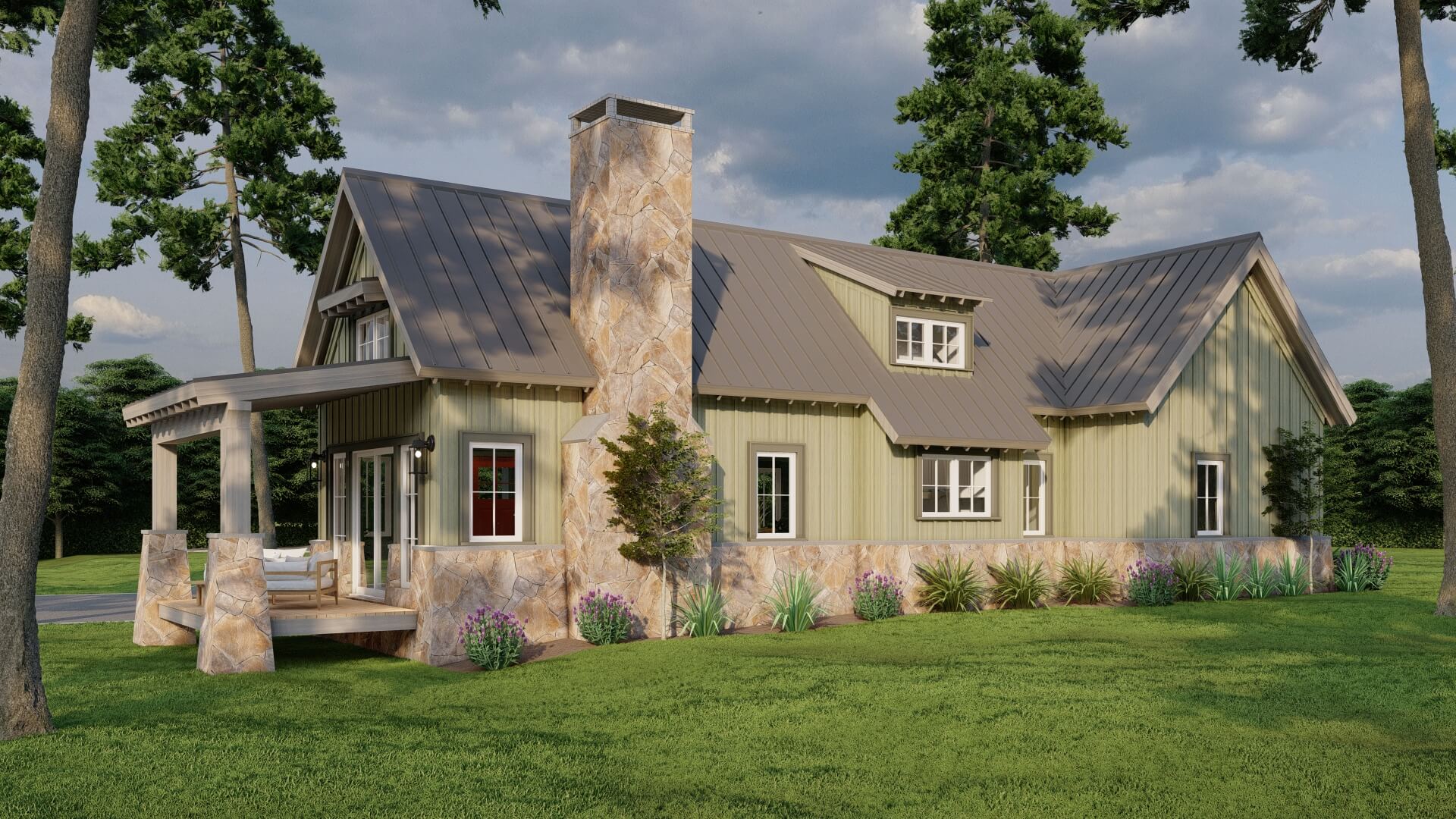

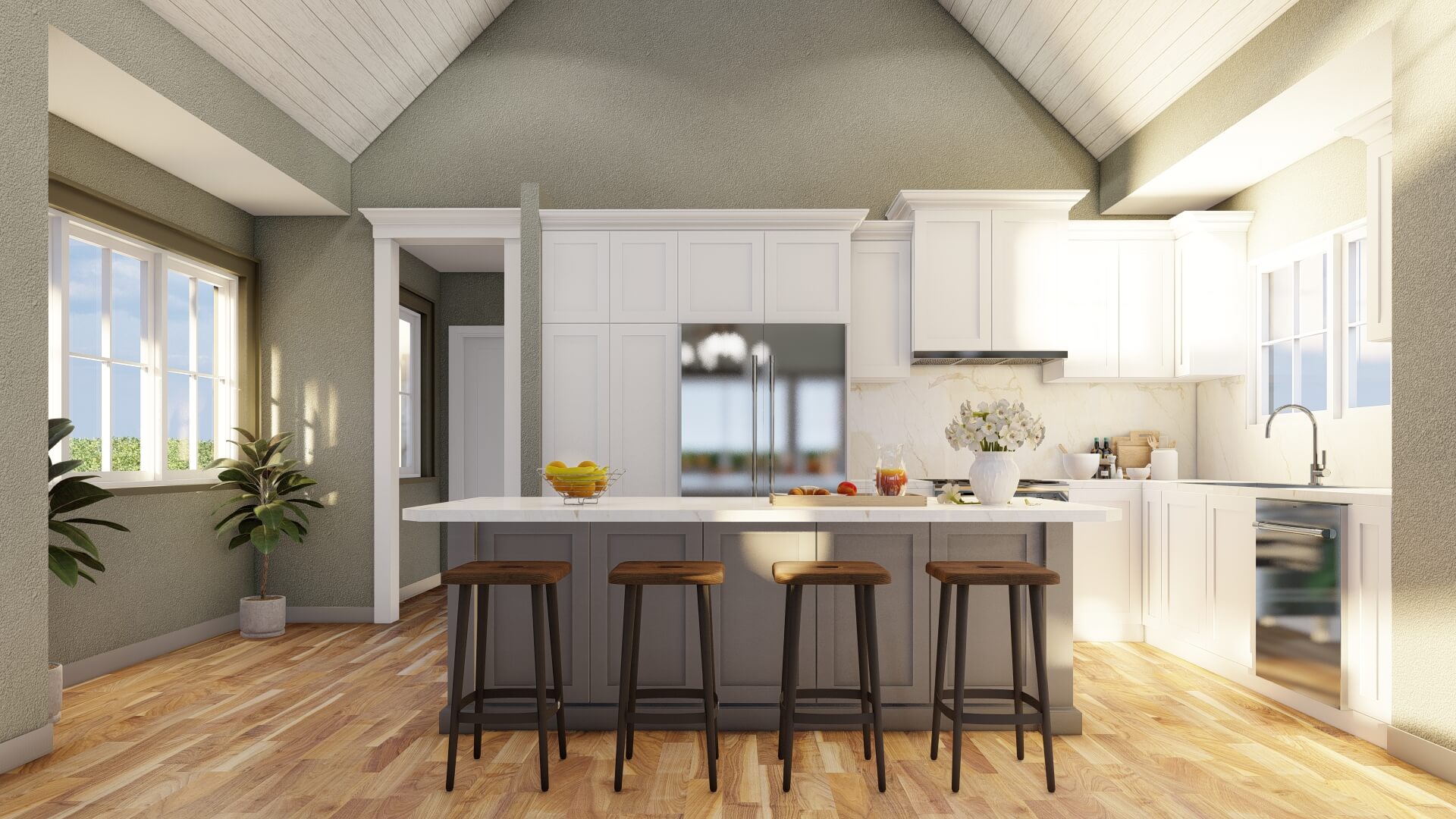

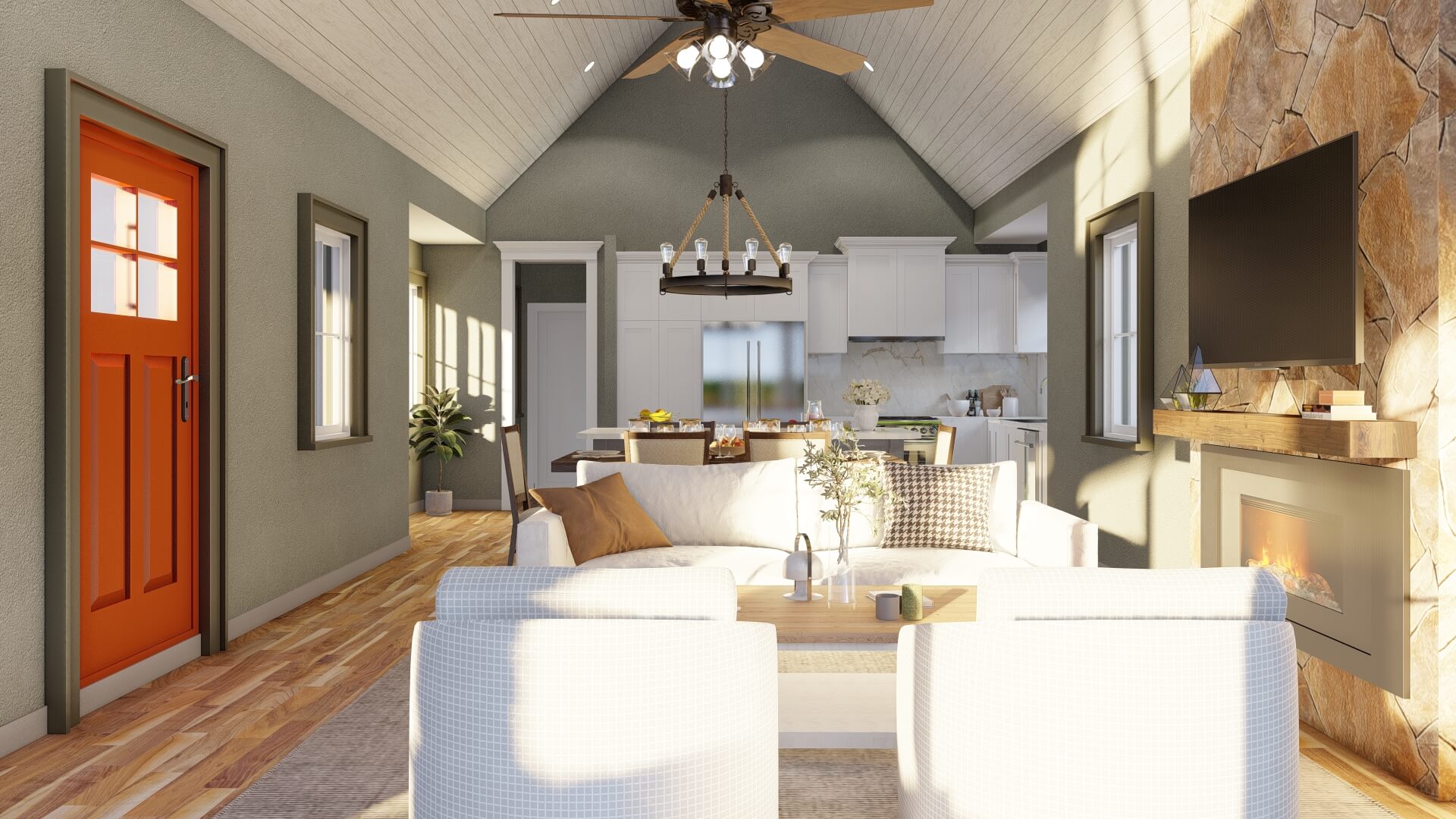

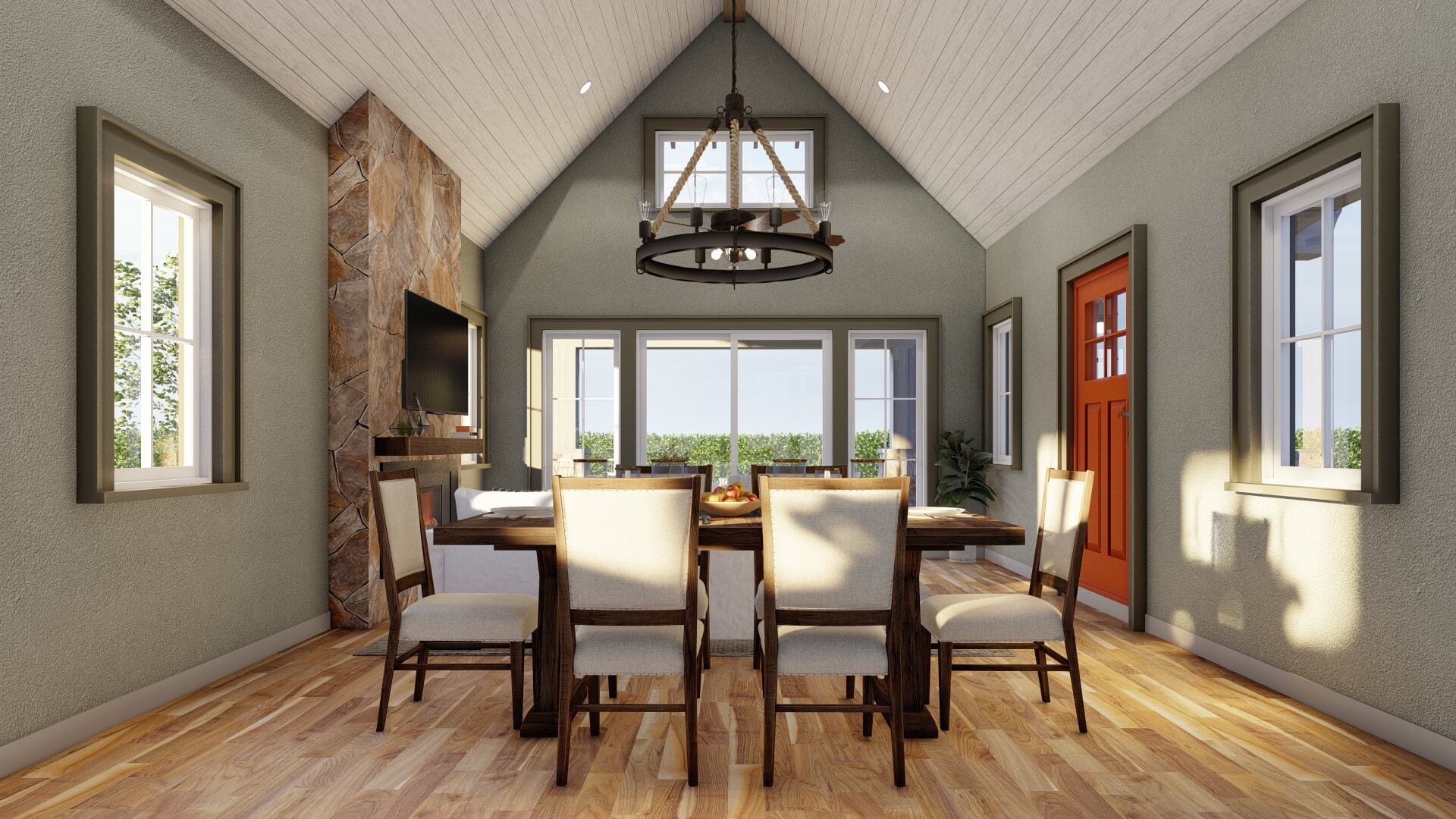

This rustic home is featured in the exclusive Michael E. Nelson collection. Stone and timber columns can be found on the covered front porch as well as the covered grilling porch. This cozy home has an open floor plan complete with a large great room and dining area combination with fireplace and a spacious kitchen featuring a high bar. The hall outside the master suite contains a half bath for guests. Character is added to the master bedroom with transom windows. You will also find a lavish walk-in closet, a master bath with a corner glass shower, and access to the laundry room.


  • Total Living Space:1008Sq.Ft.
  • Main Floor: 1008 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 147 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1155 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 2:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
