House Plan 5208 Marshall Place, Farmhouse House Plan

House Plan MEN 5208 Main Floor
House Plan MEN 5208 Main Floor

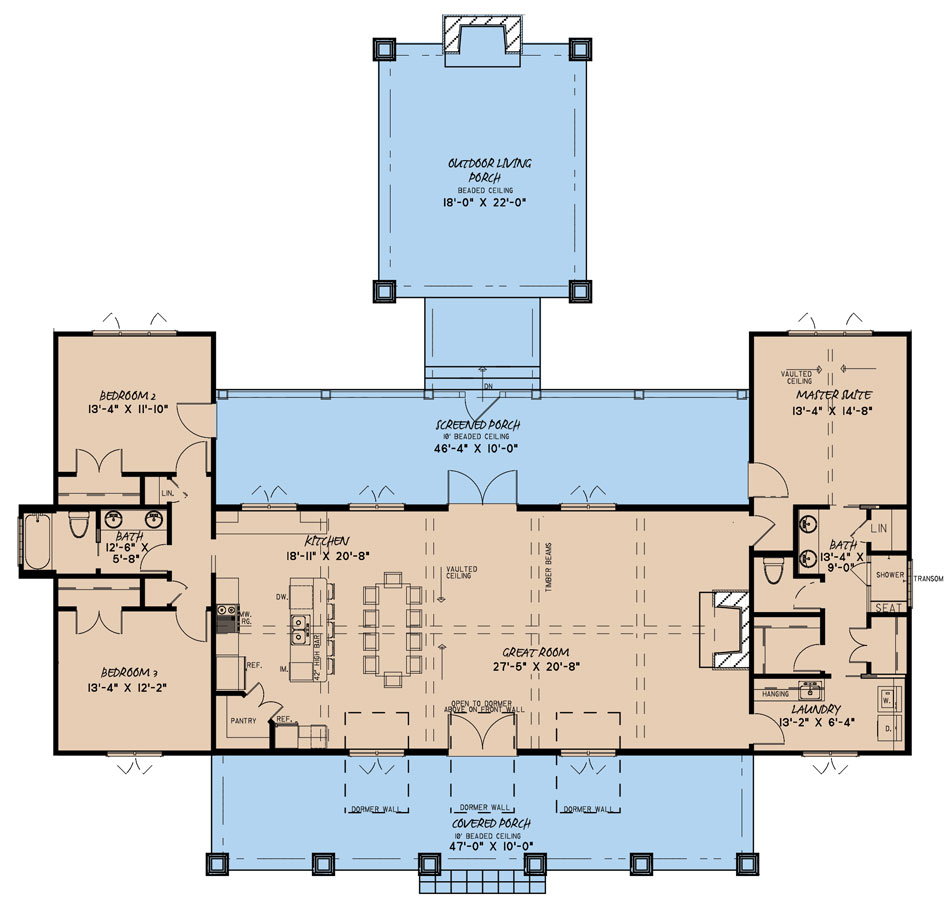

Floor plans

MEN 5208

House Plan 5208 Marshall Place, Farmhouse House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: MEN 5208
  • Total Living Space:2050Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 74
  • Width In.: 4
  • Depth Ft.: 74
  • Depth In.: 7


MEN 5208

Plan Description

This warm, rustic farmhouse-style house plan comes from our award-winning designer, Michael E. Nelson. Marshall Place is a gloriously open 2,050 sq.ft. with three bedrooms and 2 baths. A soft slate-gray shake siding exterior and farmhouse beam-columns adorned with stone accents mark this blue-roofed country beauty as a visual delight. Front and rear casement windows open wide to generously soak in the surrounding natural lighting. Marshall Place features a large screened porch for easy relaxation and a covered outdoor living area with a fireplace to while away the cool evenings with great company.

Through the Front Door

Stepping up to the front door, you begin on the 47-foot covered porch. Large rustic-inspired columns accented with stone line the length of the porch for an added measure of privacy. Through the French front doors, you step into the open floor plan Great Room. The three dormers cast stunning natural light throughout this expansive open space. Much of our Marshall Place living area house plan is dedicated to entertaining, closeness, and family time.

Epitome of Open Floor Plans

Marshall Place highlights all the best features wanted in an open floor plan. Exposed timber beams and a vaulted ceiling ensures the grand openness is unhindered by unnecessary dividing walls. To the right, the Great Room features a generous fireplace. Spend cool evenings with family, friends, or even alone in front of this warm, pleasant fireplace. On the opposite side of the Marshall Place house plan is the kitchen and dining area. The dining area is perfectly-sized to accommodate even a 10-setting dining table in full view of your crackling fireplace. The kitchen houses a large high-low island for additional counter space cooking preparation and bar-seating for another five family members and guests. A spacious chef’s pantry nestled in the kitchen corner provides easy shelf-storage and extra counter space again. To the left of this plan is access to Bedroom 2, Bedroom 3, and the full bath. To the right is the Master Suite and the Laundry room.

Bedrooms To Grow In

From the Kitchen rear on the left side of the Marshall Place house plan you will find Bedroom 2, Bedroom 3, and the full bath. Turning into this side of the home, you will see the entry to the full bathroom directly ahead. This double vanity bathroom is adjacent to both Bedroom 2 and Bedroom 3 and features a full shower/bath. For added storage, two linen closets can be found outside the full bath on each side. Easily store fresh towels and bedding in one and household supplies in the other! Following to the rear of the home, Bedroom 2 overlooks the back of the property with a broad window. Bedroom 2 has outdoor access onto the screened rear porch. This room is ideal for older children and family! A roomy step-in closet allows for plenty of clothing storage. Heading towards the front of the Marshall Place floor plan, you will step into Bedroom 3. This bedroom has front-facing windows and is slightly larger than Bedroom 3. A step-in closet and easy access to the bathroom makes this a perfect family home.

Master Suite and Master Bath

The rear of the Great Room gives way to the Master Suite. The vaulted ceiling and exposed beams continue from the Great Room and Kitchen into the Master Suite for exceptional design aesthetic. A grand rear-facing window overlooks the backyard and Outdoor Living Area. Side entry onto the screened porch allows for late evening and early morning relaxation without the hassle of bugs. Your Master Bath connects to the Master Suite leading towards the front of this house plan. Beginning with the double vanity, this Master Bath offers a luxuriously large linen closet to organize your necessities. The linen closet shares a wall with your enclosed shower making it incredibly simple to grab a fresh towel each morning. A private, enclosed toilet provides absolute privacy while still allowing your significant other to occupy the bathroom space as needed. Continuing through the Master Bath to the front of the home leads to two separate closets. An expansive walk-in closet and a very spacious step-in closet will mean no more arguing over shared spaces! The closet area walks into the full Laundry Room. With additional counter space, hanging storage, and a wash sink, the Laundry Room has all the amenities needed to keep the chore from being a bore!

Outdoor Living

Wide French doors open onto the 46-foot screen porch from the rear of the Great Room and Kitchen. Such a large screen porch encourages fresh air breaks and outdoor socializing. Step down into the Outdoor Living Area to embrace the brisk breeze and warm in front of the outdoor fireplace. This area is covered and spacious for long nights and great company.

Customizing This House Plan Making this house plan onto your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experienced house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.


  • Total Living Space:2050Sq.Ft.
  • Main Floor: 2050 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1403 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 3453 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
