Plan Details

  • Plan Number: MEN 5241
  • Total Living Space:2358Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 1.5
  • Width Ft.: 54
  • Width In.: 5
  • Depth Ft.: 74
  • Depth In.: N/A


Plan Description

This lovely craftsman house plan is perfect for the growing family. Evoking memories of the classic craftsman bungalows of the early 20th century, this showstopping home design from award winning designer Michael E. Nelson is sure to make you feel at home. This plan gives you just over 2,300 square feet of living space with 3 bedrooms, 2 full baths and 1 half bath. Blending the traditional with the modern, you will find an open floor plan combining a large kitchen with the great room and dining spaces as well as a lovely covered porch on the rear of the home.

Curb Appeal

As you approach the home, the first thing that you notice is that this home gives you all of the external elements of a traditional craftsman bungalow home design. With stocky columns supporting the roof of the covered porch and wide stone steps leading up to the front door, this home takes you right back to the turn of the last century.

Open Floor Plan

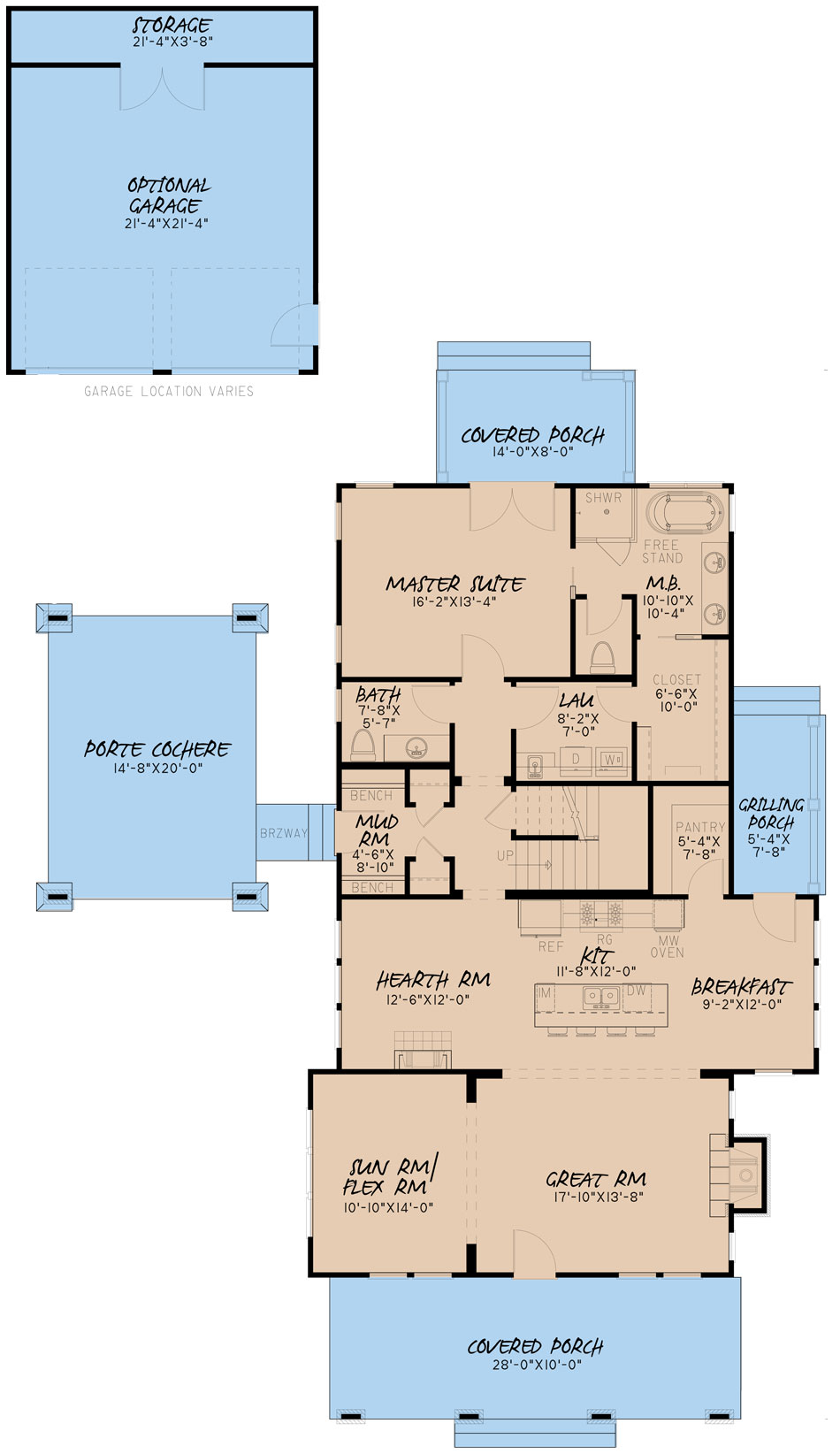

Entering the home, you find yourself in the great room. This is part of a sprawling open floor plan that includes the great room, kitchen and dining areas. The great room gives you a welcoming feeling as soon as you enter the home. The great room features a large fireplace along the right wall that is flanked on either side by single windows and a double window that faces the front of the home.

To the left of the great room is a sunroom that can be used as a flex space. This would be perfect for an office or as part of a formal dining area. This room features a large opening into the great room and a long bank of windows looking out over the left side of the home as well as a double window that looks over the front of the home.

Large Kitchen Space

Just through the great room is the open area that includes the kitchen, breakfast nook and hearth room. The kitchen is set up in a very traditional design with a line of cabinets along the rear wall of the space and an island that faces the great room. This is perfect for a family because the kitchen island gives you a sink and counter space that make it perfect for cleaning up after a meal and letting you keep an eye on the comings and goings in the great room.

Cozy Up

The hearth room is on the left side of the kitchen and gives you 3 windows that face the left side of the home and a fireplace along the forward-facing wall of the space. The breakfast room on the other side of the space mirrors the hearth room with the 3 windows facing the right side of the home and a single window on the forward-facing wall of the space. It also has an entry that leads out to the grilling porch on the side of the home. Don’t forget about the large pantry just behind the kitchen that gives you plenty of space for even the largest shopping trip!

Plenty of Storage Space

This home doesn’t have an attached garage, but it does feature an attached car port or porte cochere. This car port enters the home through a breezeway and opens directly into the mud room. This space gives you plenty of storage with benches and hanging room on either side of the entry way and closets just inside the home. This mudroom lies between the open floor plan that makes up the front of the home, or public areas, and the master suite that makes up the rear of the home, or private areas.

Life's Little Messes

Moving further into the home, you will find the half bath and laundry room directly across the hall from each other. The half bath gives you a single window that looks out over the left side of the home. The laundry room has plenty of hanging space and features a small soaking sink to help get rid of some of those tougher stains.

Spacious Master Suite

The master suite lies on the rear of the home and gives you plenty of room for you and your significant other to cuddle. The master suite features two windows that face the left side of the home and 1 that faces the rear of the home. The master bedroom also gives you a private entry to the covered porch on the rear of the home. The master bath features a large corner shower, a freestanding tub and a double vanity while the master closet opens up into the laundry room.

Room to Grow

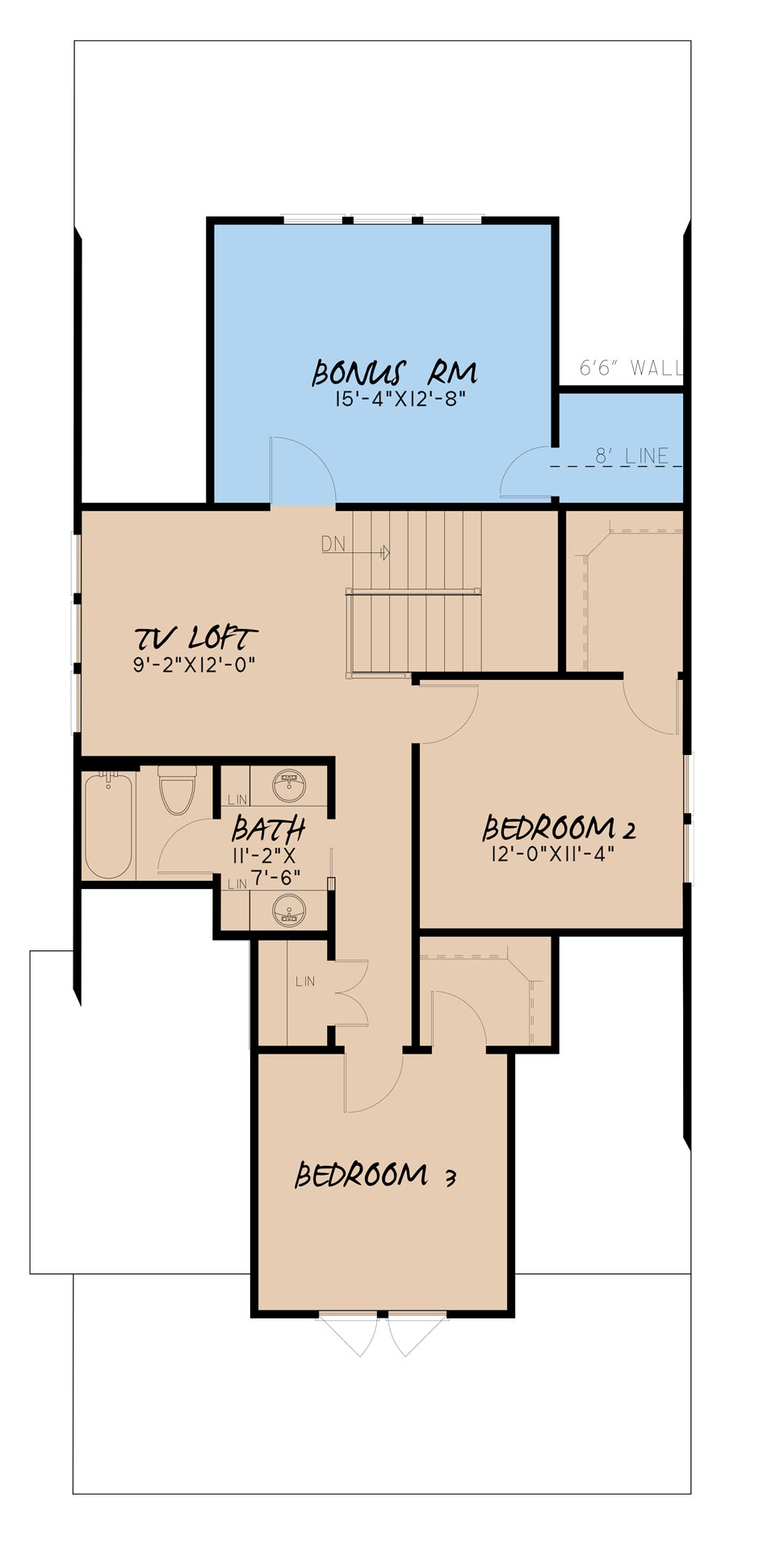

On the second floor you will find bedrooms 2 and 3. At the head of the stairs you find yourself in a large space that makes up a TV loft. This is perfect to allow the little ones to have their own space to watch their shows, so you don’t have to watch the latest kid movie until you know the dialog by heart. (I’m looking at you, Elsa.) This space features 3 windows that look out over the left side of the home.

Bedroom 2 has two windows that look out over the right side of the home while Bedroom 3 gives you two windows that look over the front of the home. Both bedrooms have small walk in closets and share the hall bathroom that features a double vanity that is separated from the main bathing area.

Customizing This House Plan Making this house plan onto your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experience house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.


  • Total Living Space:2358Sq.Ft.
  • Main Floor: 1674 Sq.Ft
  • Upper Floor (Sq.Ft.): 684 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 238 Sq.Ft.
  • Porch (Sq.Ft.): 462 Sq.Ft.
  • Garage (Sq.Ft.): 572 Sq.Ft.
  • Total Square Feet: 3923 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • House Plan Options
