House Plan 549B Madison Drive, French Traditional House Plan


Floor plans

NDG 549B

House Plan 549B Madison Drive, French Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 549B
  • Total Living Space:2189Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 58
  • Width In.: N/A
  • Depth Ft.: 69
  • Depth In.: 6

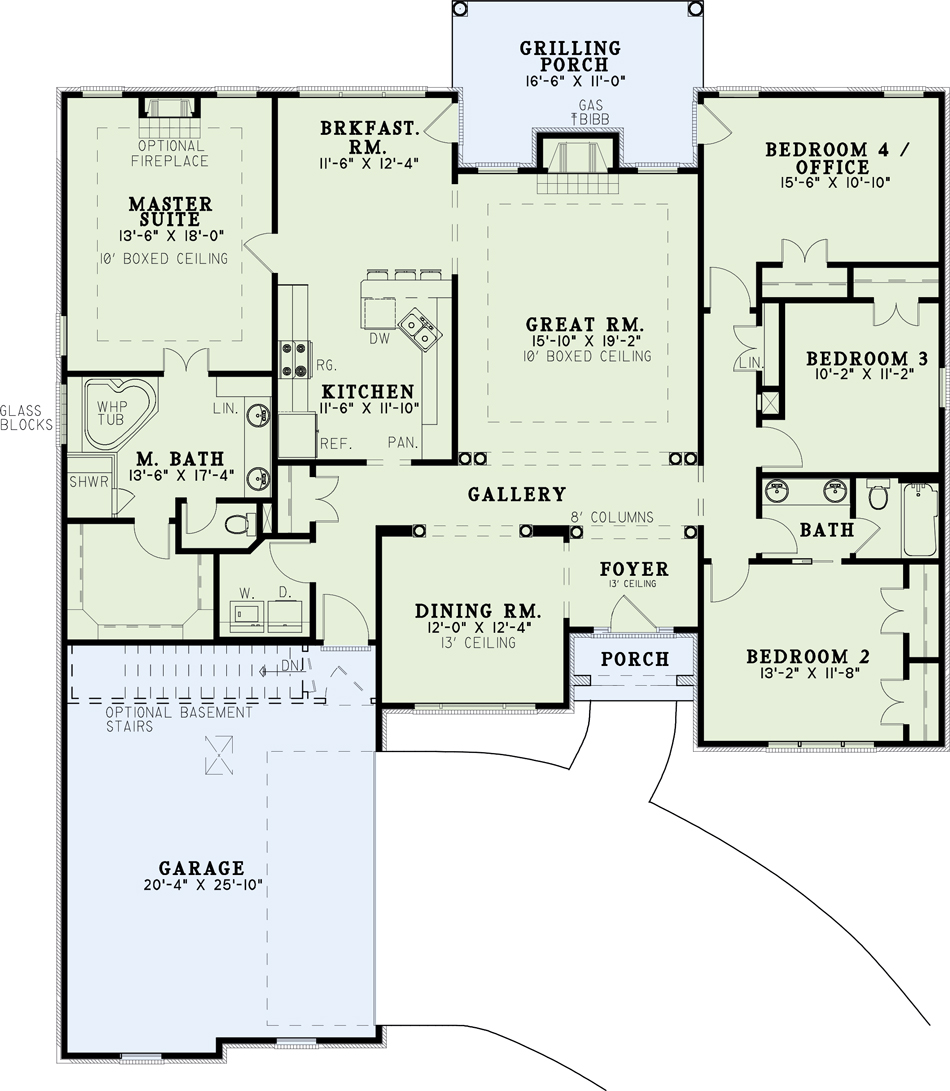

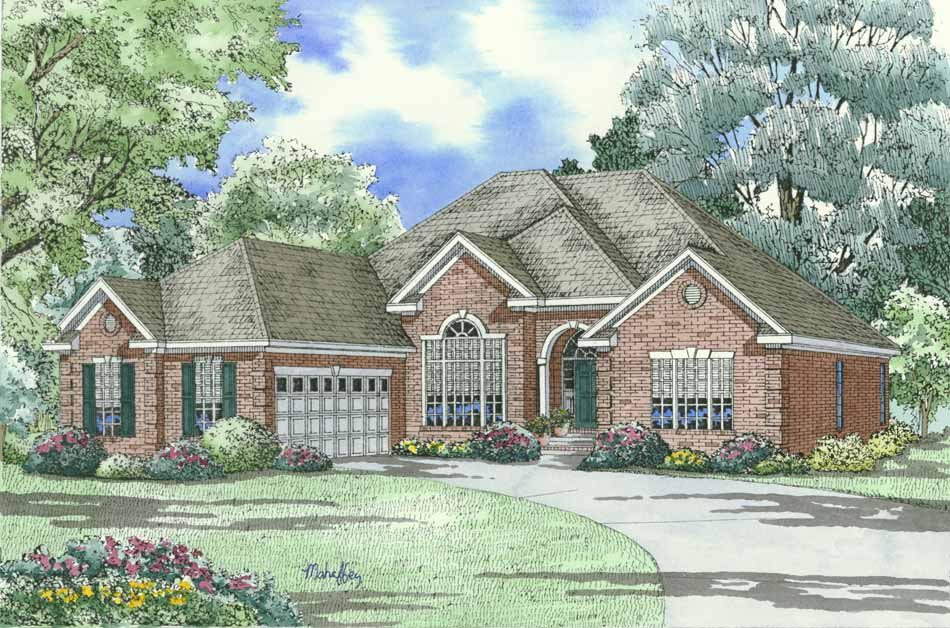

This exceptional home has a arched entry porch and exterior options for your perfect setting. High ceilings and eight-inch columns are used throughout the family areas including a formal dining room and expansive great room with boxed ceiling and cozy fireplace. A well-designed kitchen with bar seating and plenty of storage adjoins the breakfast room accessing a rear-grilling porch. The private Master suite has an optional fireplace and luxurious bathroom including a large walk-in closet and corner whirlpool tub. One of the three additional bedrooms makes for a perfect home office or library.


  • Total Living Space:2189Sq.Ft.
  • Main Floor: 2189 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 225 Sq.Ft.
  • Garage (Sq.Ft.): 550 Sq.Ft.
  • Total Square Feet: 2964 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
