House Plan 569 Thomas Road, Country Home House Plan

House Plan NDG 569 Main Floor
House Plan NDG 569 Main Floor

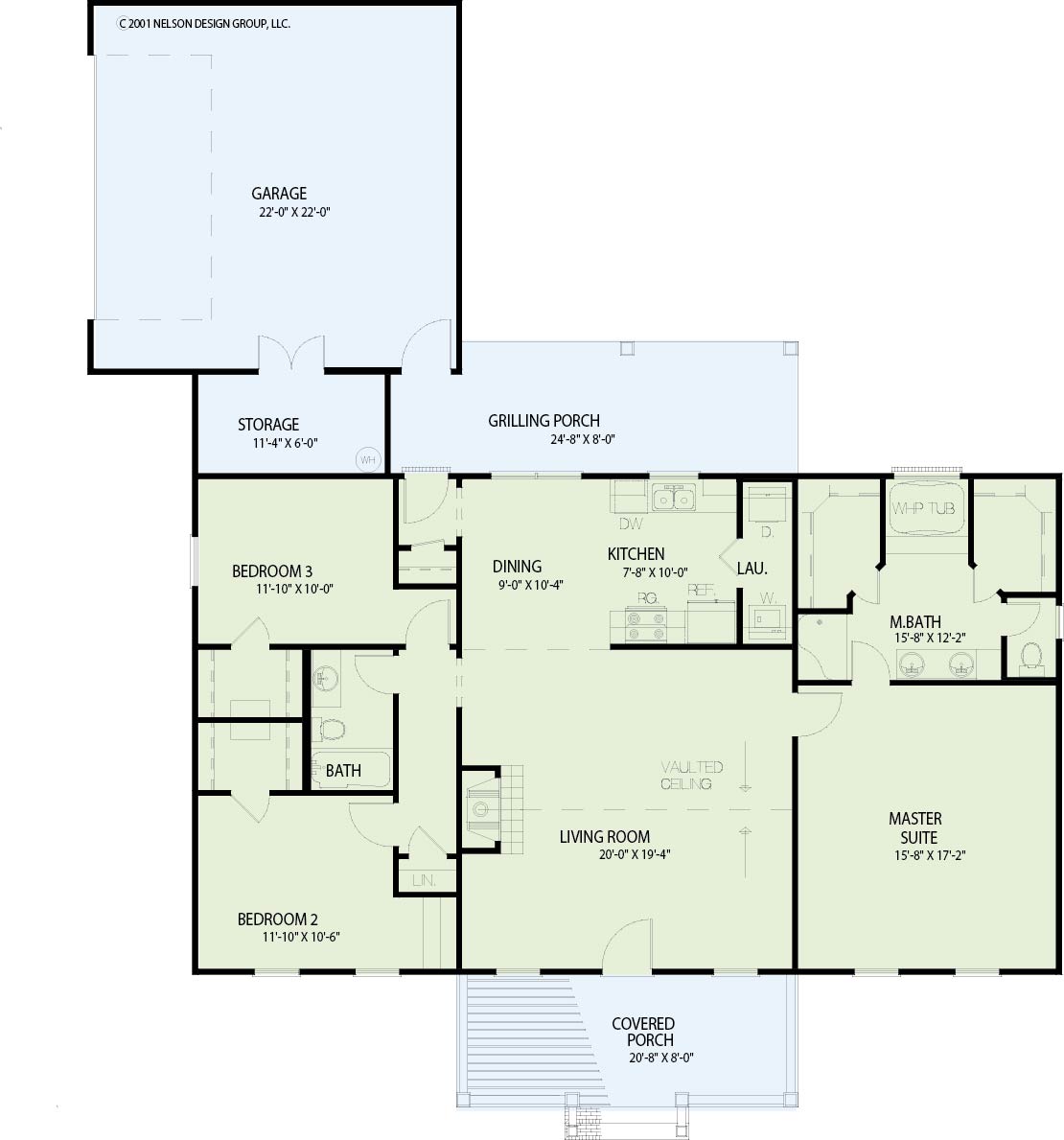

Floor plans

NDG 569

House Plan 569 Thomas Road, Country Home House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 569
  • Total Living Space:1597Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 59
  • Width In.: N/A
  • Depth Ft.: 67
  • Depth In.: N/A


This country home offers a covered front porch with columns begging to be adorned with garland at Christmas. The vaulted ceiling living room hosts a bountiful tree beside the fireplace where stockings are carefully hung. The kitchen reminiscent of a luscious dinner lovingly served in the dining room amidst family and friends. The children lay nestled in their rooms with walk-in closet and shared full bath access. The master bath invites you into the whirlpool tub to relax as you await the arrival of Christmas morn.


  • Total Living Space:1597Sq.Ft.
  • Main Floor: 1597 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 354 Sq.Ft.
  • Garage (Sq.Ft.): 585 Sq.Ft.
  • Total Square Feet: 2536 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 19
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
