House Plan 697 Chestnut Lane, Traditional House Plan

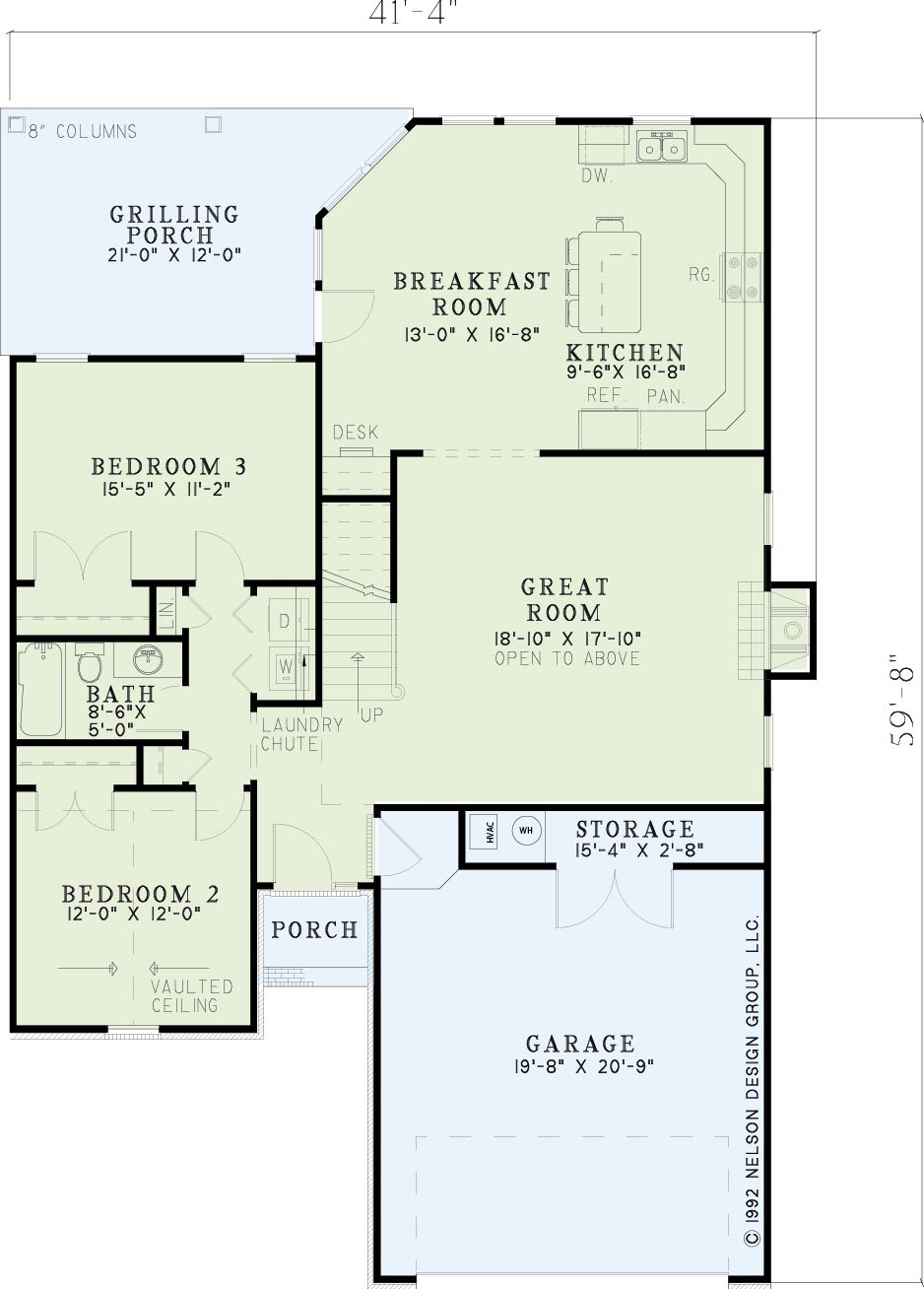

House Plan NDG 697 Main Floor

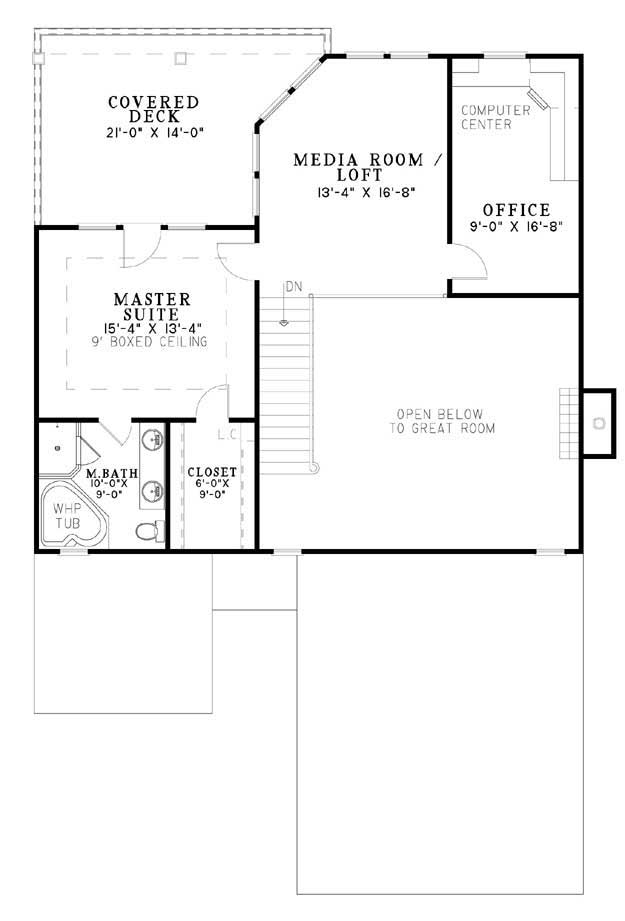

House Plan NDG 697 Upper Floor

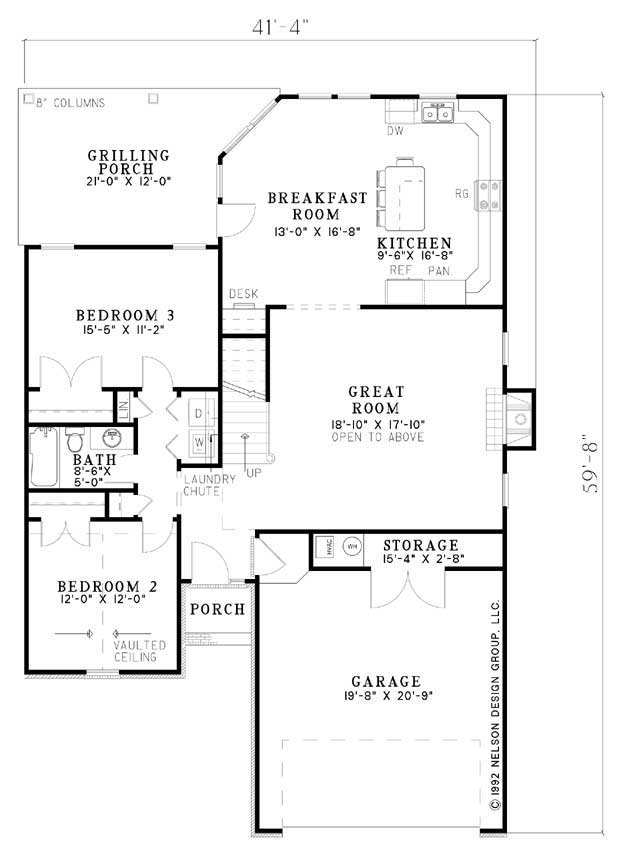

House Plan NDG 697 Main Floor

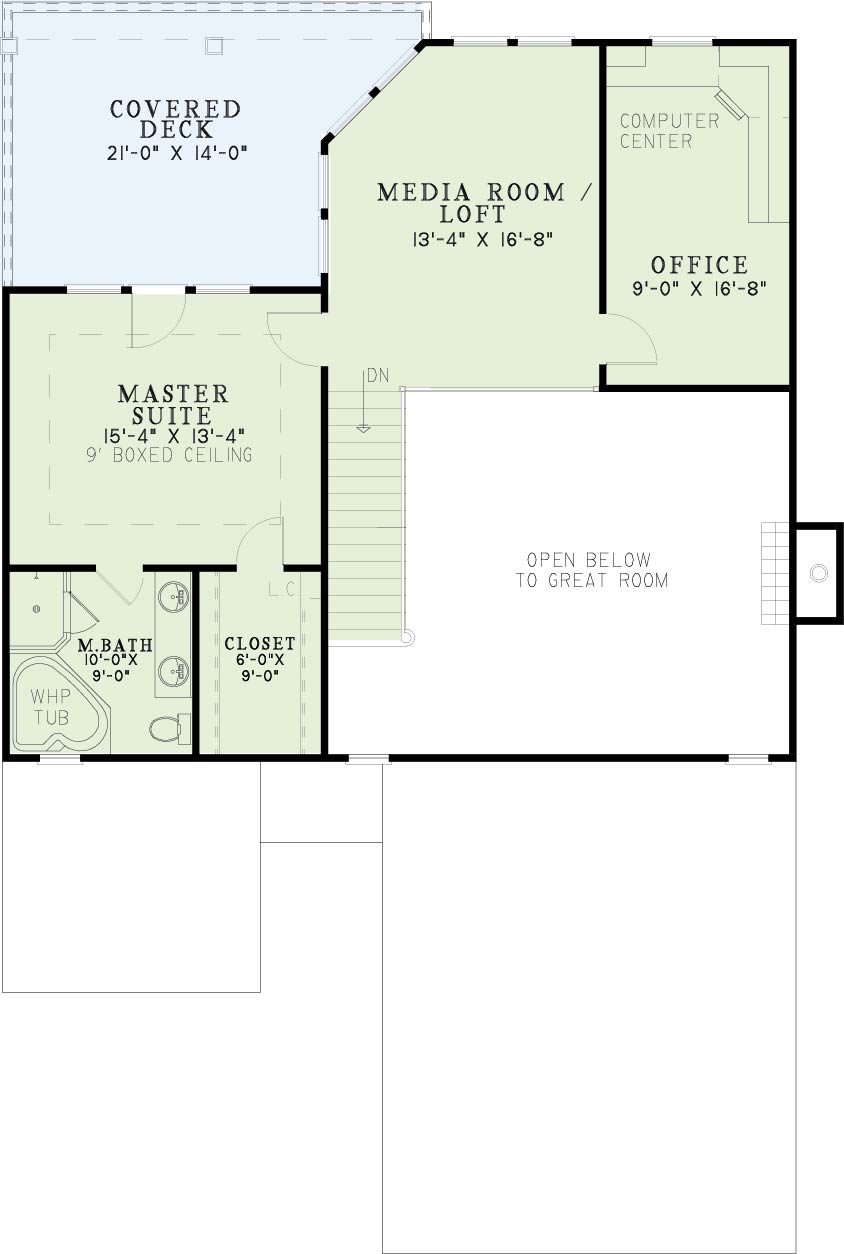

House Plan NDG 697 Upper Floor

Floor plans

NDG 697

House Plan 697 Chestnut Lane, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 697
  • Total Living Space:2114Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 41
  • Width In.: 4
  • Depth Ft.: 59
  • Depth In.: 8


This contemporary style home features a brick and siding exterior with a 2-car, front-loading garage. The spacious garage is open to the loft above and features a fireplace. The kitchen is open to the breakfast room, offering tons of counter space and an eat-at island bar and a convenient desk in the corner. A rear grilling porch is also off of the breakfast room. 2 bedrooms are on the left side of the house with a full bath in between them. Upstairs you'll find the media room/loft that overlooks the great room and a convenient office. And the master suite will welcome you with its own private covered deck and a huge walk-in closet, while the master bath features a corner shower, double vanities and a large whirlpool tub to help take your stress away.


  • Total Living Space:2114Sq.Ft.
  • Main Floor: 1350 Sq.Ft
  • Upper Floor (Sq.Ft.): 764 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 226 Sq.Ft.
  • Garage (Sq.Ft.): 489 Sq.Ft.
  • Total Square Feet: 2829 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
