House Plan 713 Emery Lane, Country Home House Plan
Floor plans
NDG 713
House Plan 713 Emery Lane, Country Home House Plan
Plan Details
- Plan Number: NDG 713
- Total Living Space:2179Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: 1
- Garage: Yes 2 Bay
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 62
- Width In.: 10
- Depth Ft.: 66
- Depth In.: N/A
Description

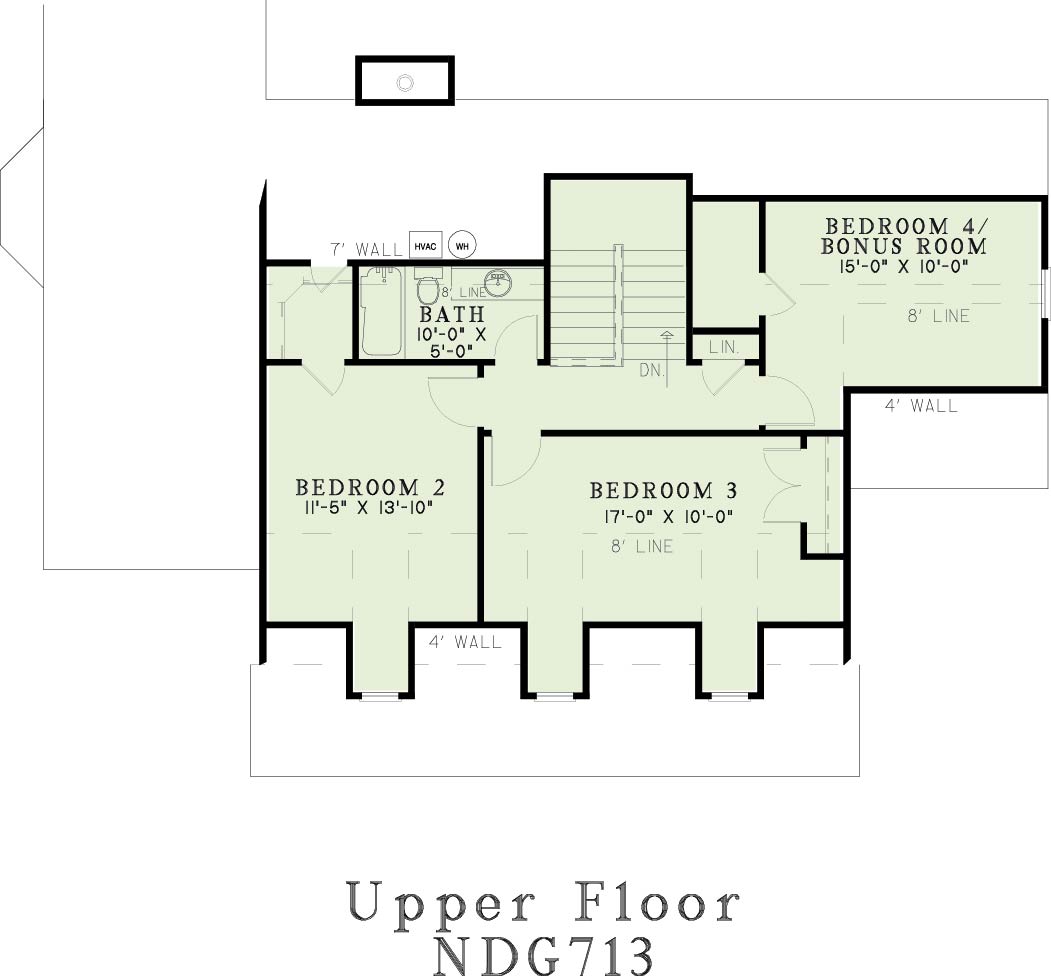

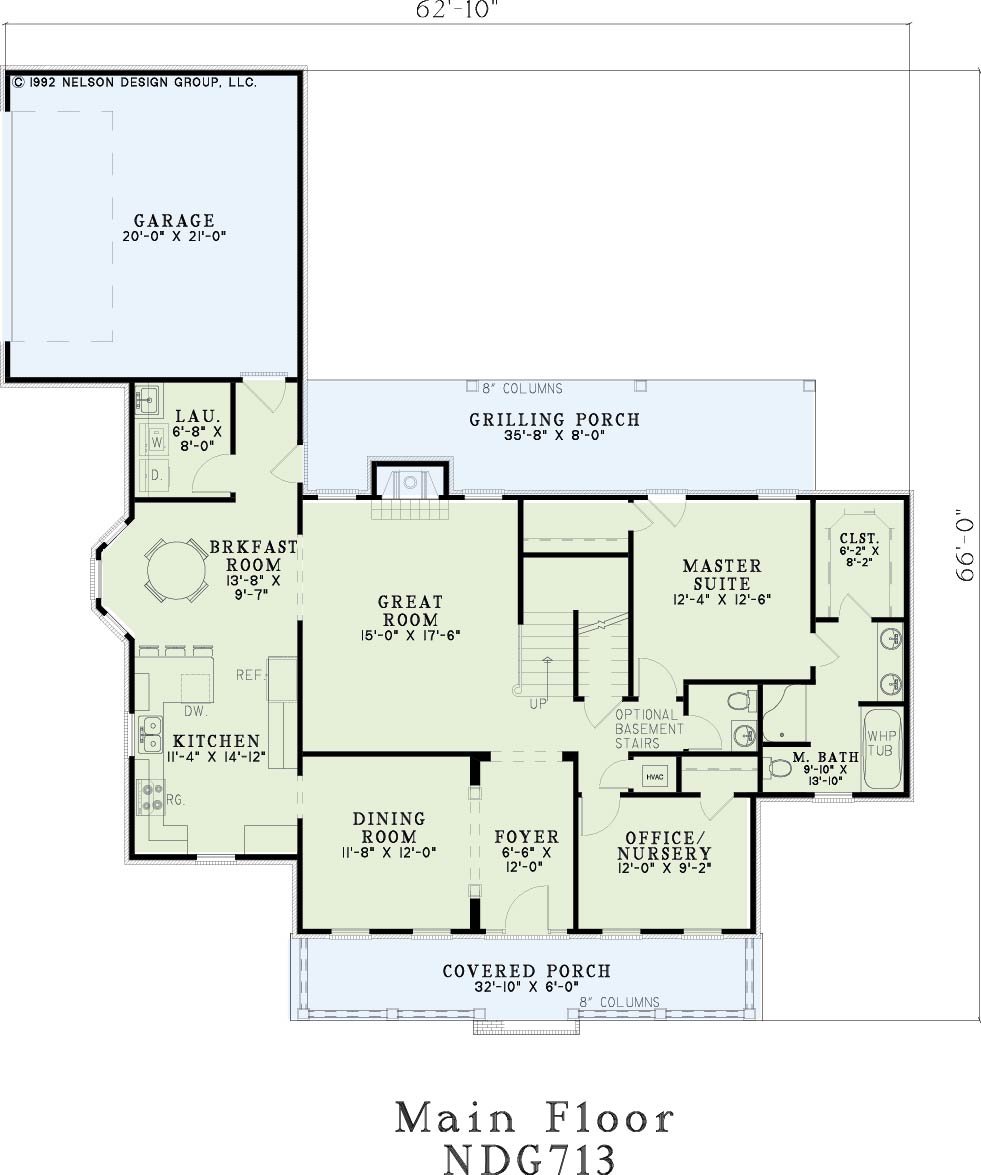

The charming front porch will welcome friends and family into your home. Step into the Foyer and head to the Dining Room or into the Great Room to enjoy the cozy fireplace. In the Kitchen you'll find a Breakfast Room perfect for informal meals as well as a small eat-at bar. On the other side of the Great Room is the Master Suite complete with a walk-in closet and spacious Master Bath. On this side of the home you'll also find a 1/2 Bath and the Office/Nursery. Head upstairs where Bedroom 2, 3 and 4 are located as well as a Hall Bath.
Specifications
- Total Living Space:2179Sq.Ft.
- Main Floor: 1603 Sq.Ft
- Upper Floor (Sq.Ft.): 576 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): 199 Sq.Ft.
- Porch (Sq.Ft.): 476 Sq.Ft.
- Garage (Sq.Ft.): 440 Sq.Ft.
- Total Square Feet: 3294 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: 3:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 24
- Ridge Height (In.): 2
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
