House Plan 727 Bluegrass Meadow, Farmhouse House Plan

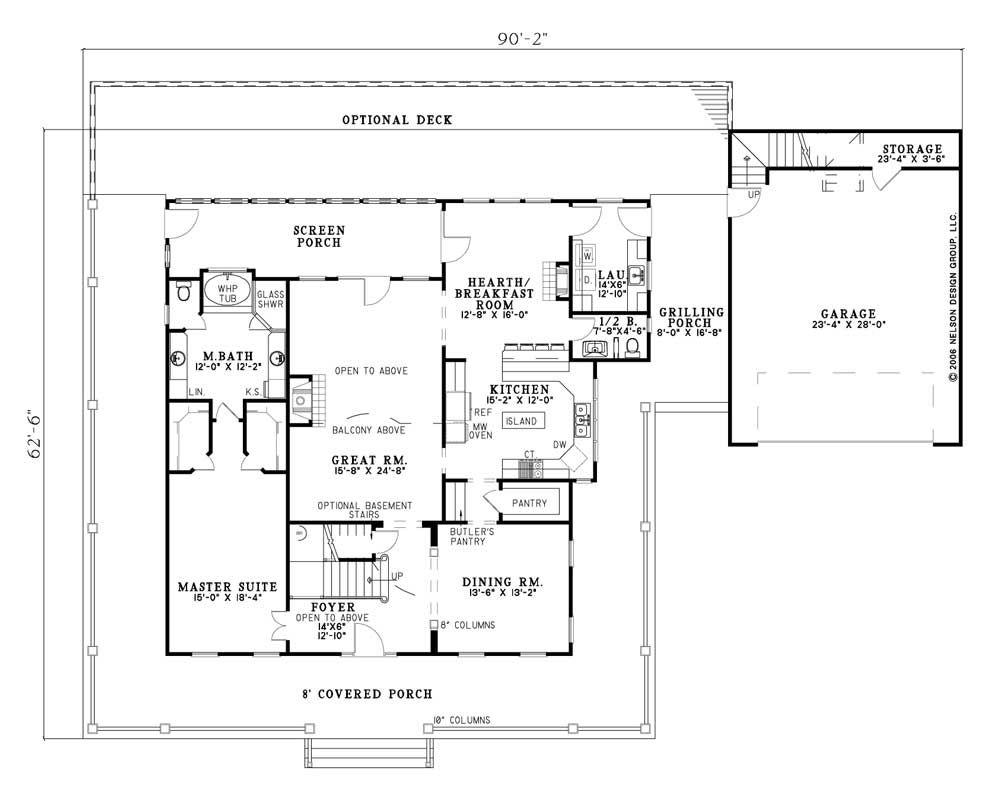

House Plan NDG 727 Main Floor

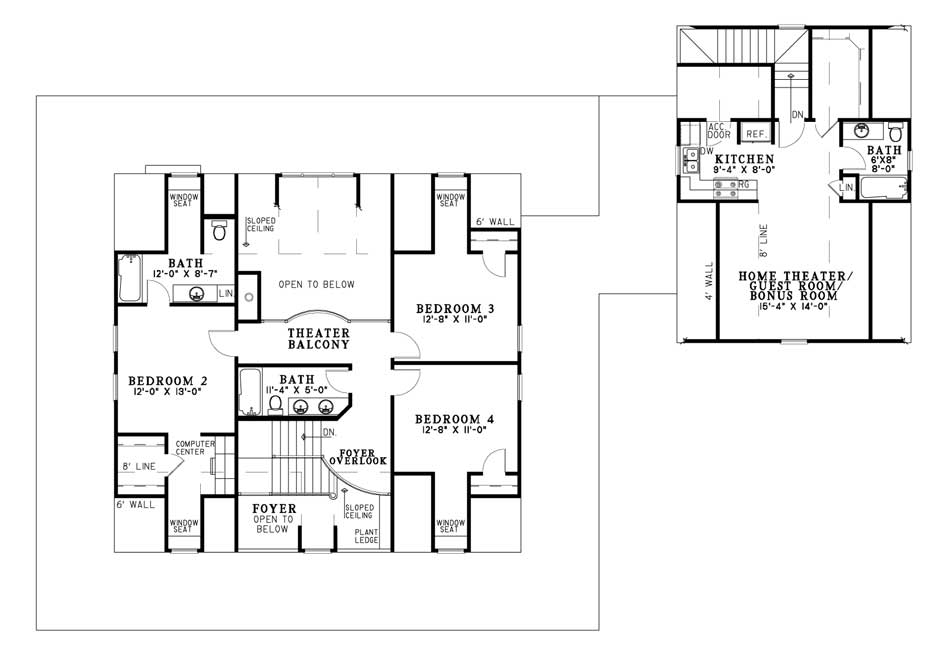

House Plan NDG 727 Upper Floor

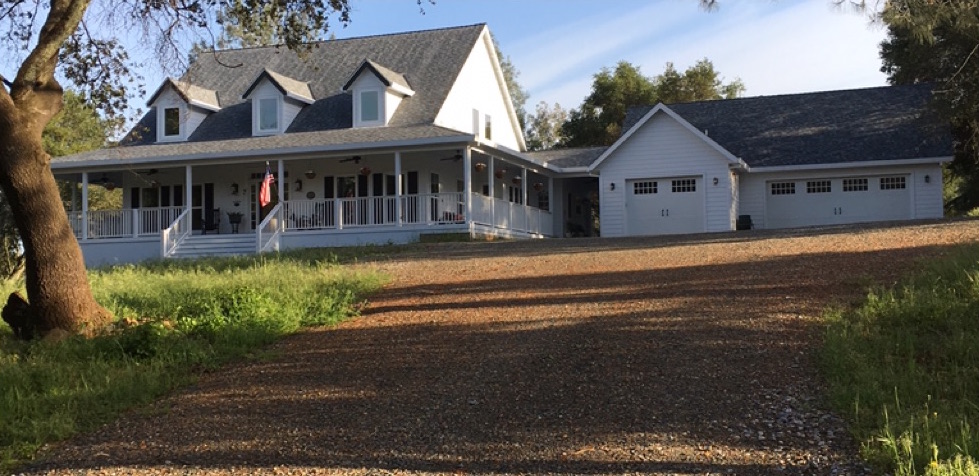

House Plan - yoshimura727R>

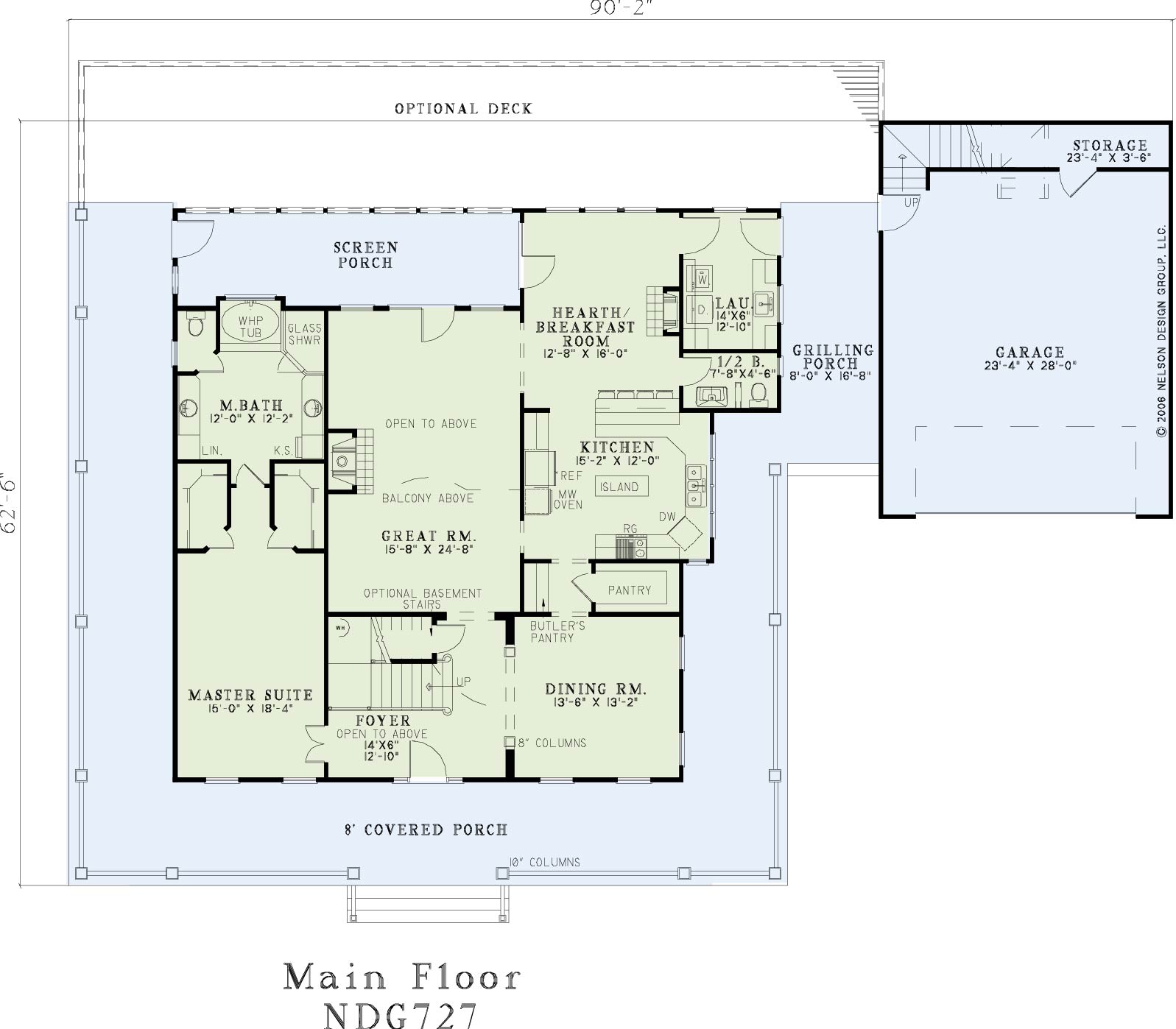

House Plan NDG 727 Main Floor

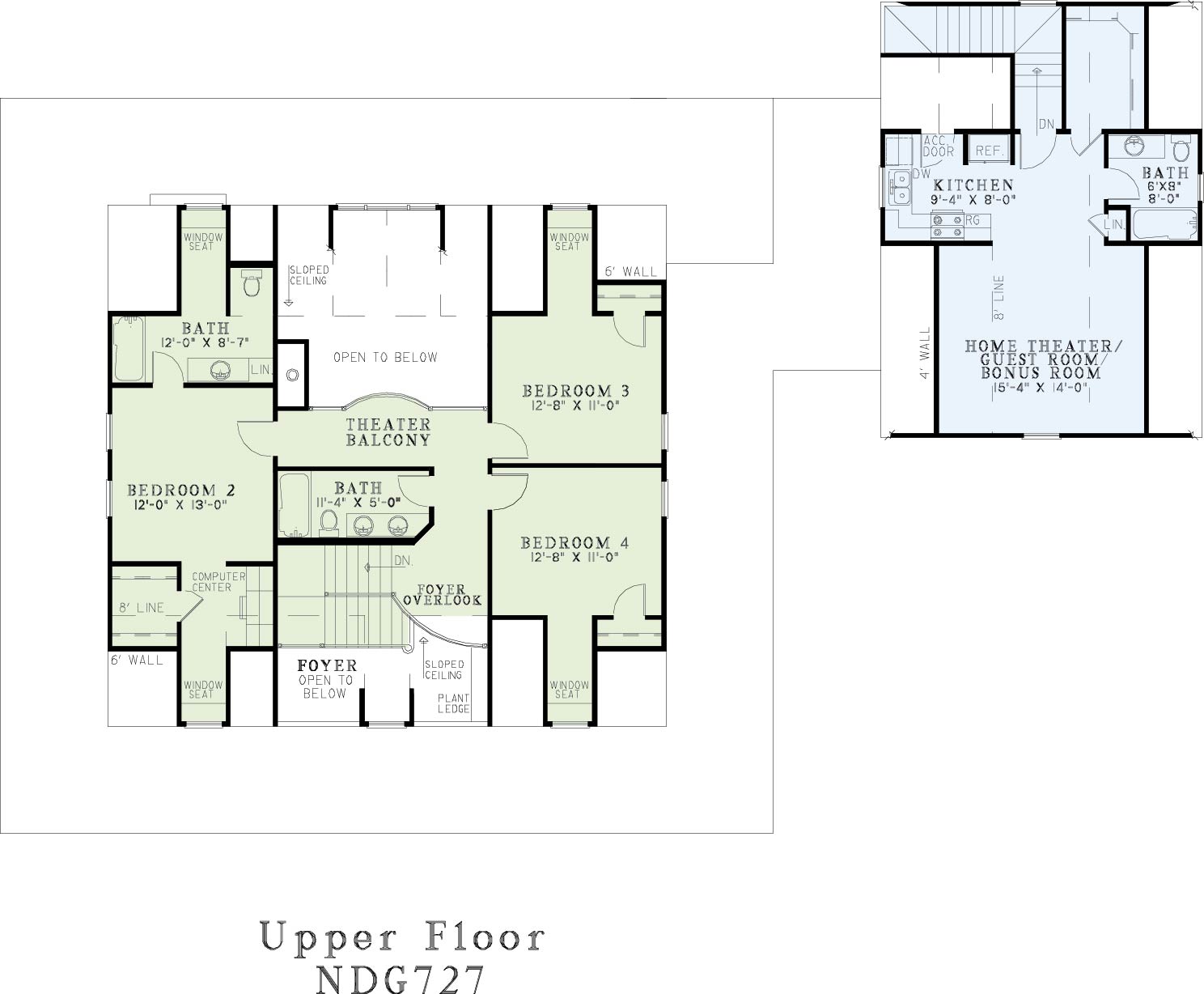

House Plan NDG 727 Upper Floor
House Plan - yoshimura727R

Floor plans

NDG 727

House Plan 727 Bluegrass Meadow, Farmhouse House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 727
  • Total Living Space:2889Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 4
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 90
  • Width In.: 2
  • Depth Ft.: 62
  • Depth In.: 6


This charming country style house plan will welcome family and friends with the lovely Wrap Around Porch. Welcome guests into the Foyer of your home where you can head to the Great Room where you can enjoy hours of conversation in front of the cozy fireplace. The conversation can continue in the Kitchen with an attached Hearth/Breakfast Room. The Kitchen has a convenient island for extra counter space as well as a walk-in pantry and butler's pantry leading into the Dining Room. After entertaining you can retire to the spacious Master Suite to relax or have a soothing soak in the whirl pool tub in the Master Bath. The kids can head upstairs where Bedrooms 2, 3 and 4 are located. Bedroom 2 even has its own bathroom and computer center. There is even a Guest Suite located above the Garage to allow your guest plenty of privacy when coming to stay in your home.


  • Total Living Space:2889Sq.Ft.
  • Main Floor: 1894 Sq.Ft
  • Upper Floor (Sq.Ft.): 995 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 450 Sq.Ft.
  • Porch (Sq.Ft.): 1427 Sq.Ft.
  • Garage (Sq.Ft.): 780 Sq.Ft.
  • Total Square Feet: 5546 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
