House Plan 785 Madison Cove, Historical House Plan

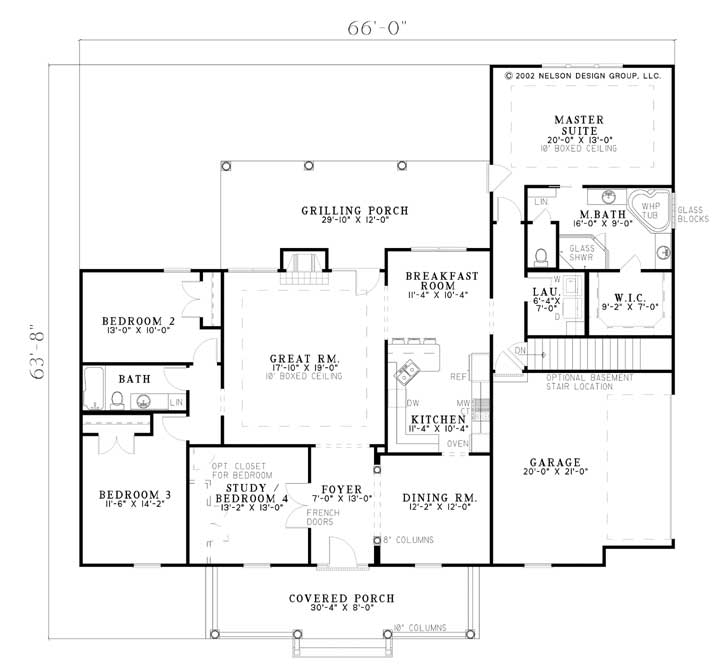

House Plan NDG 785 Main Floor

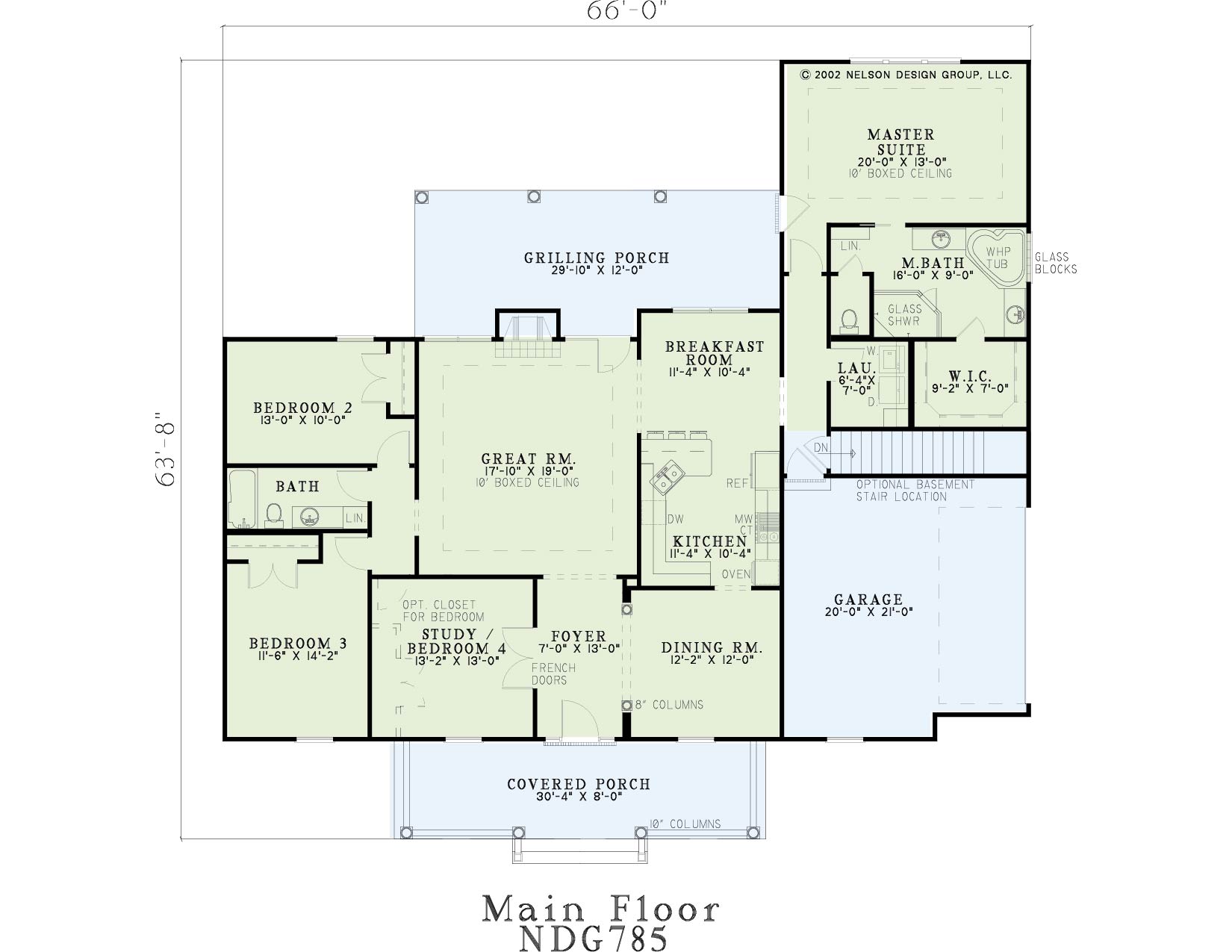

House Plan NDG 785 Main Floor

Floor plans

NDG 785

House Plan 785 Madison Cove, Historical House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 785
  • Total Living Space:2246Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 66
  • Width In.: N/A
  • Depth Ft.: 63
  • Depth In.: 8


Exterior details on this Historical Nelson Design Group home add character to this stately, symmetrical design. Upon entering the foyer, French doors lead to an optional study where privacy awaits and antique furniture can be showcased. While the formal dining room enhanced with elegant columns leads to the well-equipped kitchen. The Breakfast room separates the master suite quarters from the additional bedrooms and has an optional basement stairway next to the garage entry. Retire to your master suite full of amenities, treat yourself to a soak in the corner whirlpool tub and afterwards enjoy private access to the rear-grilling porch for late night stargazing.


  • Total Living Space:2246Sq.Ft.
  • Main Floor: 2246 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 503 Sq.Ft.
  • Garage (Sq.Ft.): 418 Sq.Ft.
  • Total Square Feet: 3167 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
