House Plan 786 Madison Cove, Historical House Plan

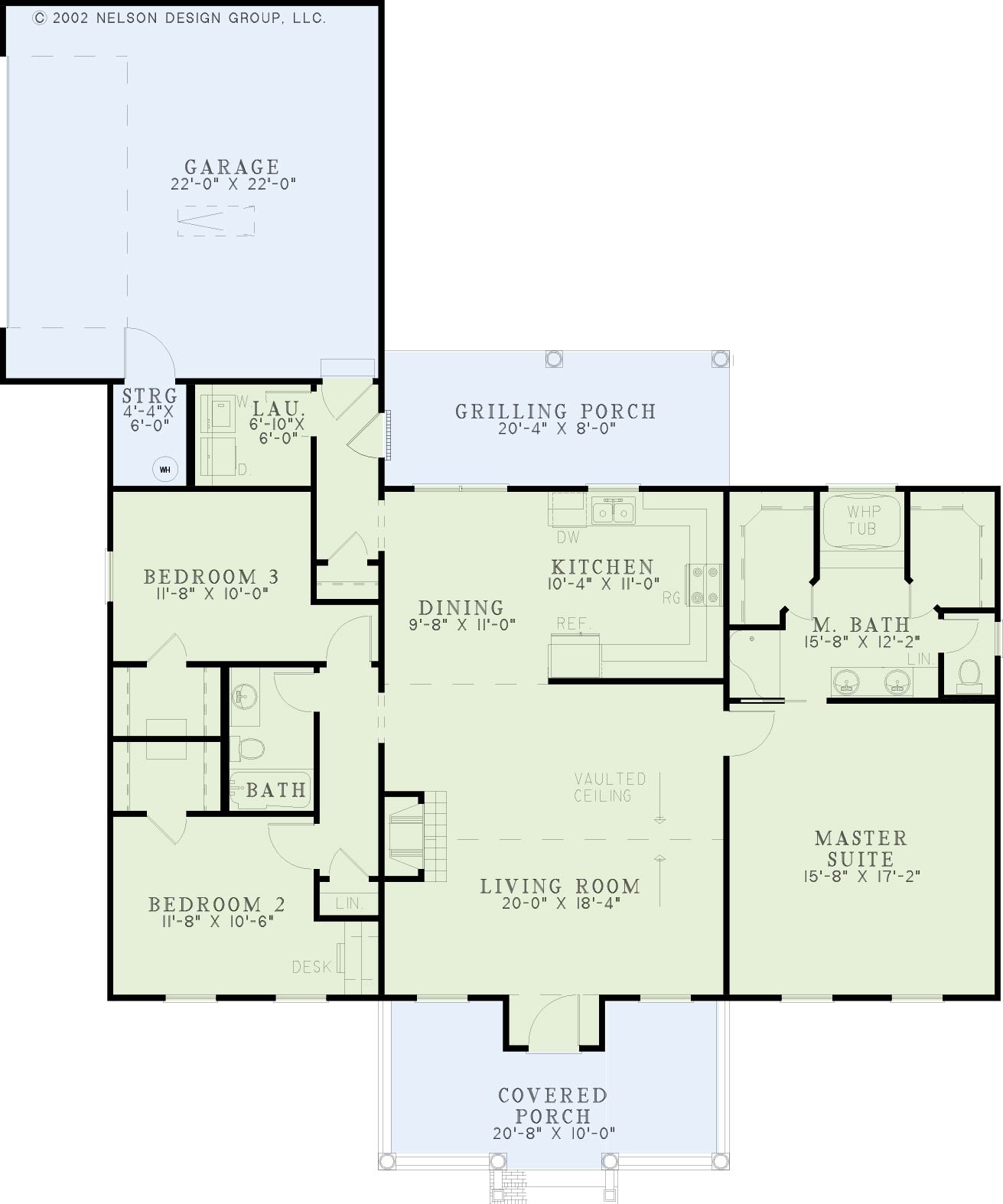

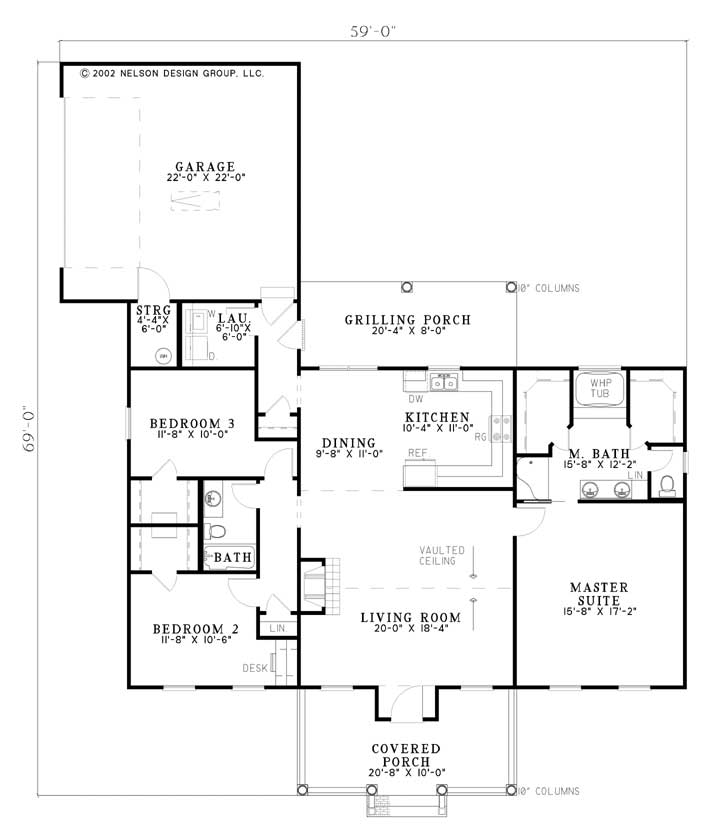

Floor plans

NDG 786

House Plan 786 Madison Cove, Historical House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 786
  • Total Living Space:1683Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 59
  • Width In.: N/A
  • Depth Ft.: 69
  • Depth In.: N/A


Welcome family and friends into this Historical Southern Traditional home by Nelson Design Group. Dormer windows enhance the front of the home while the front porch with columns and railings provides and elegant entry. The expansive great room with vaulted ceiling and cozy fireplace will provide a wonderful atmosphere for visiting with your guests. A U-shaped kitchen provides you ample counter space for preparing dinner while the nearby grilling porch awaits the family chef. This split bedroom design offers privacy for all household members and ample closet space in each bedroom. Enjoy the luxurious master suite and private bath with relaxing whirlpool bath.


  • Total Living Space:1683Sq.Ft.
  • Main Floor: 1683 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 357 Sq.Ft.
  • Garage (Sq.Ft.): 538 Sq.Ft.
  • Total Square Feet: 2578 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
