House Plan 828 Woodland Drive, Stone-And-Brick House Plan

House Plan NDG 828 Main Floor
House Plan NDG 828 Main Floor

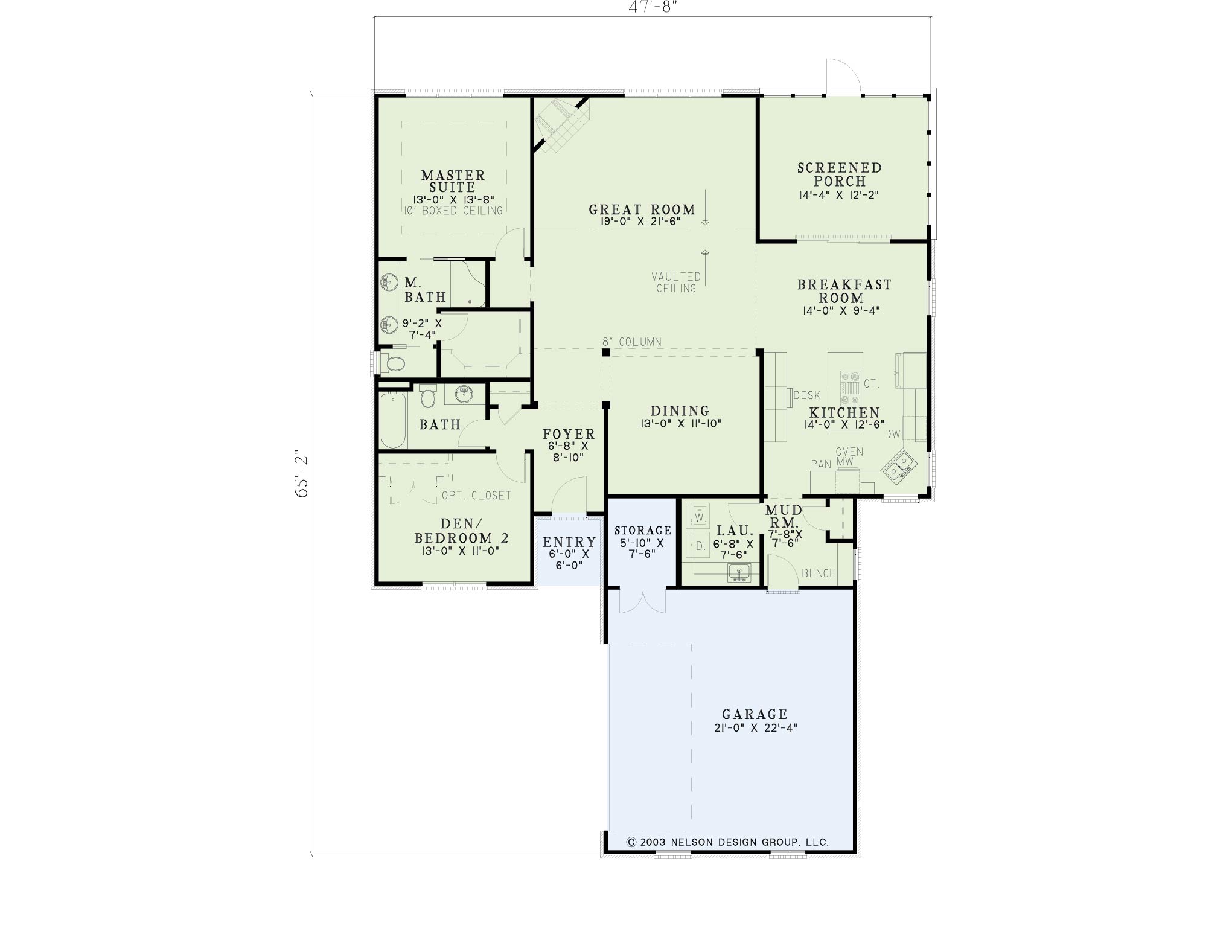

Floor plans

NDG 828

House Plan 828 Woodland Drive, Stone-And-Brick House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 828
  • Total Living Space:1703Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 47
  • Width In.: 8
  • Depth Ft.: 65
  • Depth In.: 2


Natural stone and shutters enhance the exterior of this Nelson Design Group home while a cathedral ceiling in the great room gives the illusion of much more interior space. Both formal dining and breakfast rooms open into the spacious great room and enjoy a view of the cozy corner fireplace. A handy built-in computer center in the kitchen allows family to spend time together cooking and web surfing while a front bedroom/den allows a quiet space for reading. The privately located master suite is enhanced with a tray ceiling while a large walk-in closet in the private bathroom provides extra convenience. A quaint screened porch will be a favorite place for relaxing and entertaining.


  • Total Living Space:1703Sq.Ft.
  • Main Floor: 1703 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 219 Sq.Ft.
  • Garage (Sq.Ft.): 539 Sq.Ft.
  • Total Square Feet: 2461 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
