House Plan 938 Park Street, Midtown Village House Plan

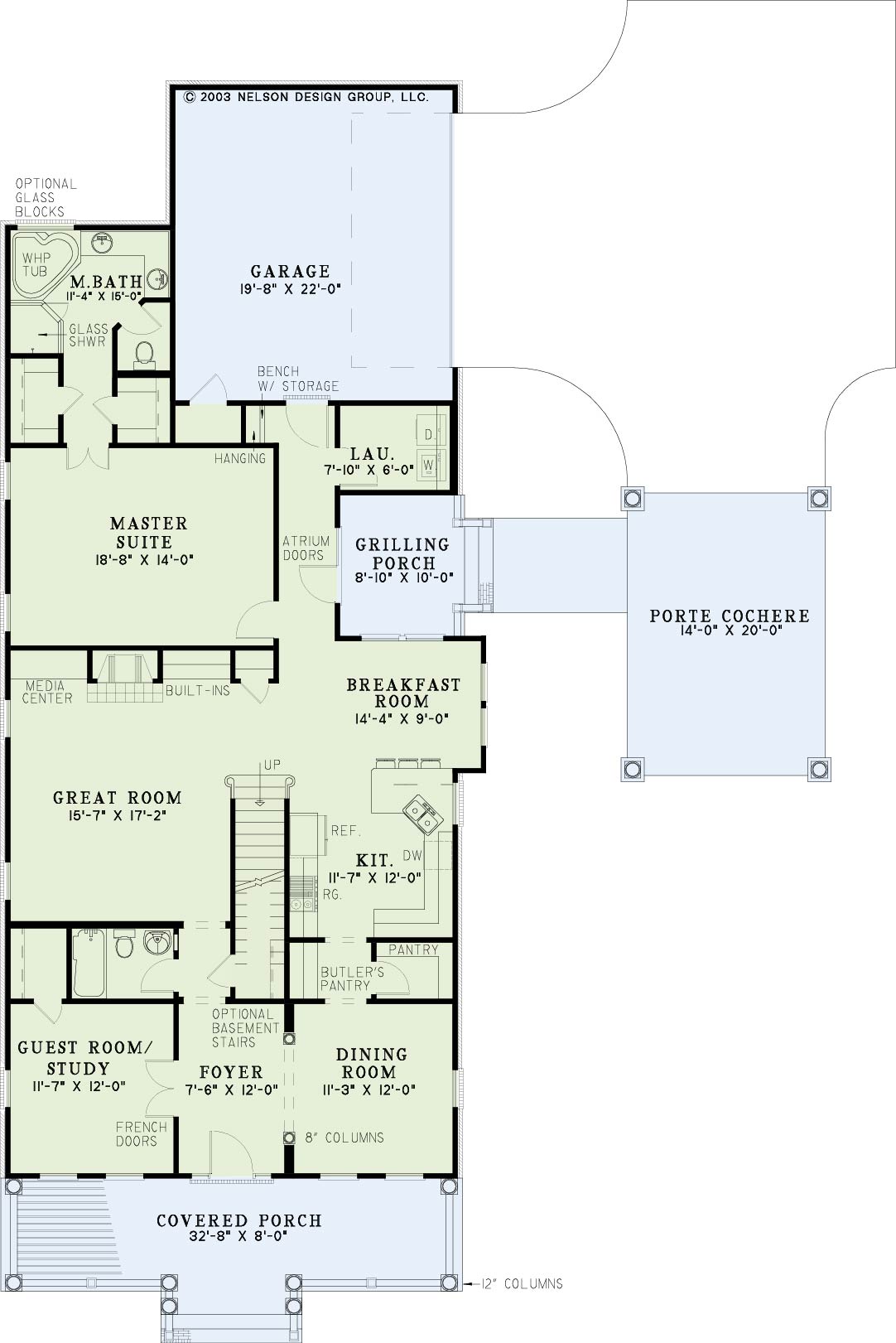

House Plan NDG 938 Main Floor

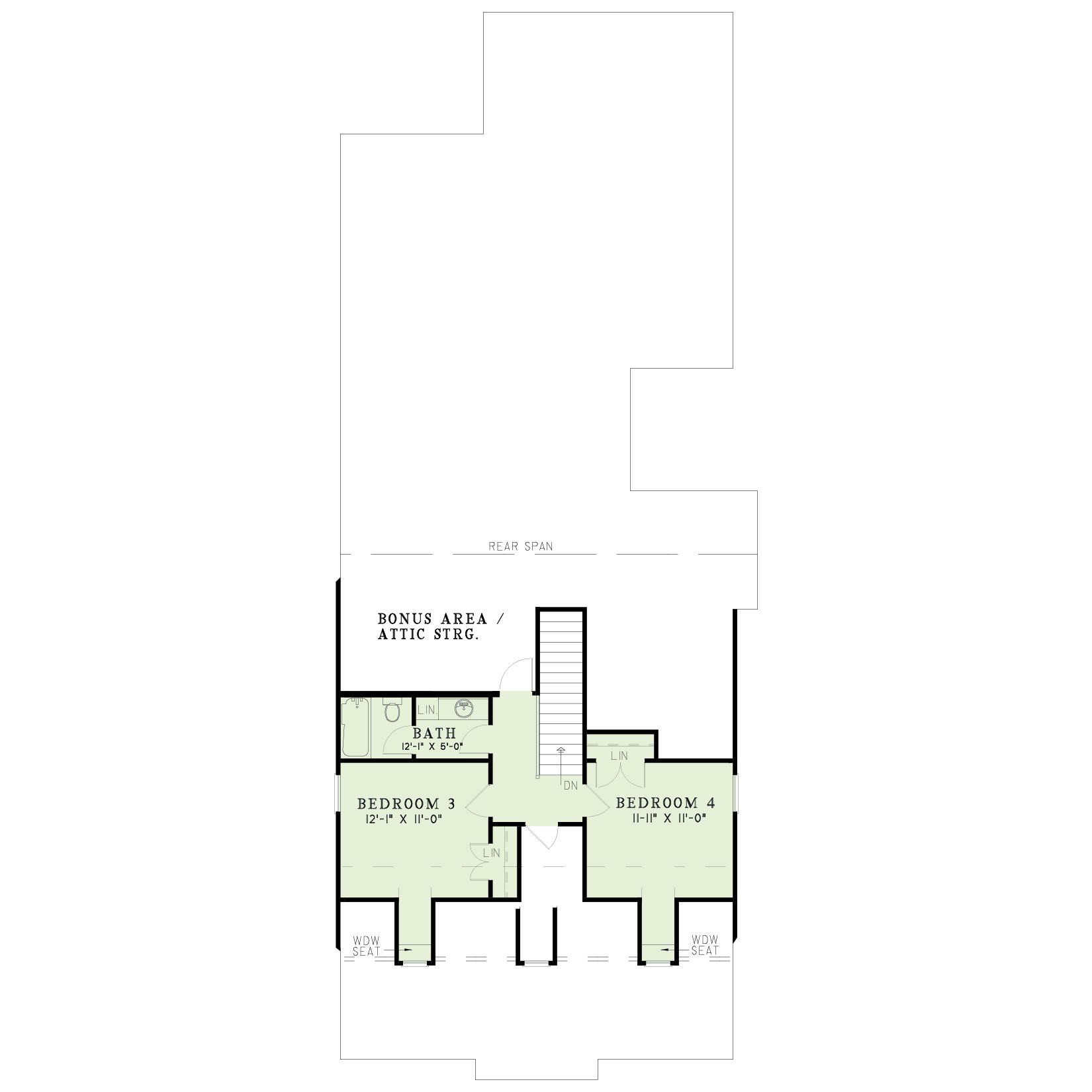

House Plan NDG 938 Upper Floor
House Plan NDG 938 Main Floor
House Plan NDG 938 Upper Floor

Floor plans

NDG 938

House Plan 938 Park Street, Midtown Village House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 938
  • Total Living Space:2286Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 1.5
  • Width Ft.: 58
  • Width In.: N/A
  • Depth Ft.: 85
  • Depth In.: 4

Description

This four bedroom home plan by Nelson Design Group has porches front and rear as well as a timeless porte cochere. The interior has a formal dining room with butler pantry leading to the step saver kitchen and blended breakfast room. The nearby great room has built-in shelves and a media center, perfect for family time. Placed on the main level is the master suite with two walk-in closets and a well-planned bathroom. The upstairs has two bedrooms with dormer window seats and a bonus area.

Specifications

  • Total Living Space:2286Sq.Ft.
  • Main Floor: 1831 Sq.Ft
  • Upper Floor (Sq.Ft.): 455 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 416 Sq.Ft.
  • Garage (Sq.Ft.): 746 Sq.Ft.
  • Total Square Feet: 3448 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
