House Plan 986 Elm Street, Affordable House Plan

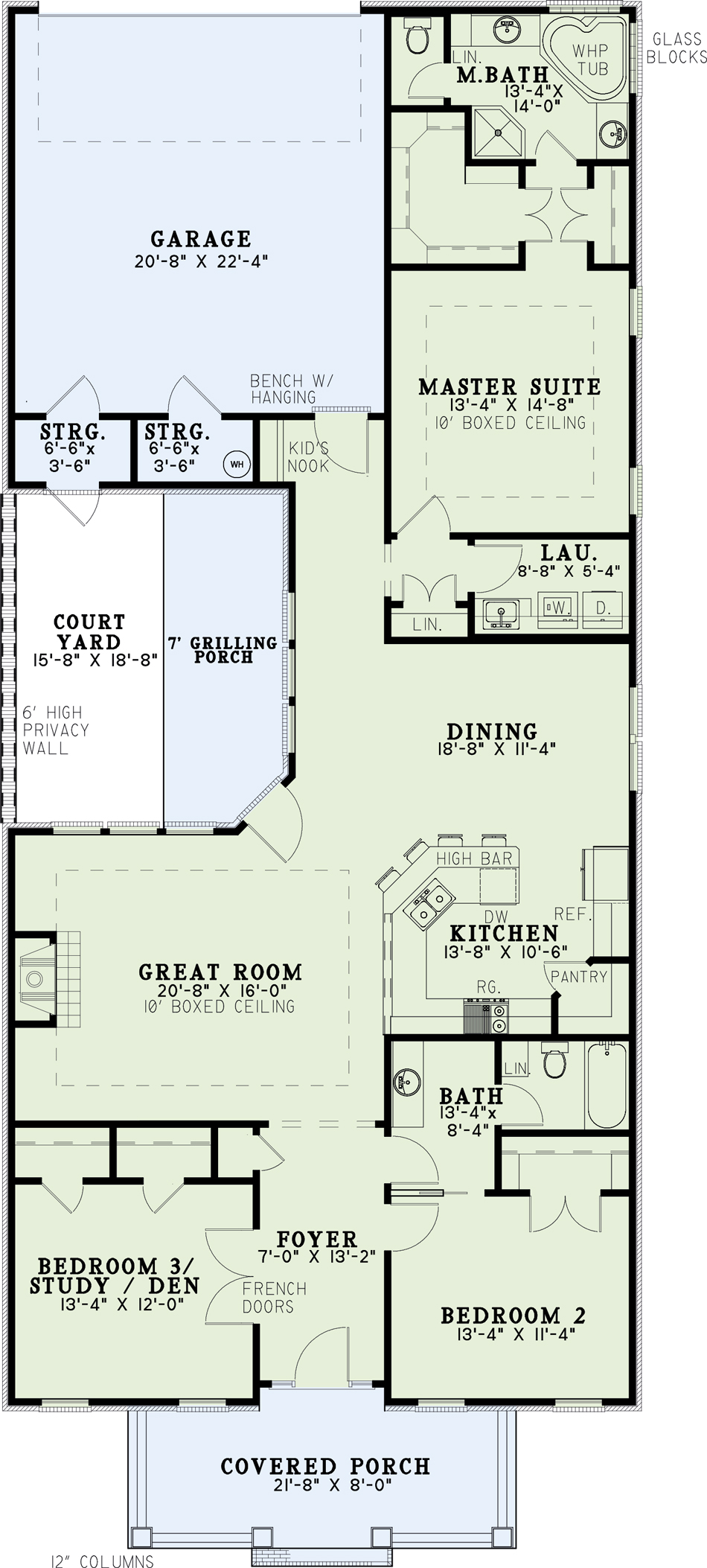

Floor plans

NDG 986

House Plan 986 Elm Street, Affordable House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 986
  • Total Living Space:1895Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 35
  • Width In.: N/A
  • Depth Ft.: 86
  • Depth In.: N/A


Charming columns line the front porch of this lovely Nelson Design Group home. From the foyer, make your way into the great room with fireplace; perfect for fighting off the chill of winter. Two bedrooms, one with French door entry that would make an excellent study or den, can be found at the front of this home. A unique grilling porch and courtyard can be accessed from the great room and are sure to be a favorite gathering place for your family.


  • Total Living Space:1895Sq.Ft.
  • Main Floor: 1895 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 307 Sq.Ft.
  • Garage (Sq.Ft.): 534 Sq.Ft.
  • Total Square Feet: 2736 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 19
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
