House Plan B1058 The Meadow Creek, Barna Log House Plan

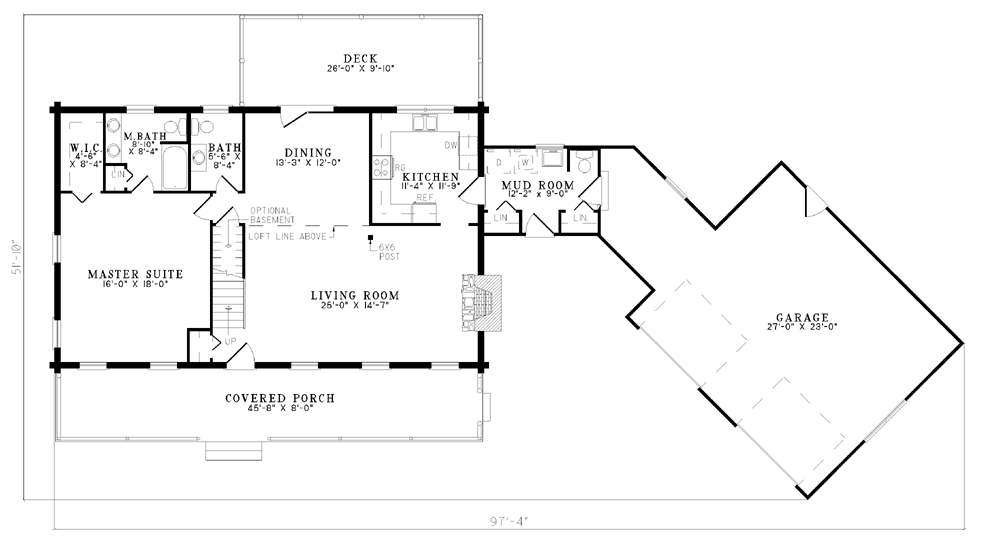

House Plan NDG B1058 Main Floor

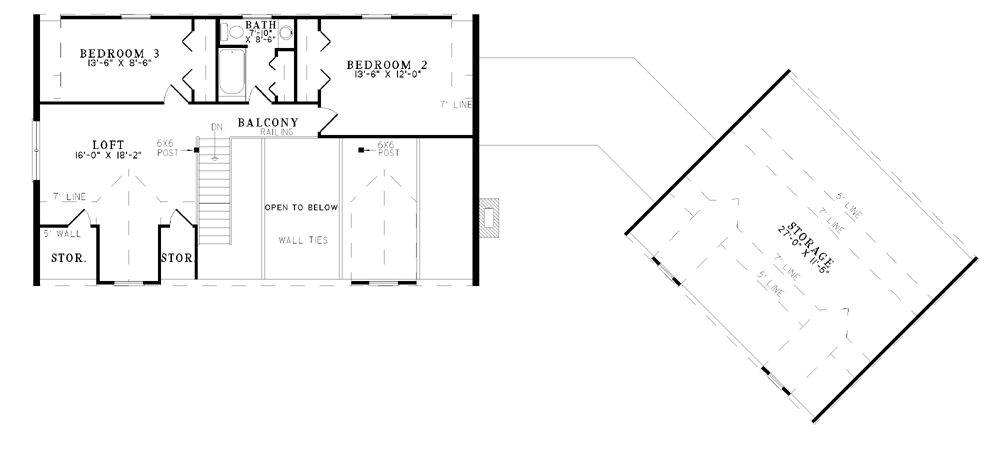

House Plan NDG B1058 Upper Floor
House Plan NDG B1058 Main Floor
House Plan NDG B1058 Upper Floor

Floor plans

NDG B1058

House Plan B1058 The Meadow Creek, Barna Log House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG B1058
  • Total Living Space:2181Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Angled Garage
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 94
  • Width In.: 4
  • Depth Ft.: 51
  • Depth In.: 10

Description

**Storage Sq. Ft is 360**

Specifications

  • Total Living Space:2181Sq.Ft.
  • Main Floor: 1408 Sq.Ft
  • Upper Floor (Sq.Ft.): 773 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 521 Sq.Ft.
  • Garage (Sq.Ft.): 792 Sq.Ft.
  • Total Square Feet: 3954 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: N/A
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: N/A
  • Ridge Height (Ft.): N/A
  • Ridge Height (In.): 0
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
