House Plan B1059 The Livingston, Barna Log House Plan

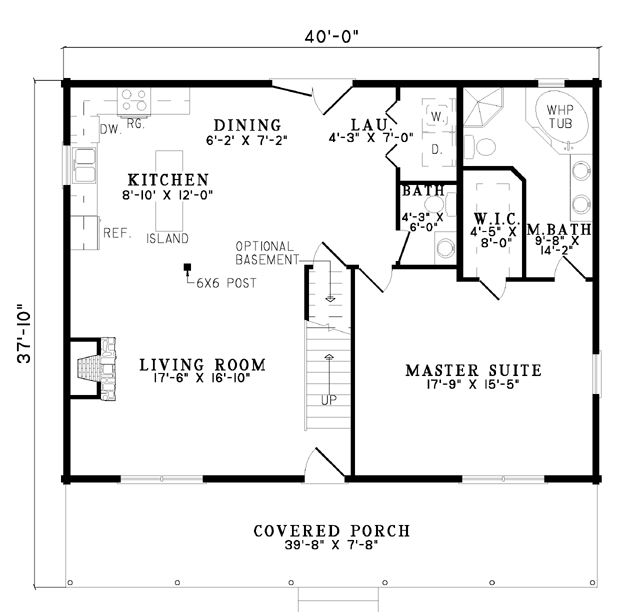

House Plan NDG B1059 Main Floor

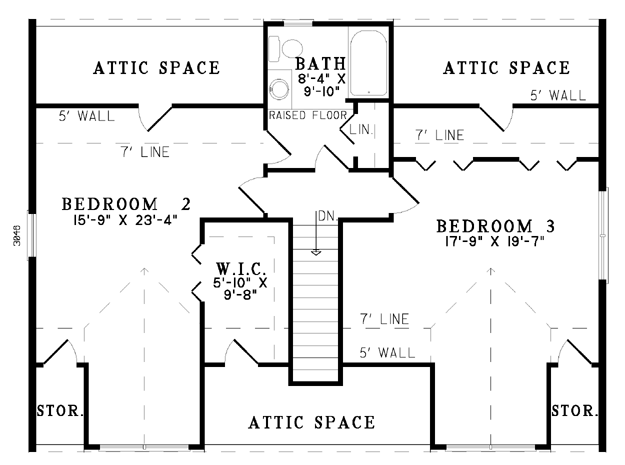

House Plan NDG B1059 Upper Floor
House Plan NDG B1059 Main Floor
House Plan NDG B1059 Upper Floor

Floor plans

NDG B1059

House Plan B1059 The Livingston, Barna Log House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG B1059
  • Total Living Space:2043Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 40
  • Width In.: N/A
  • Depth Ft.: 37
  • Depth In.: 10

Description

Specifications

  • Total Living Space:2043Sq.Ft.
  • Main Floor: 1200 Sq.Ft
  • Upper Floor (Sq.Ft.): 843 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 315 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2358 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: N/A
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: N/A
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 8
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
