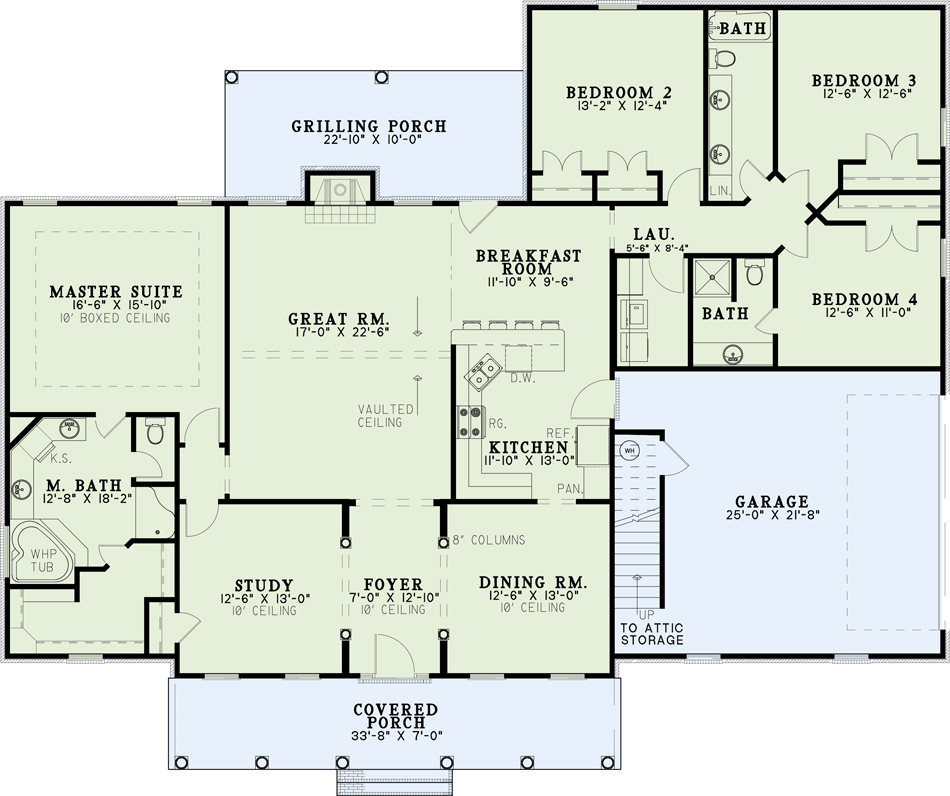

Floor plans

NDG 167

House Plan 167 Olive Street, Farmhouse House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 167
  • Total Living Space:2493Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 72
  • Width In.: N/A
  • Depth Ft.: 58
  • Depth In.: 6


Relax in the shade of the front porch on this Nelson Design Group home. Elegant columns can be found at the entries to the study and dining room. Entertain your guests in the spacious great room with vaulted ceiling and fireplace. When overnight guests arrive, you'll take comfort in the fact that they're well take care of in their guest bedroom with private bath. The addition of two bedrooms should prove to be just right for the kids, and you will be pleased with your master suite, full of the amenities that you deserve.


  • Total Living Space:2493Sq.Ft.
  • Main Floor: 2493 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 464 Sq.Ft.
  • Garage (Sq.Ft.): 557 Sq.Ft.
  • Total Square Feet: 3514 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
