House Plan 175 Richmond Drive, Country Home House Plan

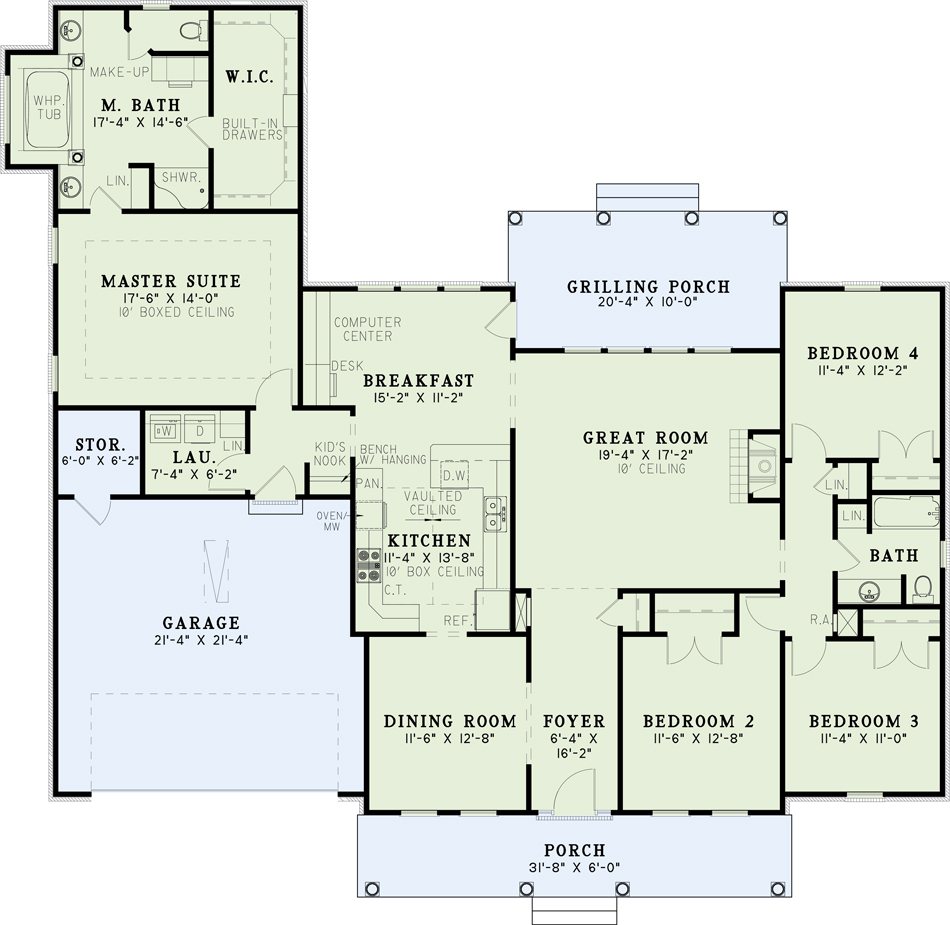

Floor plans

NDG 175

House Plan 175 Richmond Drive, Country Home House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 175
  • Total Living Space:2250Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 68
  • Width In.: 6
  • Depth Ft.: 65
  • Depth In.: N/A


This four-bedroom Nelson Design Group home plan has wonderful covered porches and everything necessary for a large family. Family areas include a breakfast room with computer center and nearby kid’s nook as well as a spacious great room with fireplace. A well-equipped kitchen with plenty of storage is enhanced by a boxed ceiling and easily services the formal dining room. The master suite is privately located apart from the other bedrooms and has a ten-foot boxed ceiling, luxurious bathroom and expansive walk-in closet with built-ins. The bedroom nearest to the dining room can easily transform into the perfect home study or library.


  • Total Living Space:2250Sq.Ft.
  • Main Floor: 2250 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 383 Sq.Ft.
  • Garage (Sq.Ft.): 522 Sq.Ft.
  • Total Square Feet: 3155 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
