Floor Plans
Floor Plan #1
Description

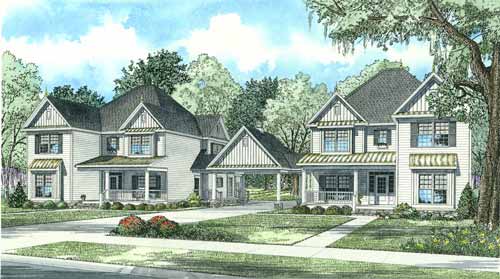

Nostalgia for the past with the need for modern convenience in a neighborhood setting makes this traditional dual home design the perfect choice. Some of the exterior highlights are a covered front porch and an entry porch in the rear of the home. The home features a main floor master suite with a master bath with a separate whirlpool bath and shower. Upstairs the growing family will appreciate three bedrooms and a home theater/game room.
Home Specifications
- Total Living Space: 3046
- Ridge Height (Ft.) 35

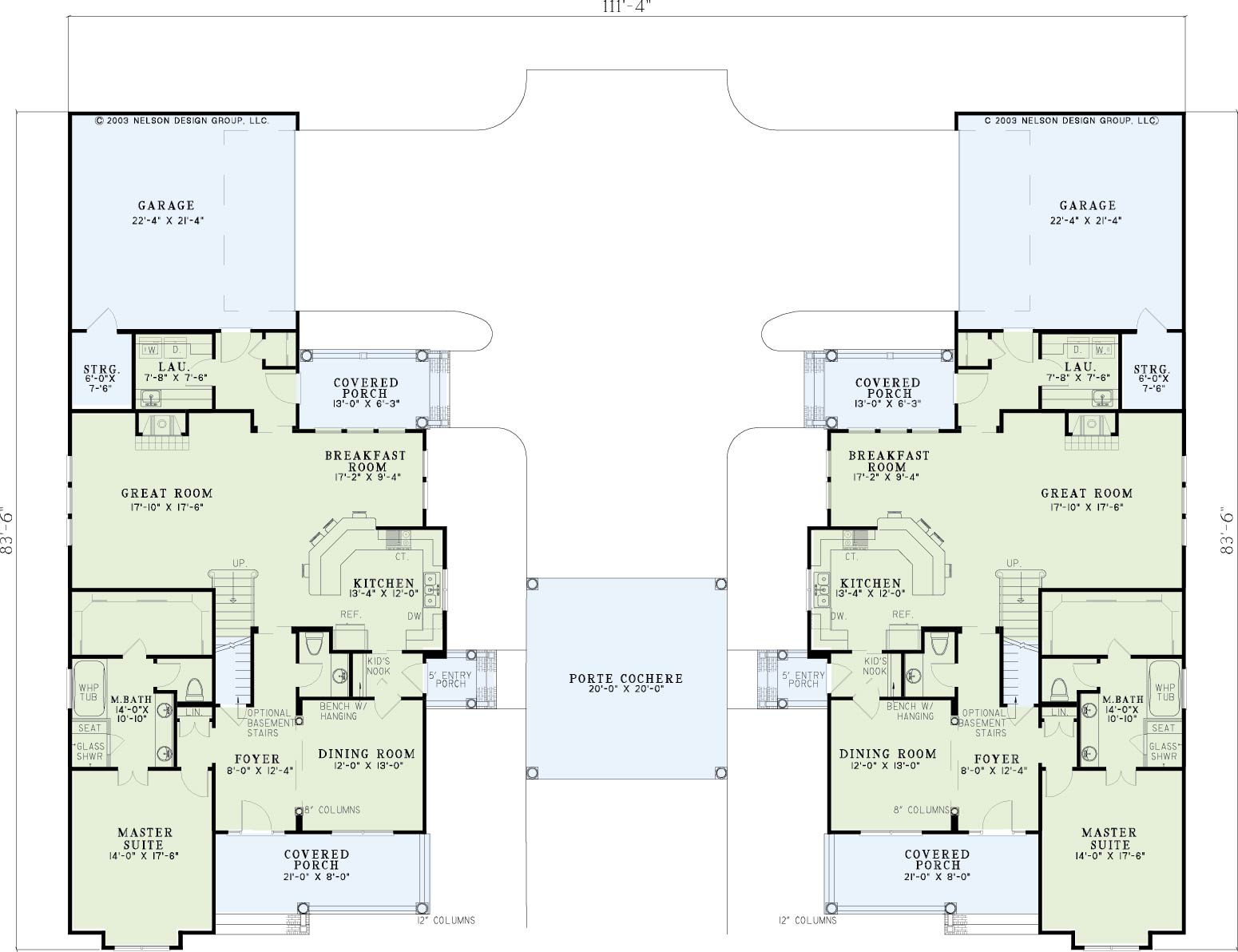

- Main Floor (Sq. Ft.): 1803 Sq.Ft
- Ridge Height (In.) 3

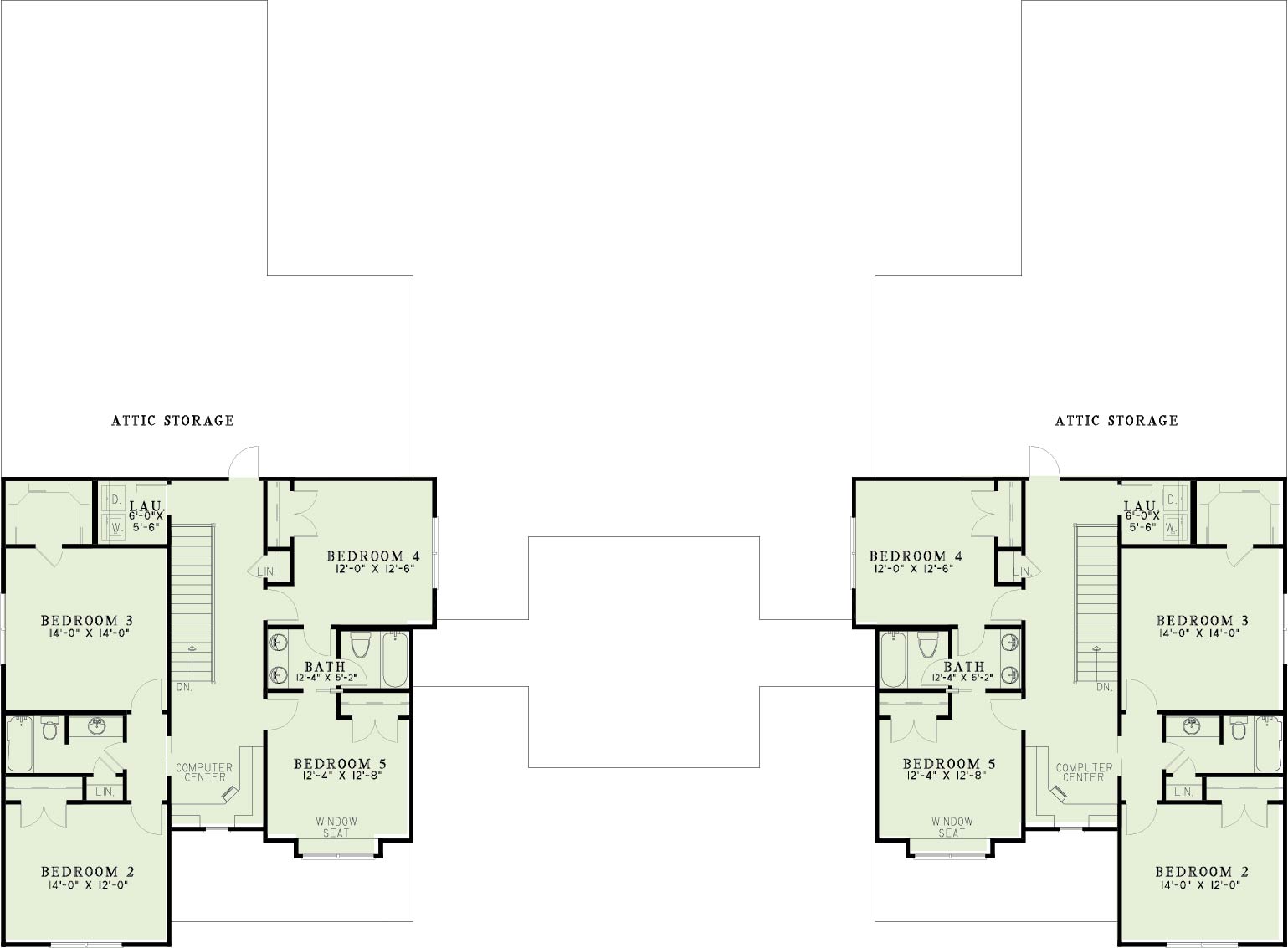

- Upper Floor (Sq. Ft.): 1243 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 726 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 538 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Side Load and Porte-Cochere Side Load and Porte-Cochere
- Bedrooms: 5
- Carport: N/A
- Full Baths: 3
- Roof Pitch: 12:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 2.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 83
- Width (Ft): 111
- Depth (In.) 6
- Width (In.) 4
- Total Sq. Ft. 4310 Sq.Ft.
- Customizable: Yes
Key Features
- Covered Front Porch

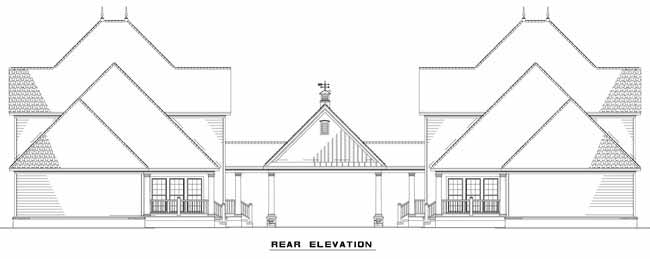

- Covered Rear Porch
- Formal Dining Room
- Great Room
- Jack & Jill Bathroom
- Main Floor Master
- Mudroom
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Porte-Cochere
- Split Bedroom Design
- Walk-in Closet
