House Plan 1496 Dellwood Drive, Rustic House Plan

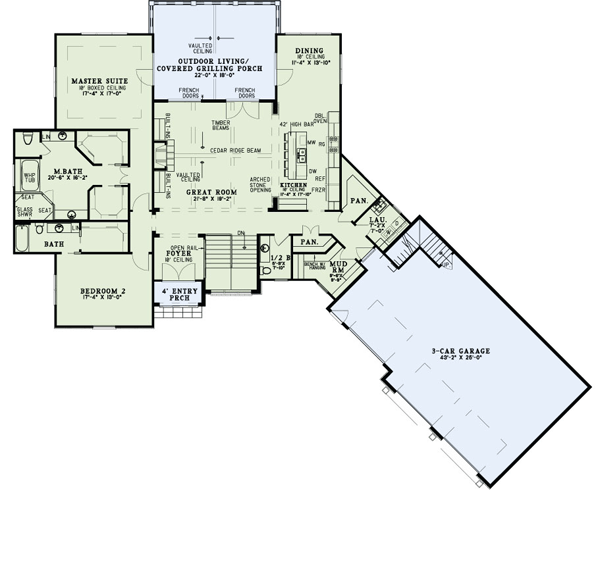

House Plan NDG 1496 Main Floor

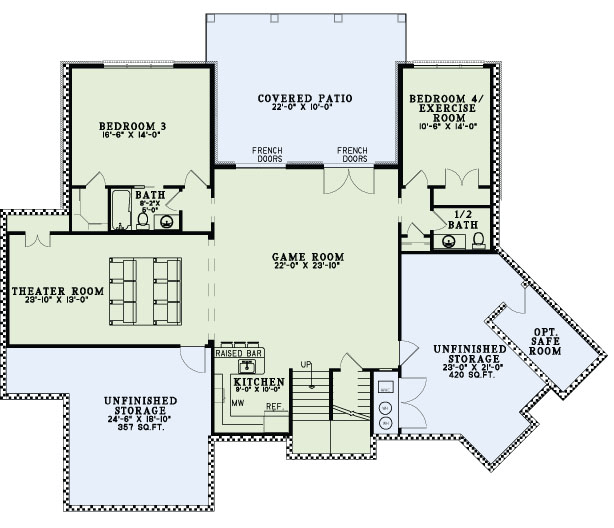

House Plan NDG 1496 Basement

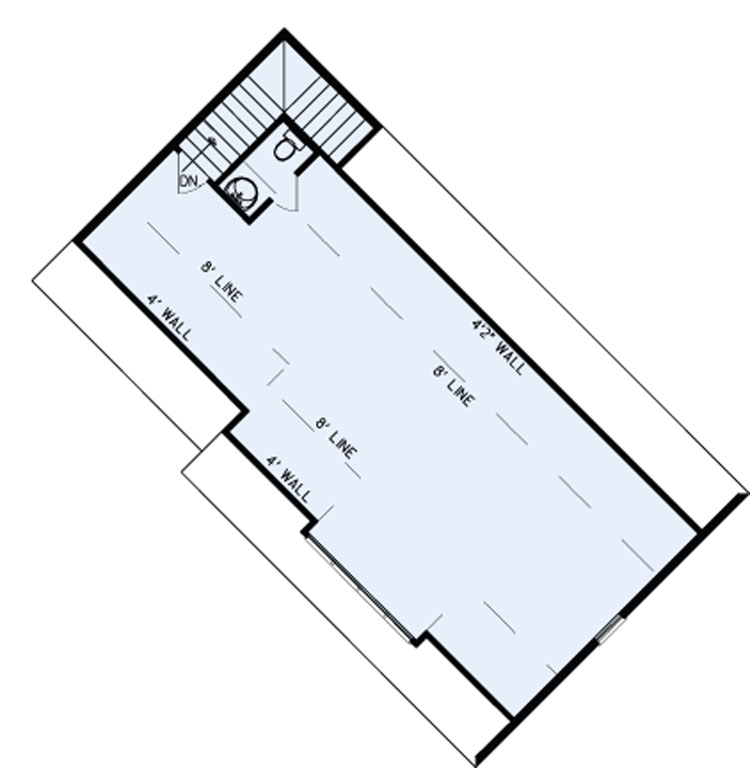

House Plan NDG 1496 Bonus Room
House Plan NDG 1496 Main Floor
House Plan NDG 1496 Basement
House Plan NDG 1496 Bonus Room

Floor plans

NDG 1496

House Plan 1496 Dellwood Drive, Rustic House Plan

PDF: $2,250.00

Plan Details

  • Plan Number: NDG 1496
  • Total Living Space:4264Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 2
  • Garage: 3 Bay Yes
  • Garage Type: Angled Garage
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 103
  • Width In.: 11
  • Depth Ft.: 88
  • Depth In.: 6


This rustic plan features a 3-car courtyard oriented garage and an arched covered entry. Once inside the foyer, open rails to the right allow you to see the stairs leading down to the lower level. The massive Great Room features a fireplace with built-ins, vaulted ceiling, and French doors to the Covered Grilling Porch. The kitchen offers an eat-at island bar and 2 walk-in pantries, and a convenient half bath is nearby. The master bedroom has a 10’ boxed ceiling with access to the Grilling Porch and the master bath features his and her walk-in closets, his and her vanities, a whirlpool tub, and a corner glass shower with seats. Across the hall, bedroom 2 has a full bath and walk-in closet. Downstairs you’ll find a huge Game Room with a second kitchen and nearby Theater Room, perfect for entertaining. Two more bedrooms are also downstairs with plenty of unfinished storage space, and a large covered patio. A Bonus Room with tons of possibilities and space is located over the garage.


  • Total Living Space:4264Sq.Ft.
  • Main Floor: 2589 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): 1675 Sq.Ft.
  • Bonus Room (Sq.Ft.): 754 Sq.Ft.
  • Porch (Sq.Ft.): 855 Sq.Ft.
  • Garage (Sq.Ft.): 1116 Sq.Ft.
  • Total Square Feet: 7222 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
