House Plan 1641 Weekend Retreat II, Riverbend House Plan

House Plan NDG 1641 Main Floor
House Plan NDG 1641 Upper Floor
House Plan NDG 1641 Basement
House Plan NDG 1641 Main Floor
House Plan NDG 1641 Upper Floor
House Plan NDG 1641 Basement

Floor plans

NDG 1641

House Plan 1641 Weekend Retreat II, Riverbend House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1641
  • Total Living Space:1766Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 53
  • Width In.: 2
  • Depth Ft.: 46
  • Depth In.: 6


This charming cabin house plan is perfect for your main home or a great vacation cabin.

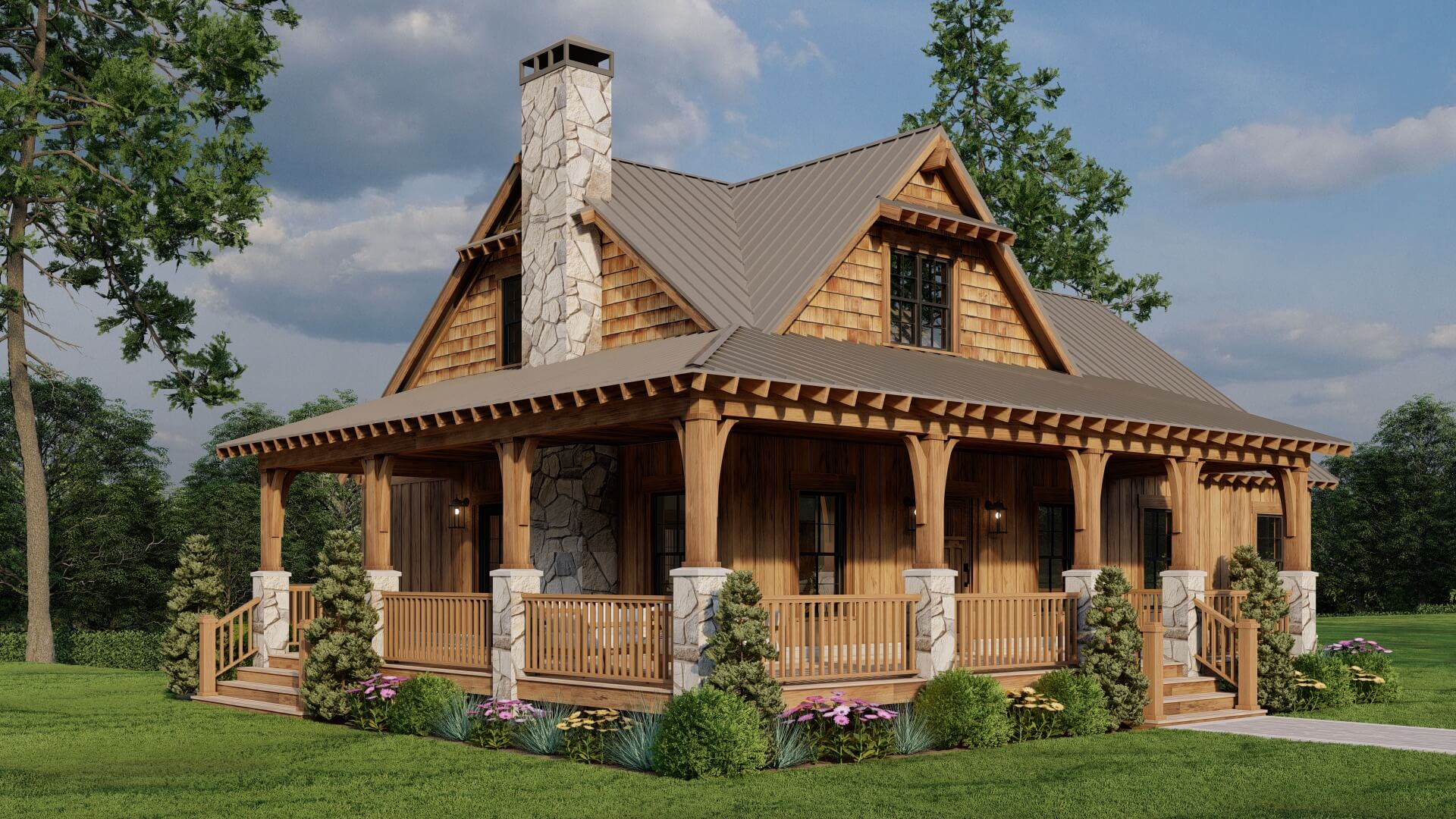

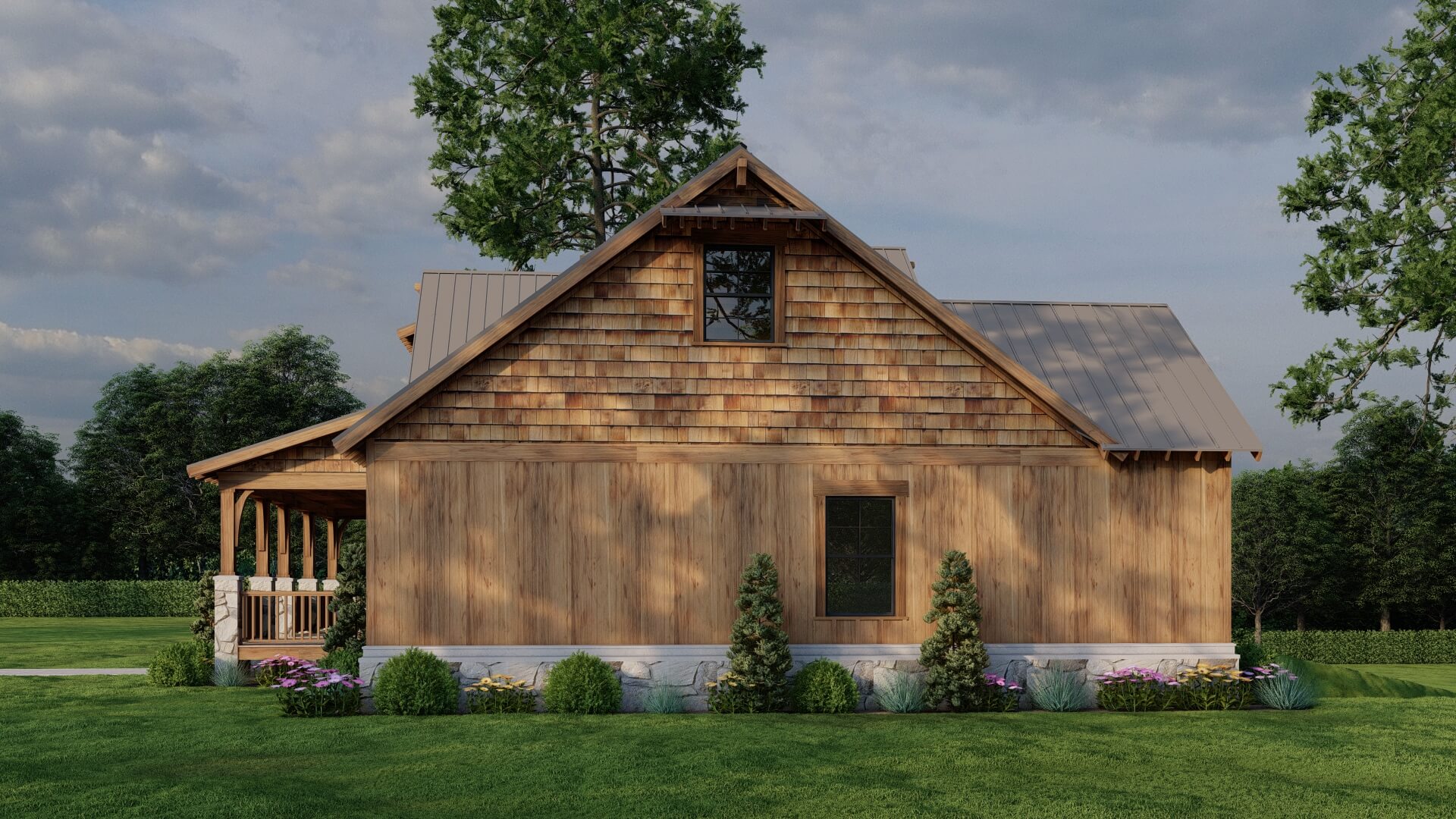

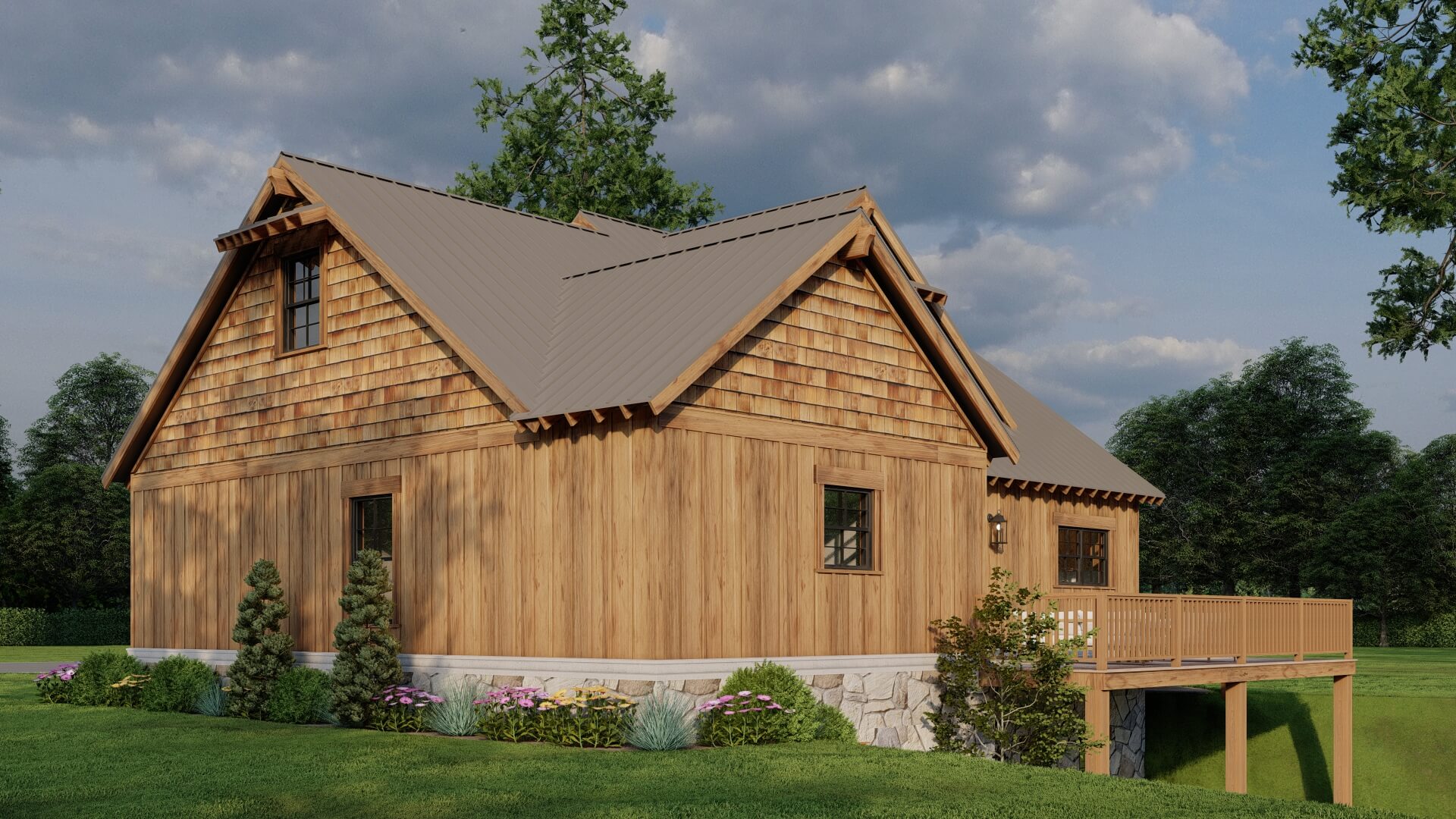

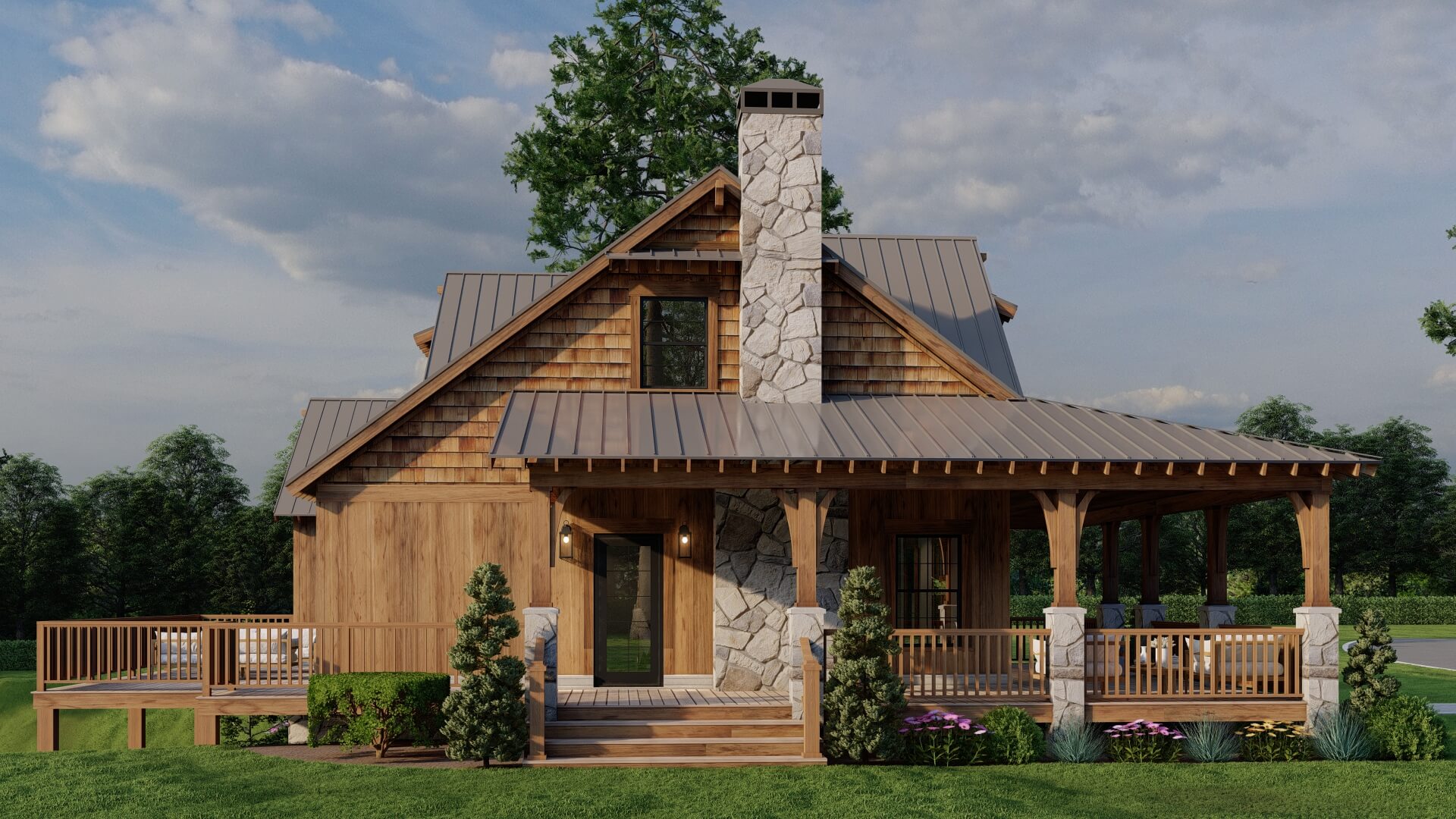

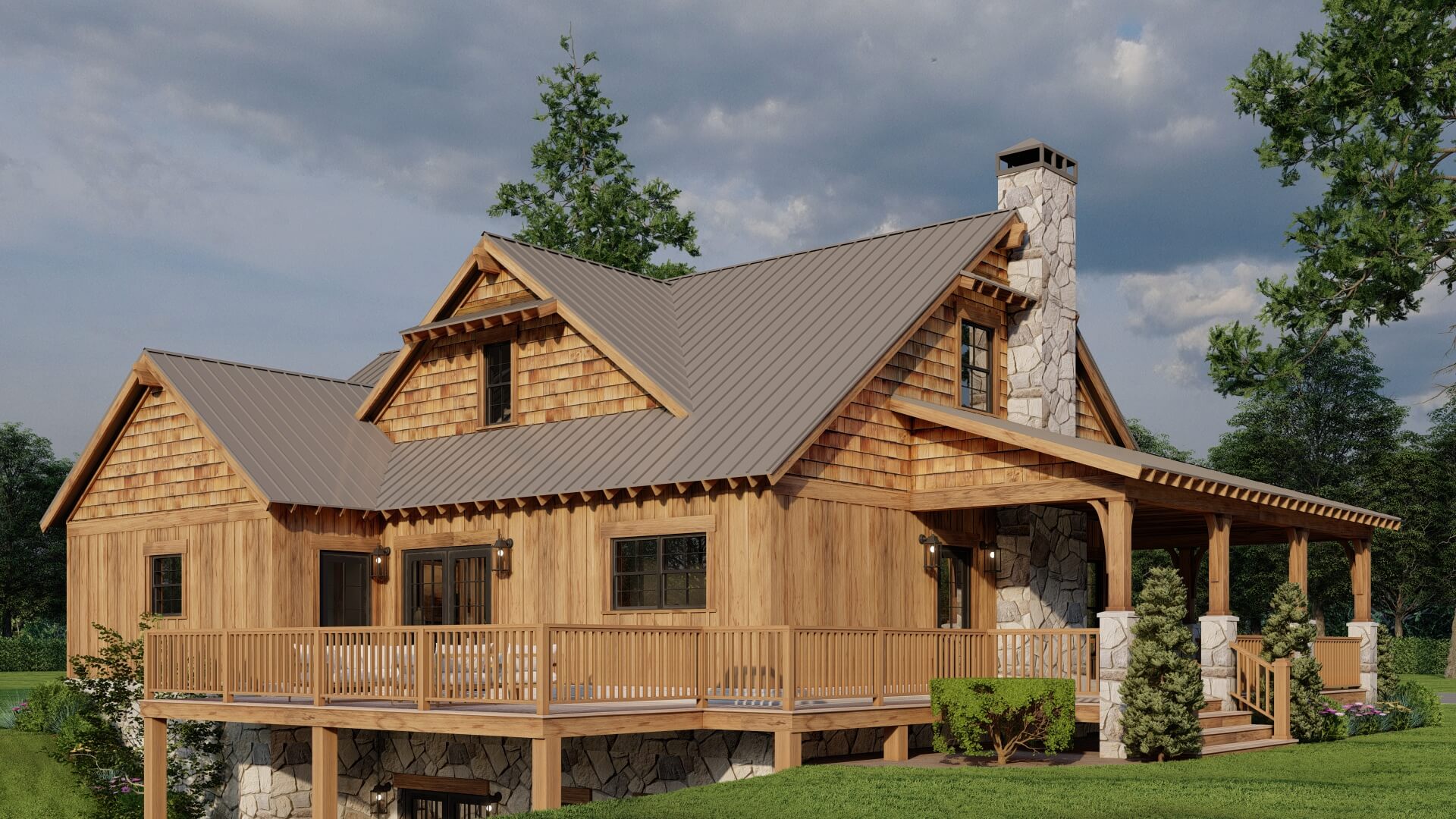

The accents of shake siding and stone skirt/column bases works together with the simple metal roof and board and batten siding perfectly compliments a rustic natural setting. The wrap around porch is the perfect place to enjoy a beautiful view and a great cup of sweat tea on a summer afternoon.

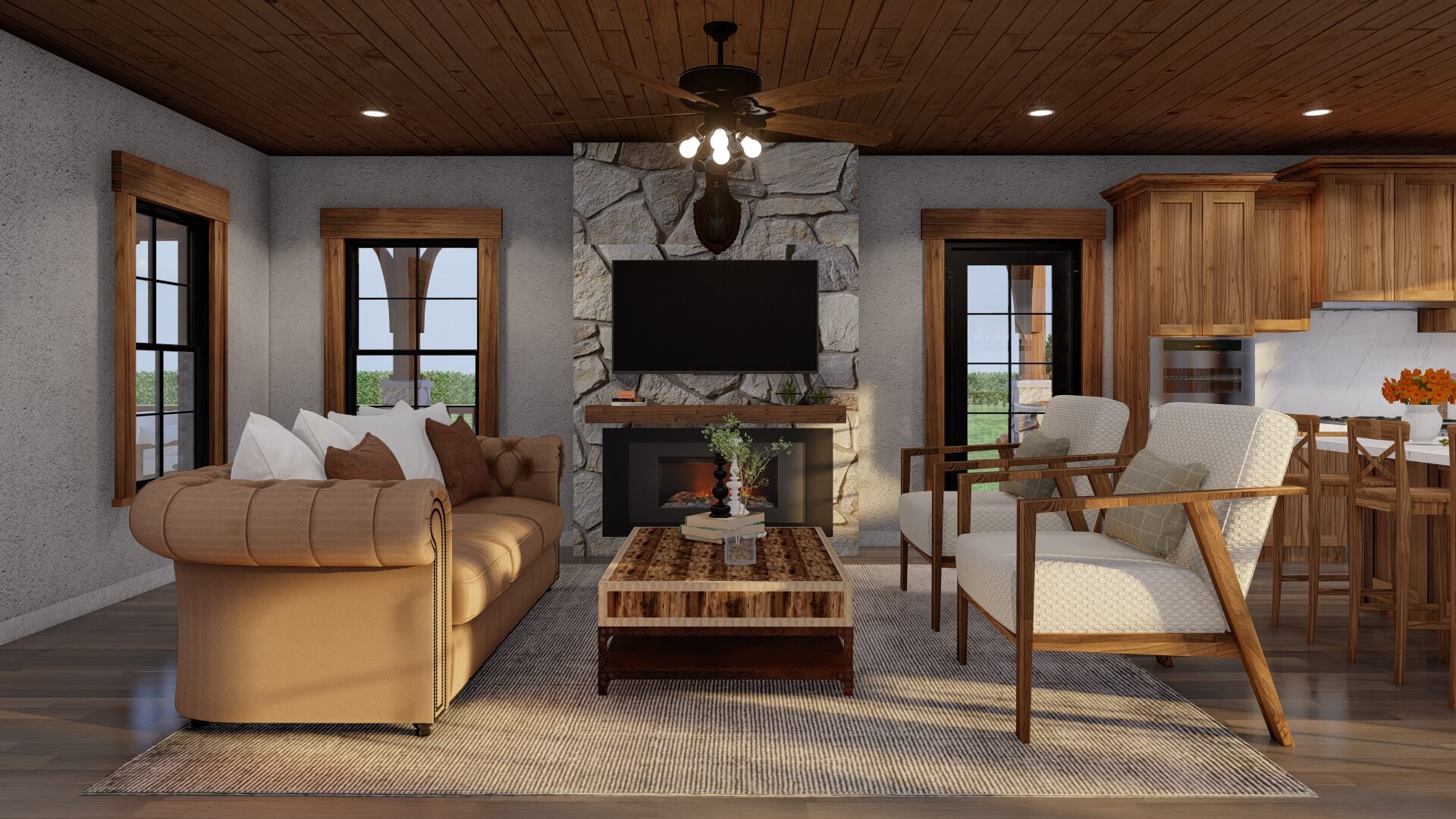

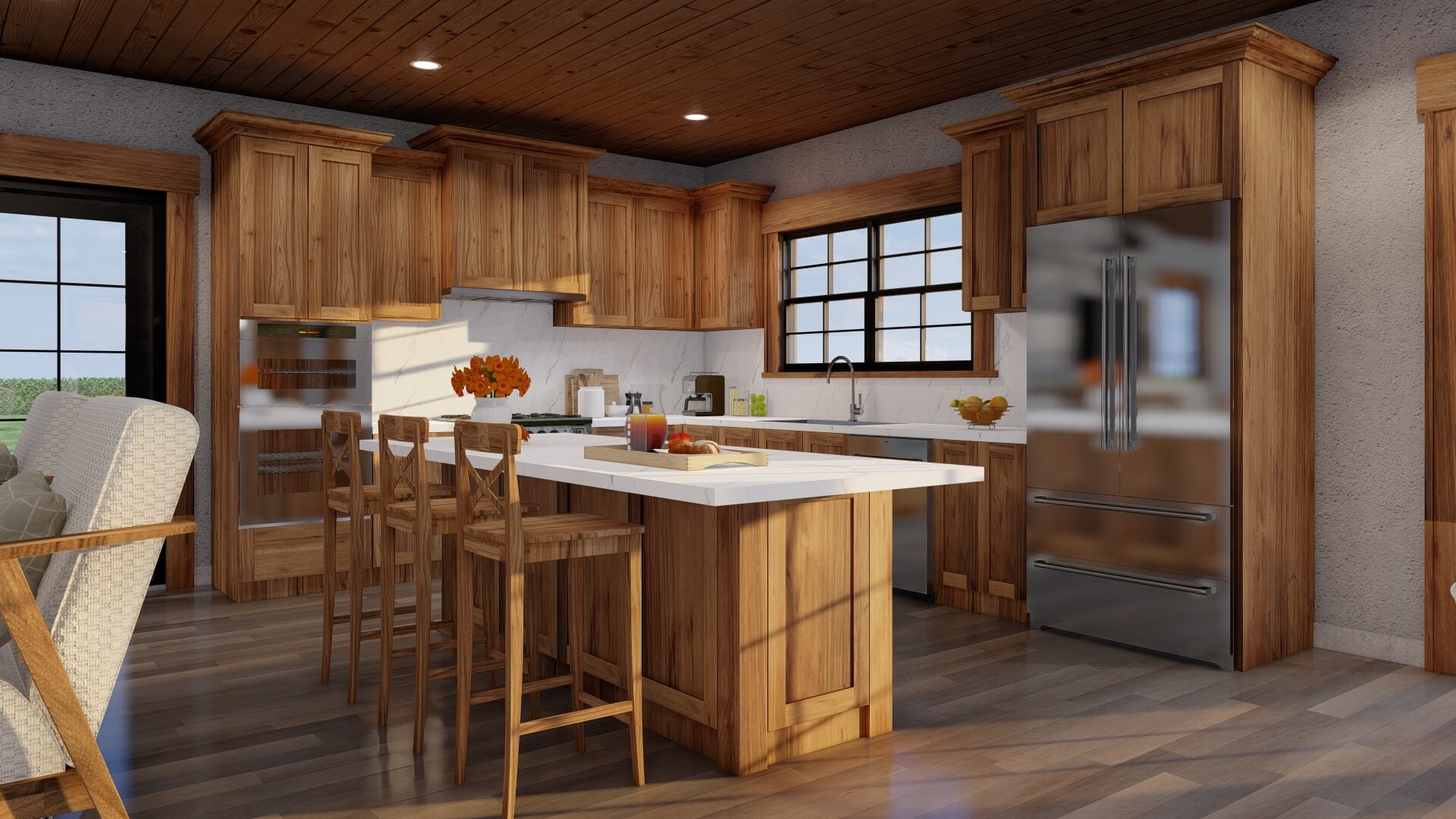

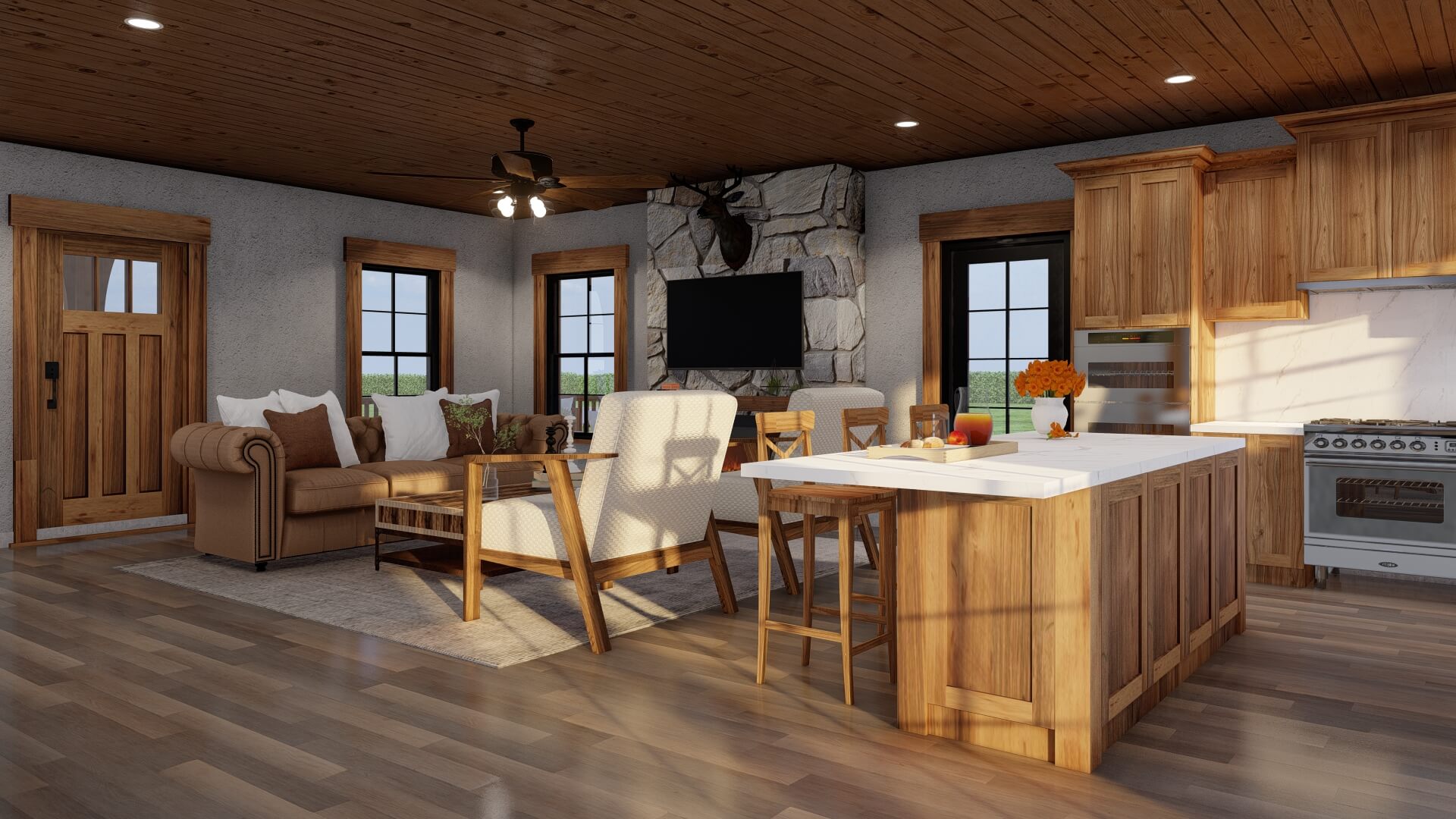

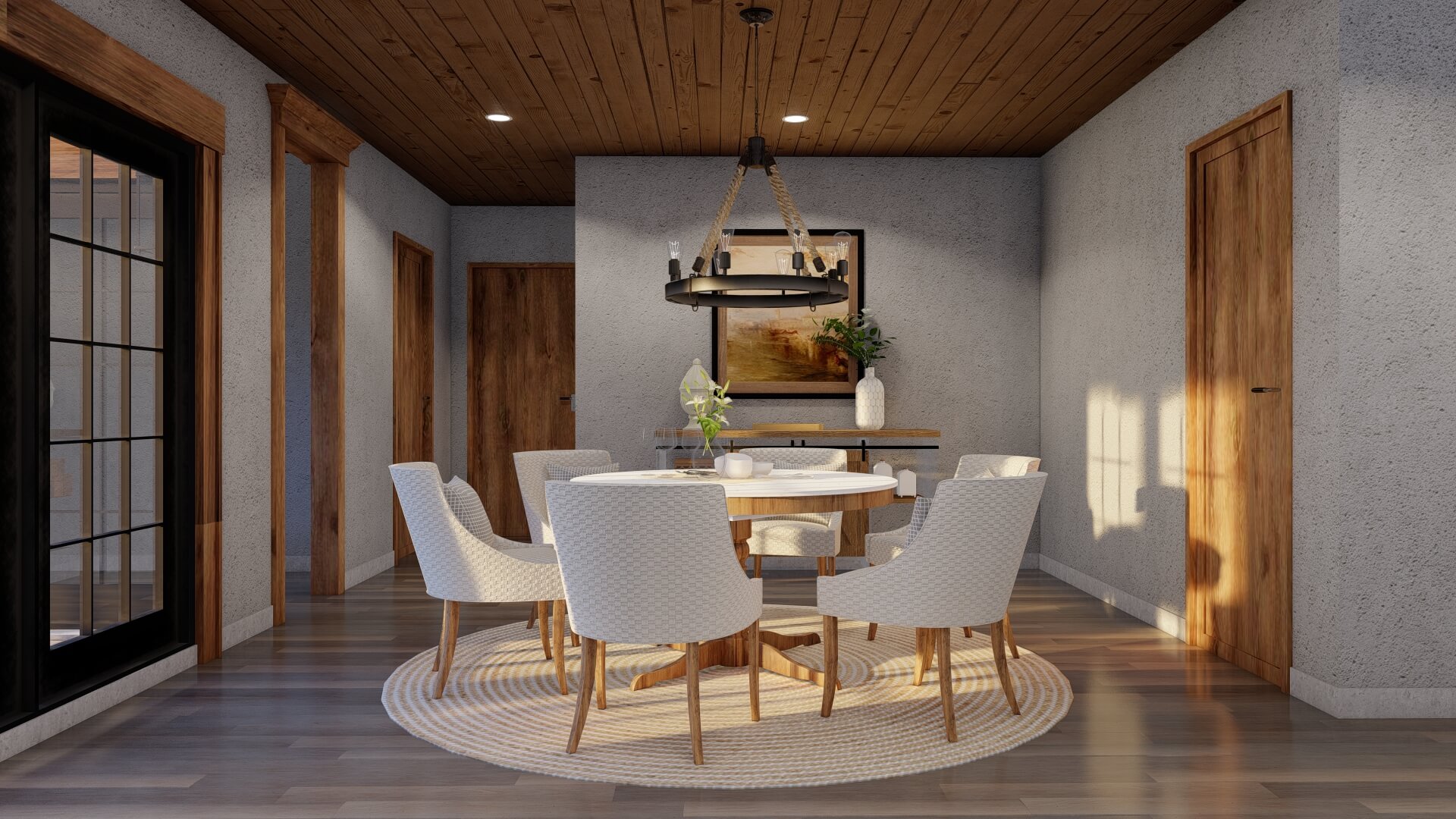

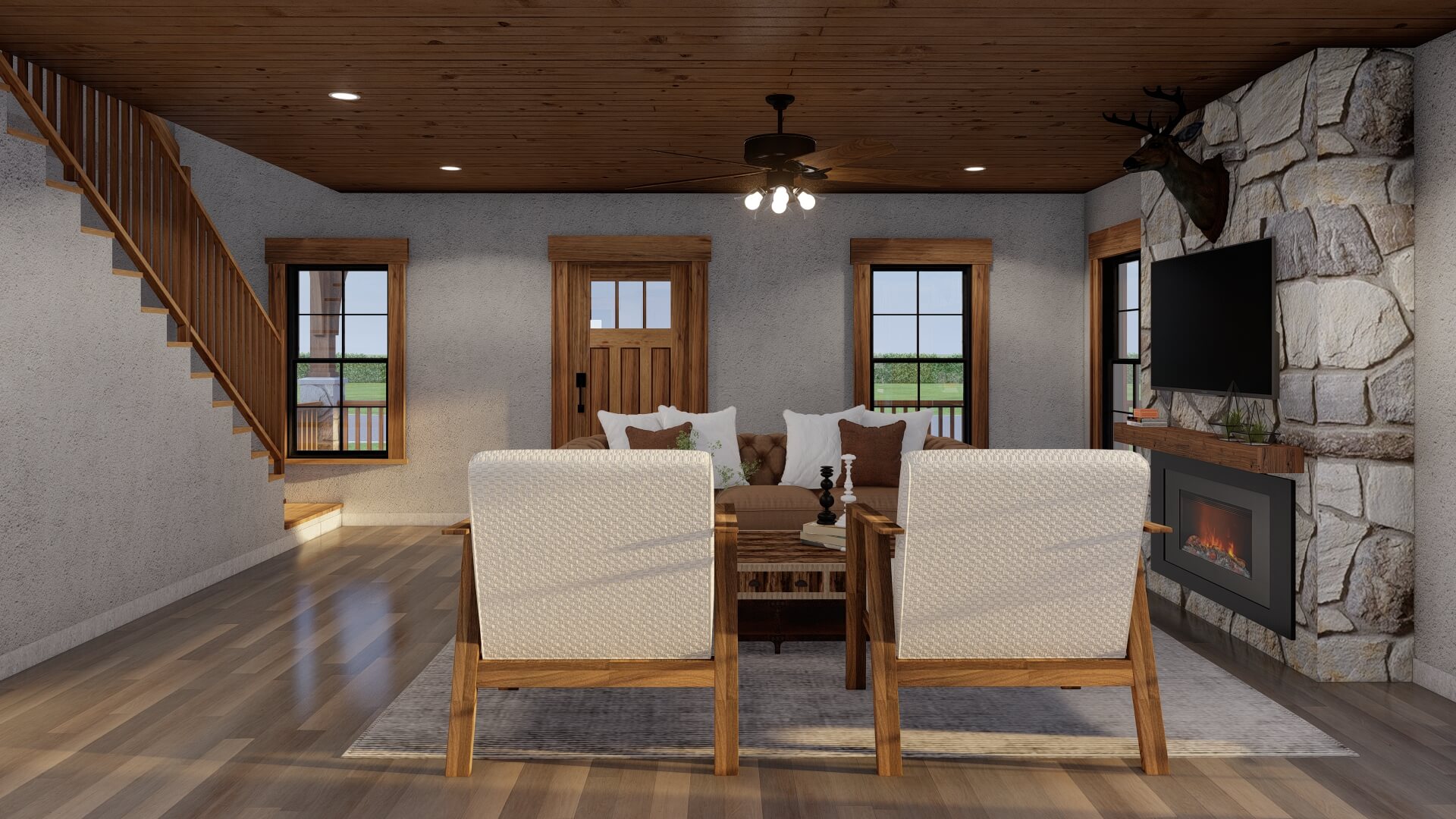

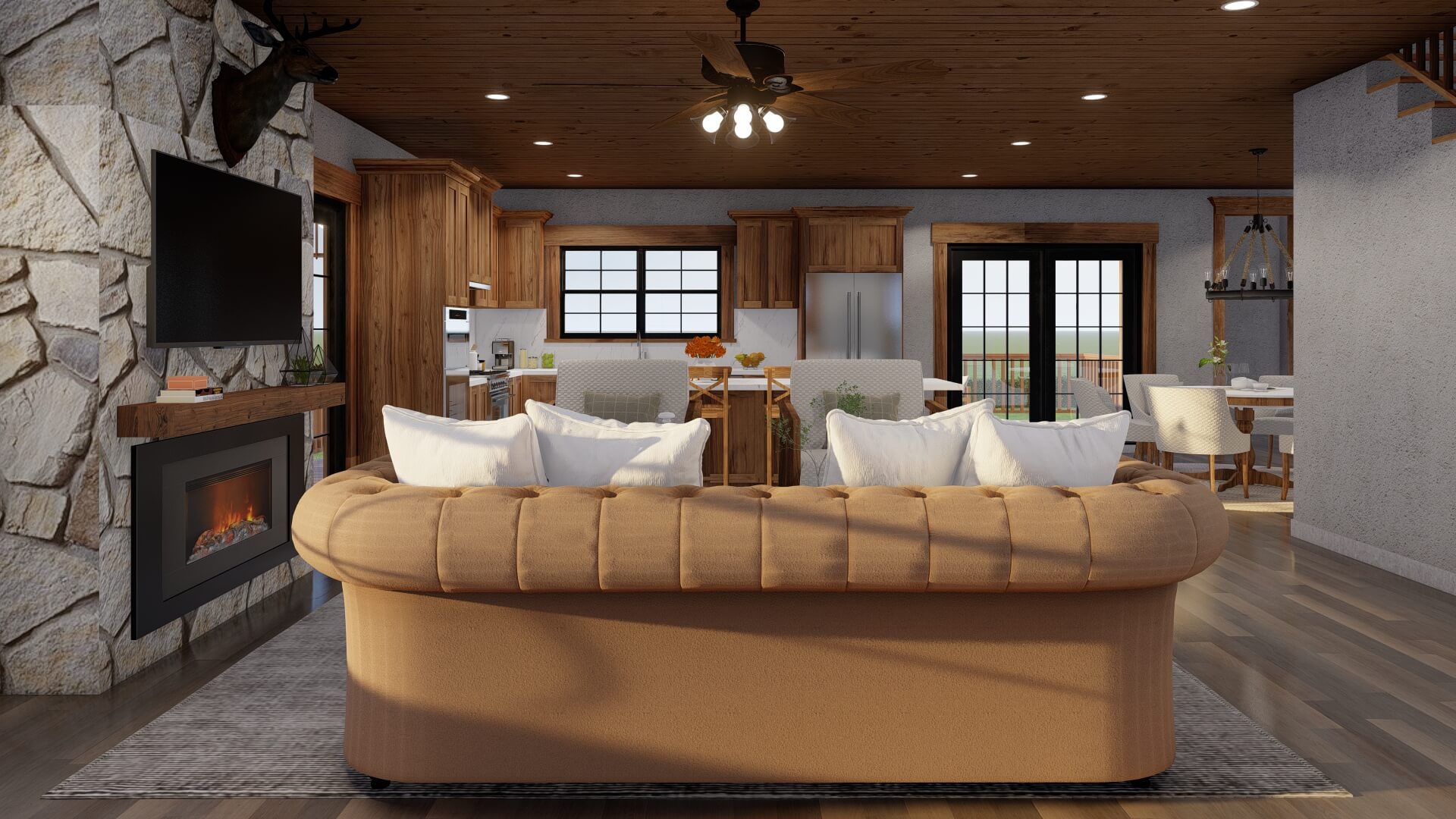

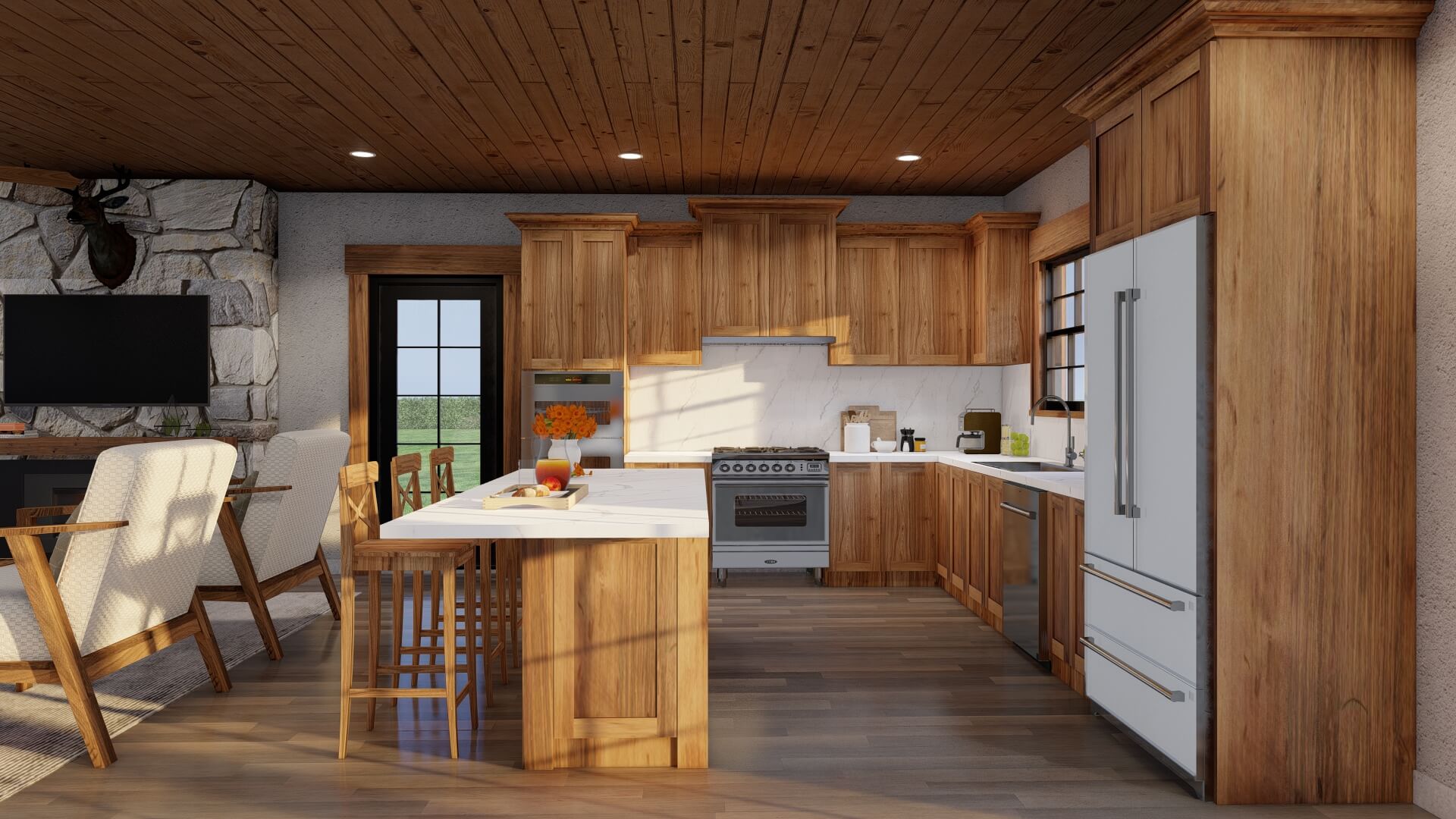

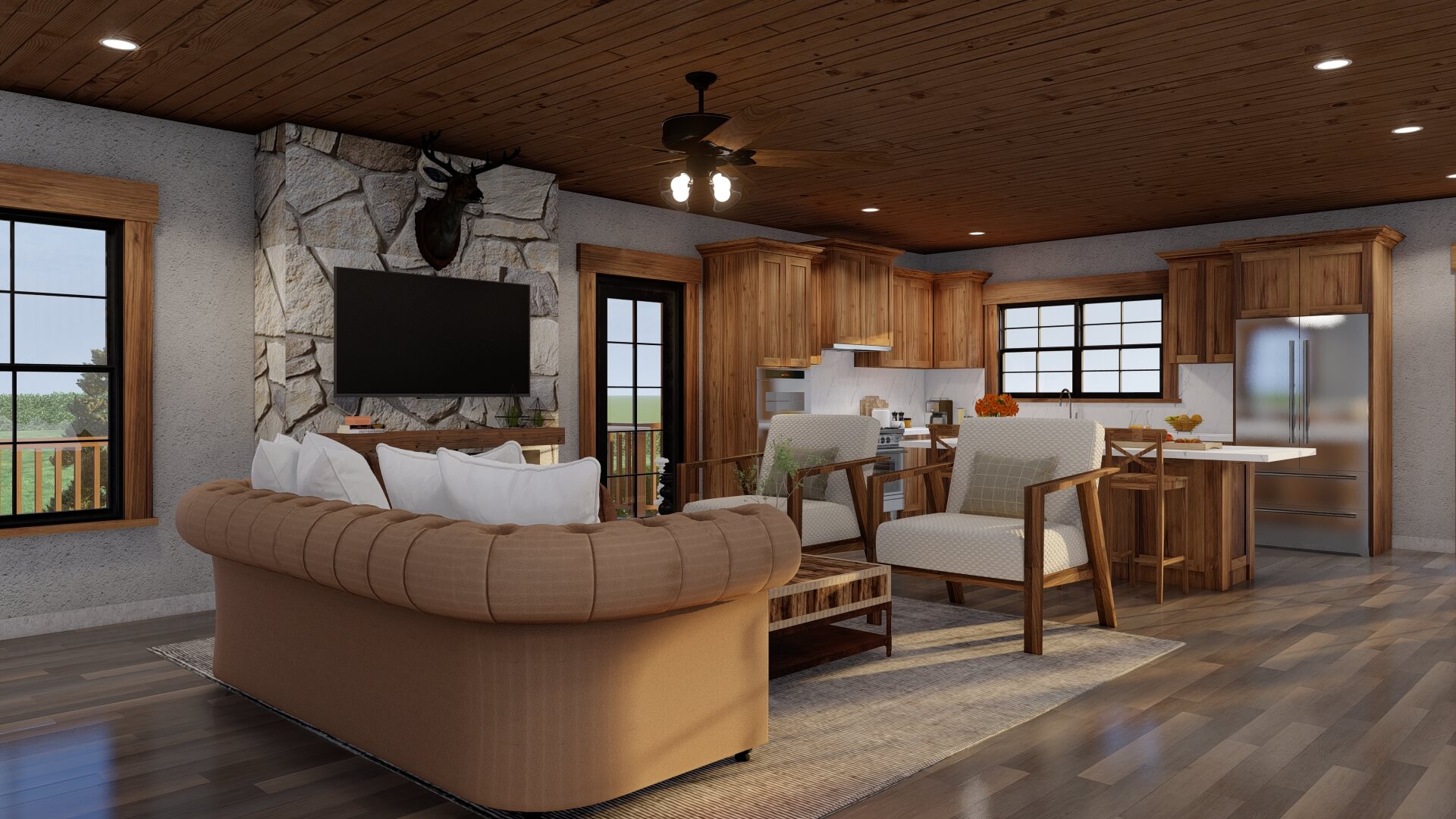

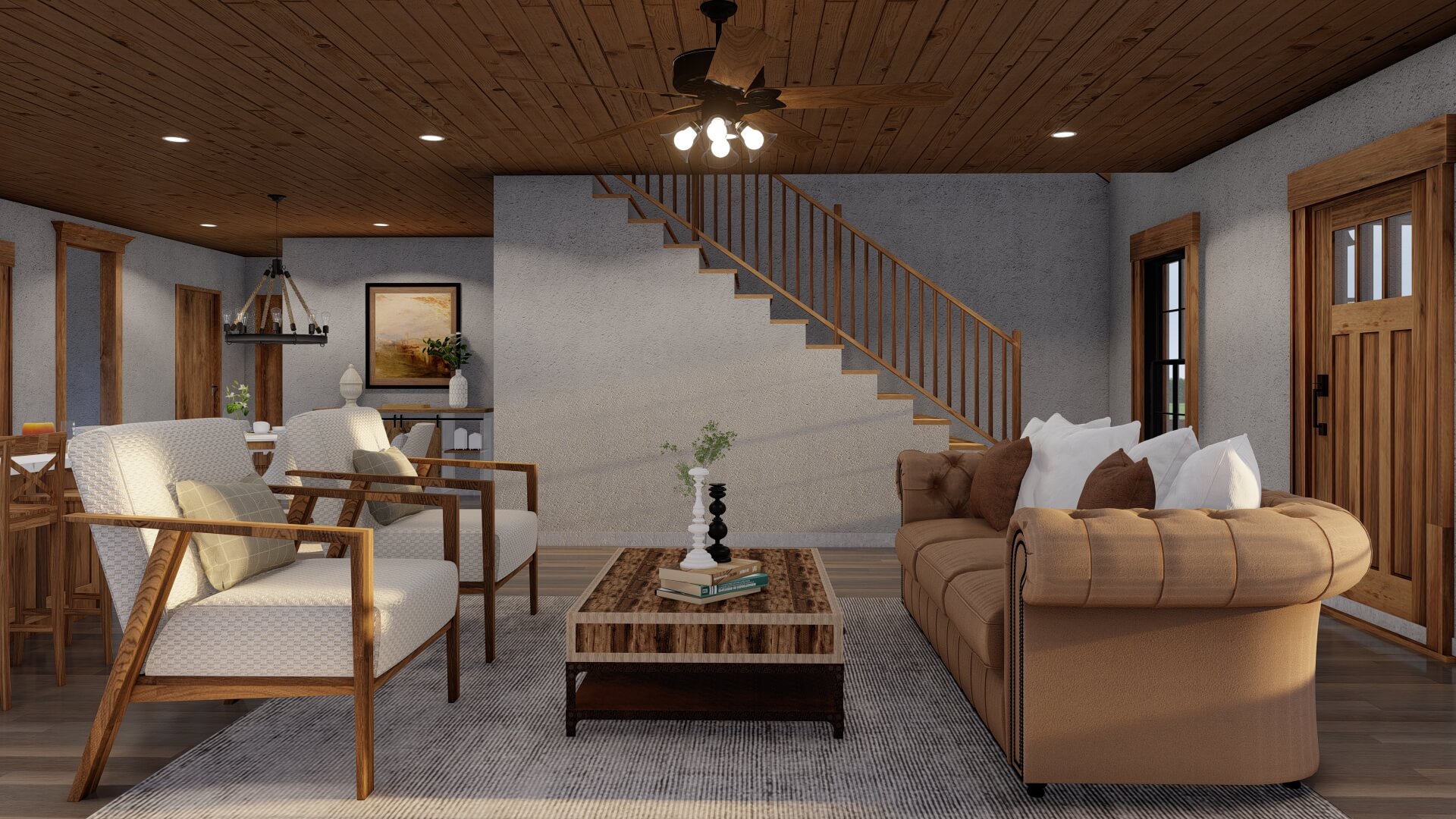

Heading inside you will find yourself in the spacious den that displays a beautiful fireplace. The open floor plan allows the den of this cabin house plan to flow into the kitchen and dining room allowing family and friends to gather together for great times spent together. This kitchen offers a large island with a hightop bar and seating as well as a walk-in pantry for added storage. A large window over the sink gives you a the ability to enjoy your view to make even the chores a little more enjoyable. The master suite is located on the main floor and has a spacious bedroom and bathroom as well as a large walk-in closet. The master bath gives you all the amenities you need including a private toilet room, glass shower, large linen closet and dual sink vanity. Making your way upstairs you will find an additional full bath, a second bedroom and a convenient linen closet. If additional space is desired you can finish out the unfinished area for an additional 326 Square Feet. Heading back downstairs and then down into the basement you will find to large unfinished spaces that can be finished out to be whatever you need them to be! Both these space together will add an additional 1287 Square Feet to the home. This basement can make he perfect game room, home theater or flex space for your family! Other Great Features Of This Cabin House Plan: The Large Deck A Convenient Half Bath Located Off The Dining Room The Spacious Laundry Room With Cabinets A Full Bath Layout In The Basement

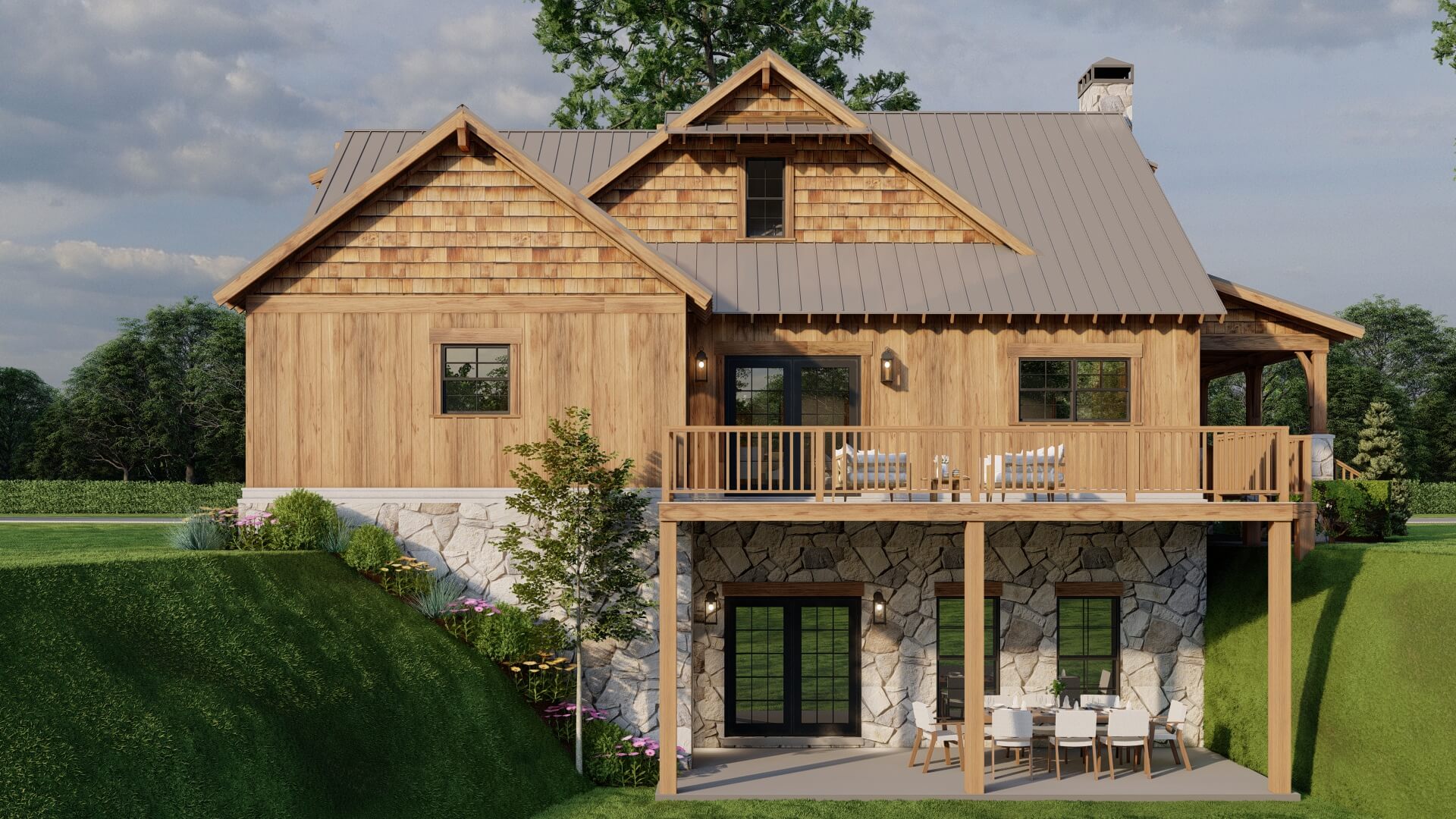

Walk-Out Basement

Having a walk-out basement is the perfect option for anyone with a sloped lot. Before choosing a walk-out basement floor plan however be sure your land has the appropriate slope needed for a walkout basement. You will want to meet with your builder before hand to go over what the best options for your lot of land are. They will be able to help point you in the right direction for what foundation type is best.

Riverbend Cabin House Plan

The house plans of the Riverbend Collection were each designed to compliment the beautiful of nature both inside and out. These homes allow you to make the most of your beautiful setting with large outdoor living areas and lots of windows. This home plan is no exception to these standards. The floor plan of Weekend Retreat II is meant to not only give you the best views but to promote family time spent together.

Customizing This Nelson Design Group House Plan

Here at Nelson Design Group we understand that sometimes a house plan exterior or floor plan needs a few changes and tweaks to make it perfect for you and your family. Our team of experienced house plan specialists and designers would love to help you make that happen. We will help you take this good house.


  • Total Living Space:1766Sq.Ft.
  • Main Floor: 1417 Sq.Ft
  • Upper Floor (Sq.Ft.): 349 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 326 Sq.Ft.
  • Porch (Sq.Ft.): 550 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 3929 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: 10
  • Roof Type: Metal
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
