House Plan 472-1 Spruce Street, Craftsman Bungalow House Plan

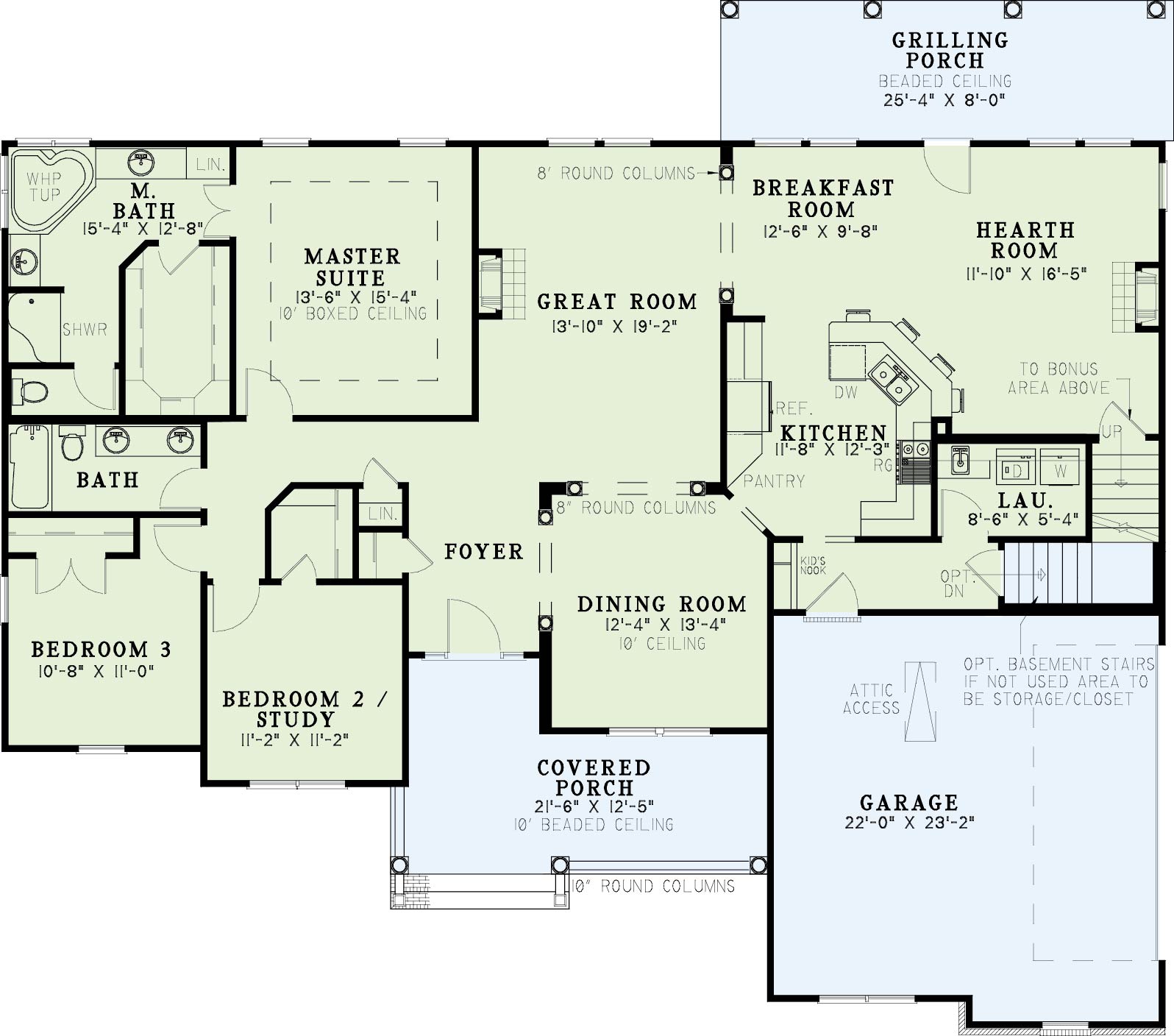

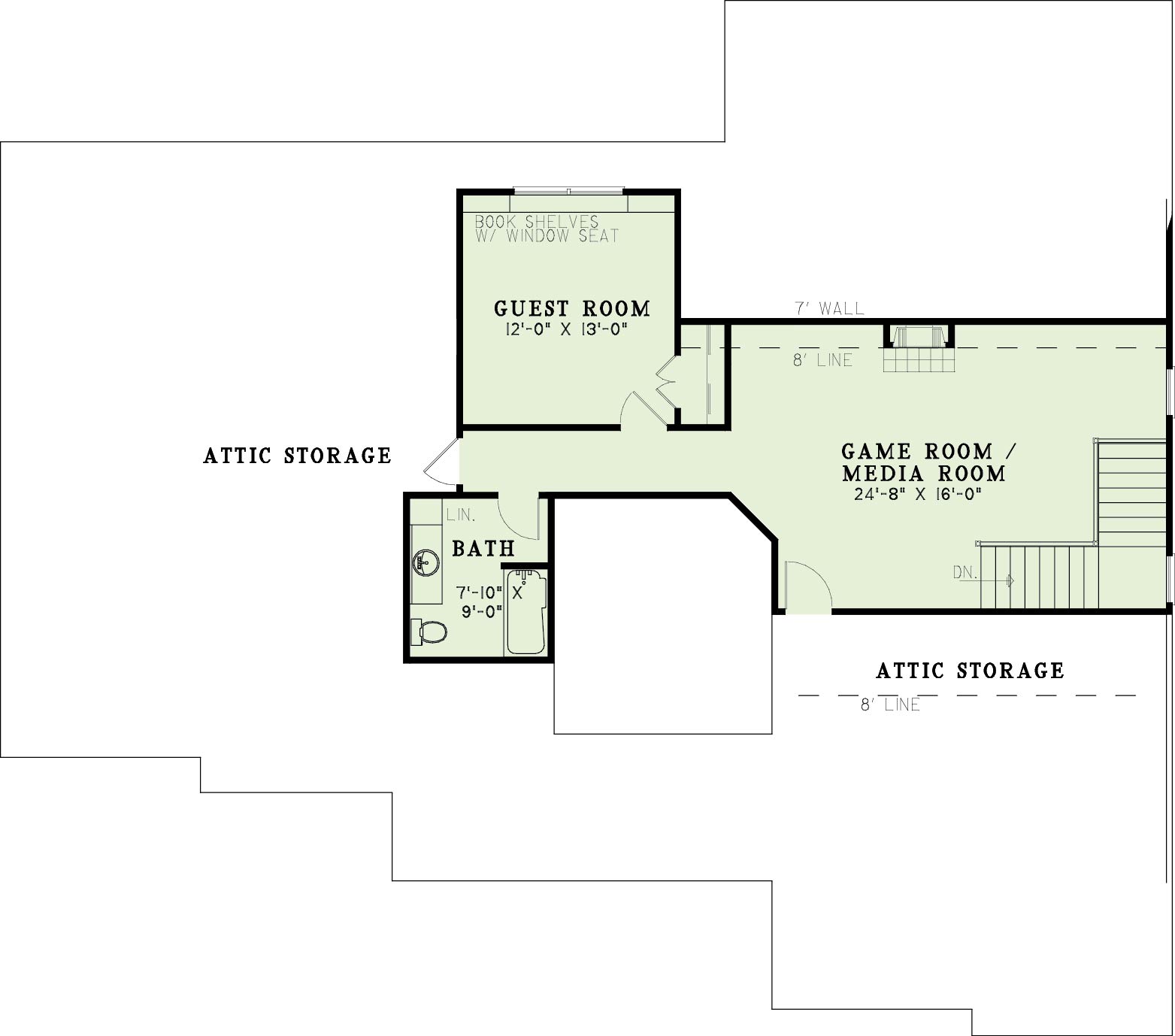

Floor plans
NDG 472-1
House Plan 472-1 Spruce Street, Craftsman Bungalow House Plan
Plan Details
- Plan Number: NDG 472-1
- Total Living Space:2845Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: 2 Bay Yes
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 66
- Width In.: 4
- Depth Ft.: 58
- Depth In.: 7
Description
Specifications
- Total Living Space:2845Sq.Ft.
- Main Floor: 2108 Sq.Ft
- Upper Floor (Sq.Ft.): 737 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 404 Sq.Ft.
- Garage (Sq.Ft.): 513 Sq.Ft.
- Total Square Feet: 3762 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: N/A
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 28
- Ridge Height (In.): 1
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
