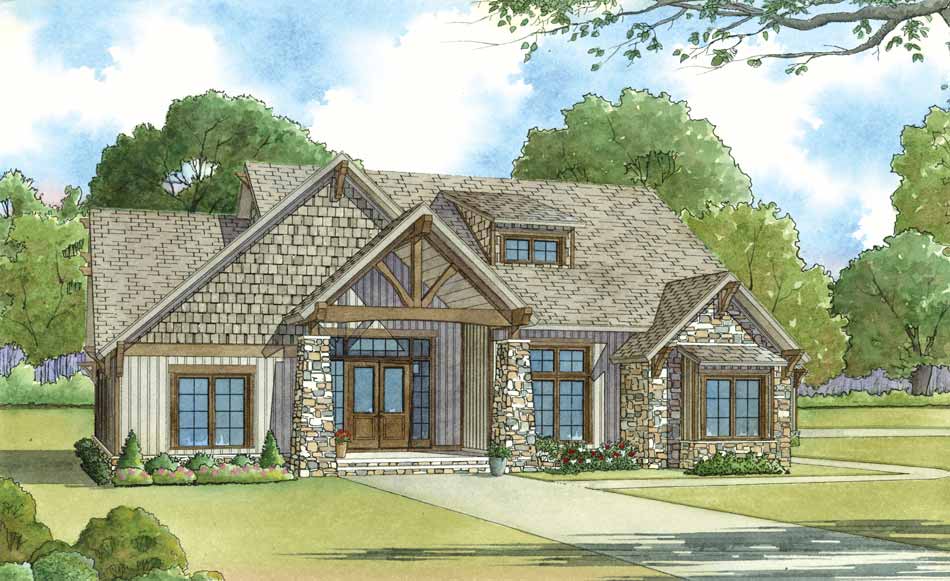

House Plan 5031 Shenandoah, Craftsman Bungalow House Plan

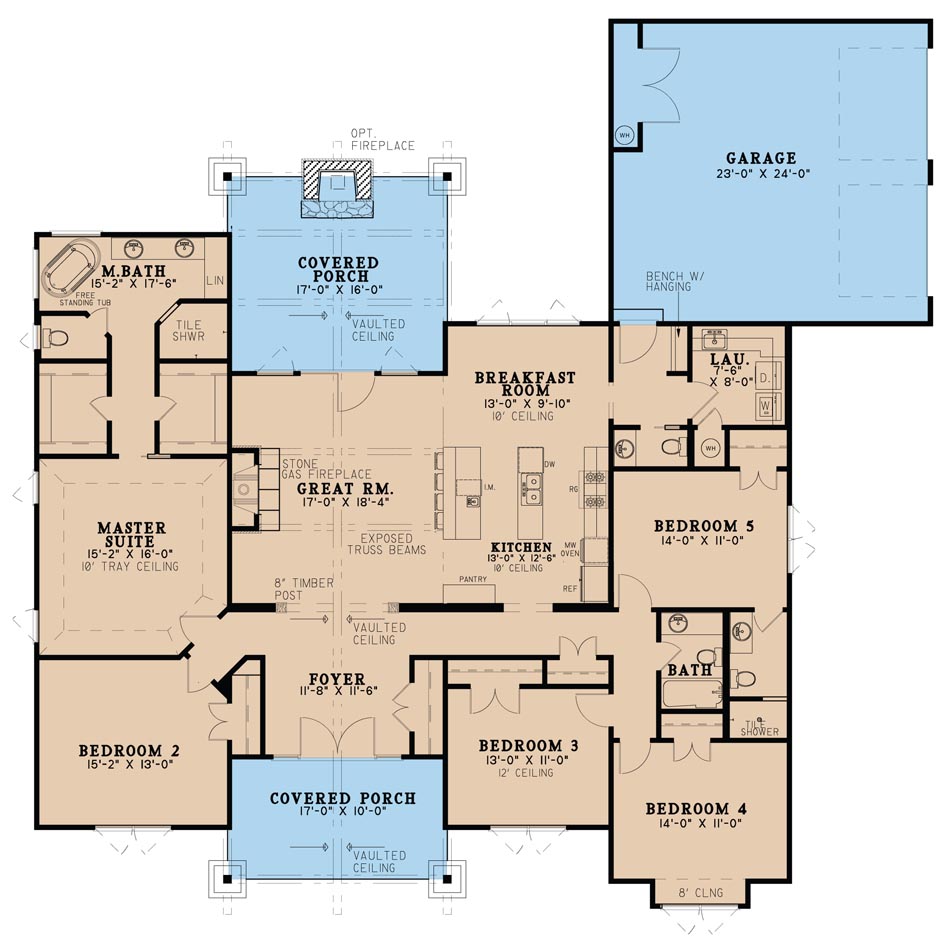

House Plan MEN 5031 Main Floor
>
>

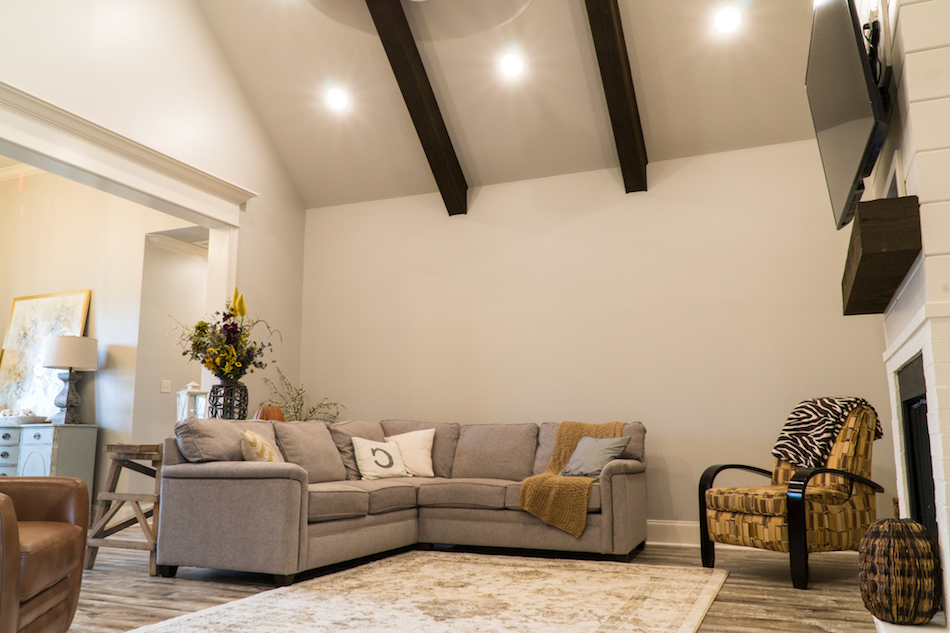

House Plan MEN 5031 Great Room>

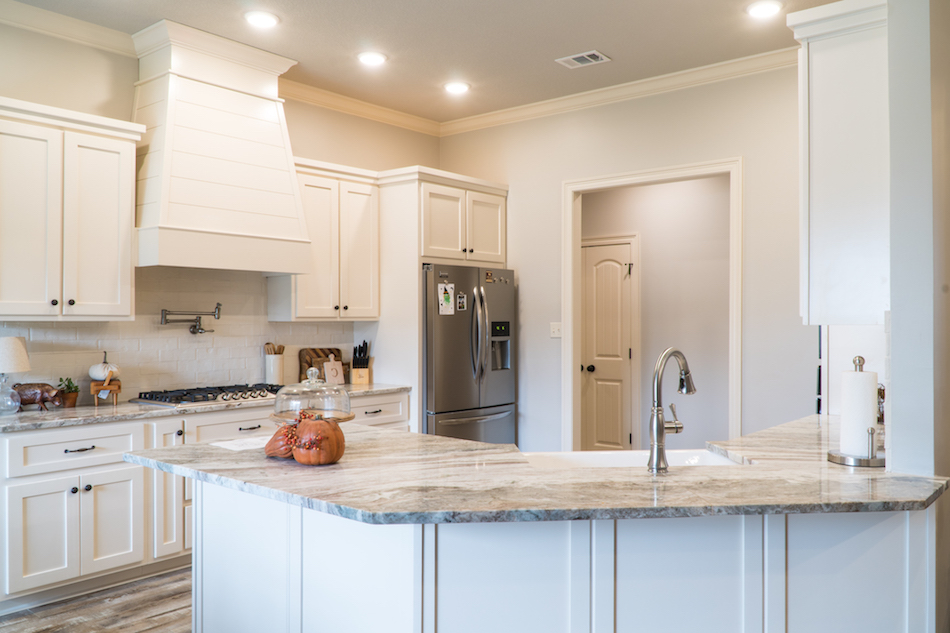

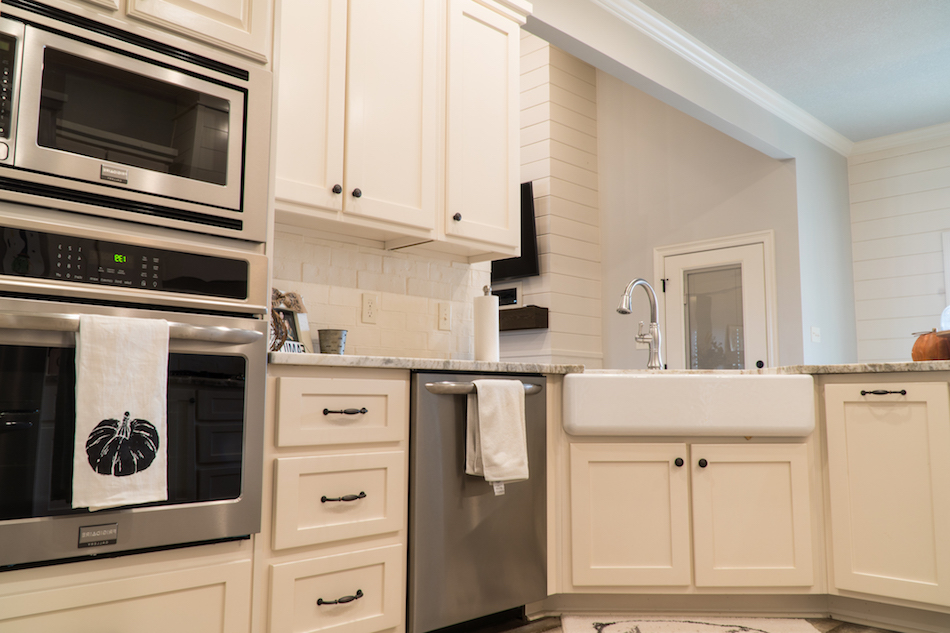

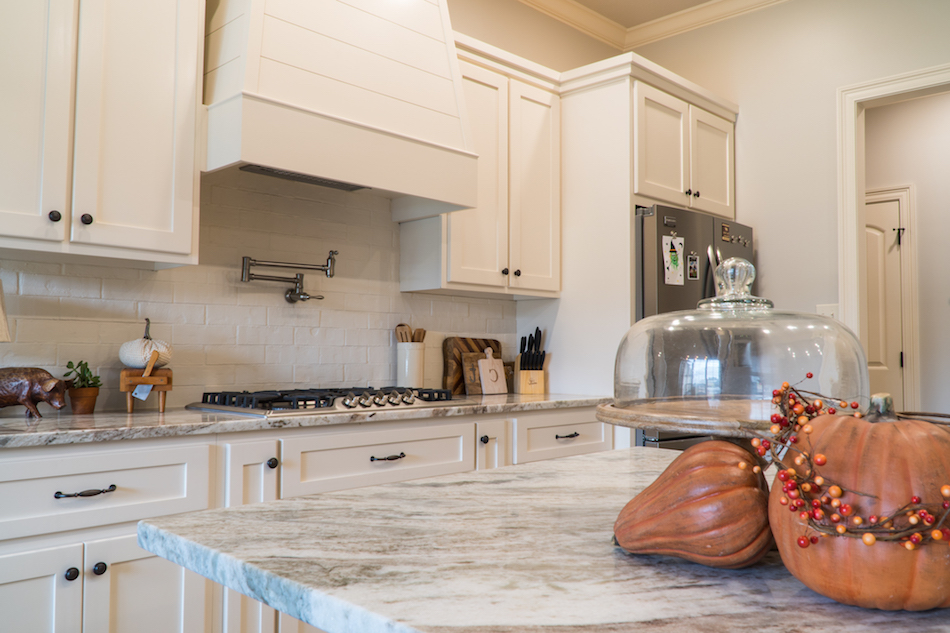

House Plan MEN 5031 Kitchen>
House Plan MEN 5031 Kitchen>
House Plan MEN 5031 Kitchen>
House Plan MEN 5031 Kitchen>
House Plan MEN 5031 Breakfast Room>

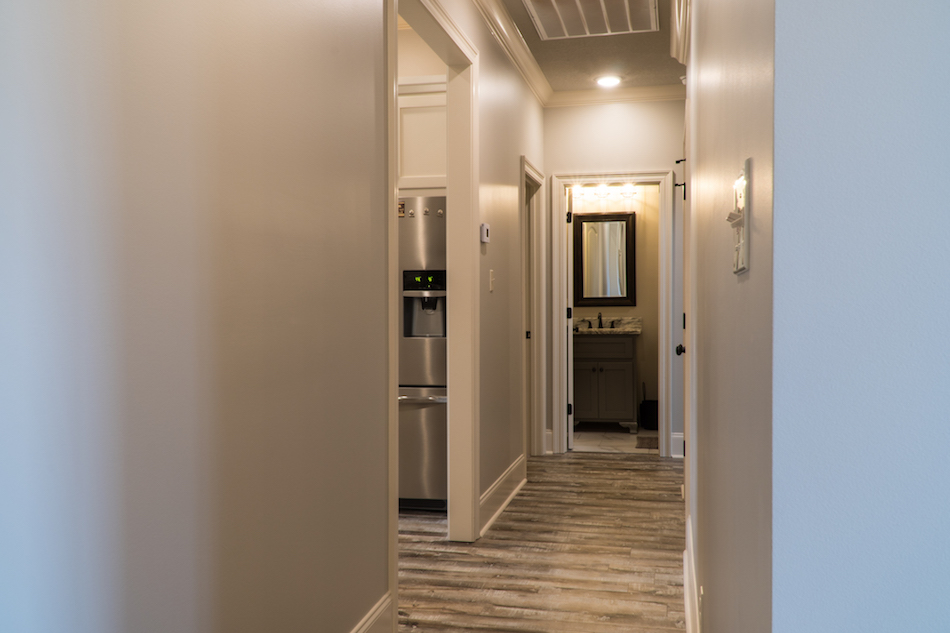

House Plan MEN 5031 Hallway>
House Plan MEN 5031 Kids Nook>

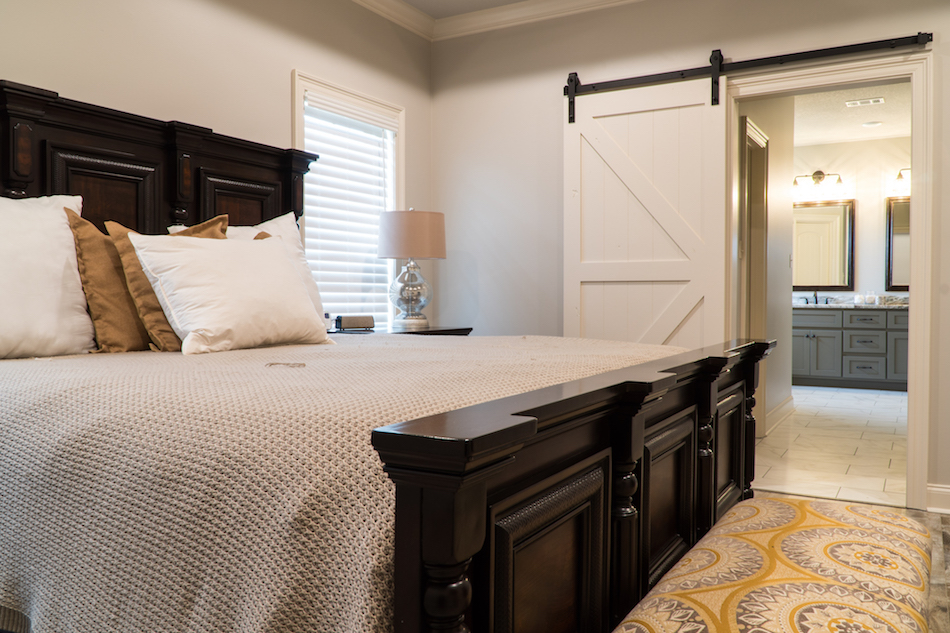

House Plan MEN 5031 Master Suite>
House Plan MEN 5031 Master Suite>

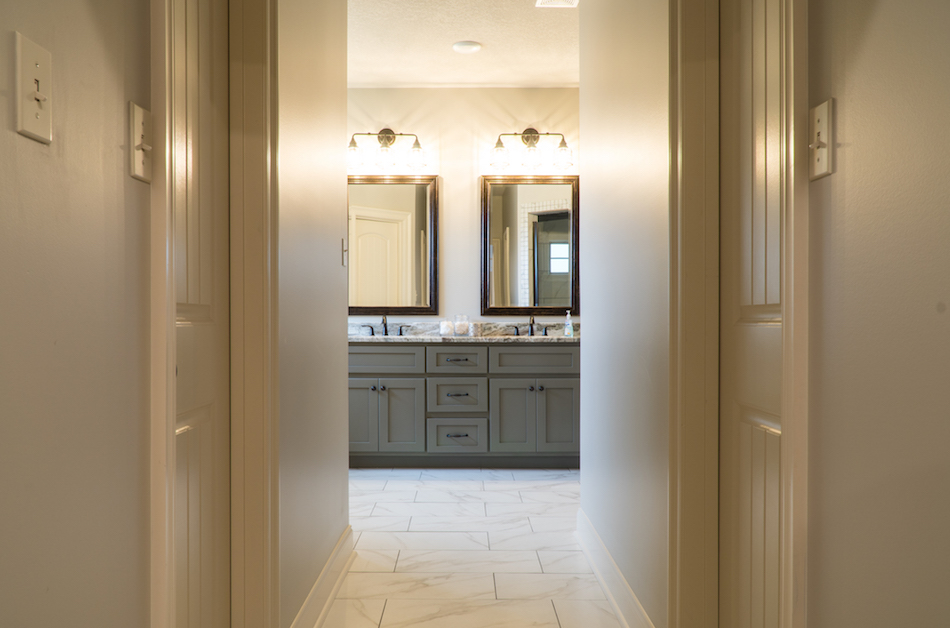

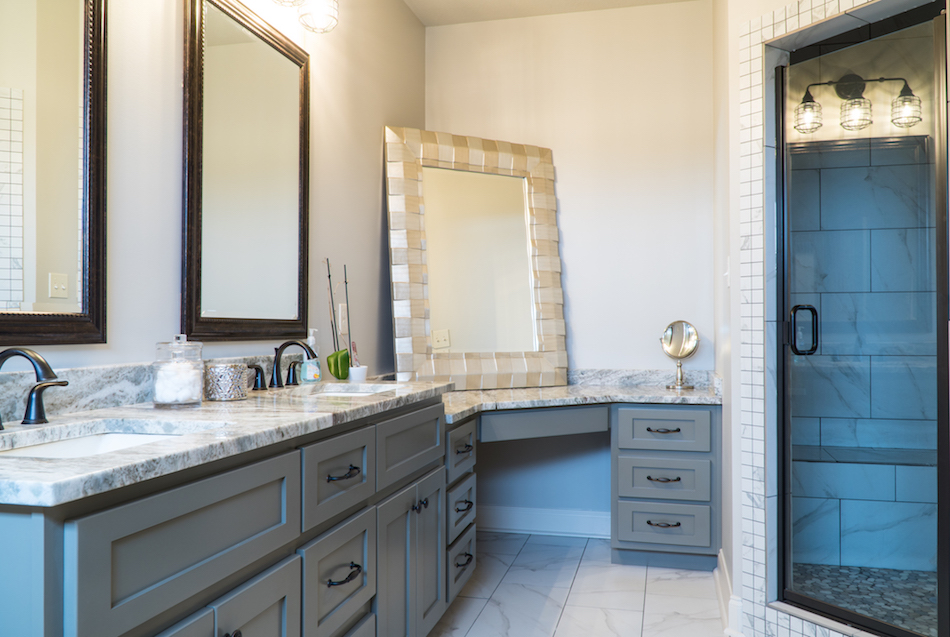

House Plan MEN 5031 Master Bathroom>
House Plan MEN 5031 Master Bathroom>

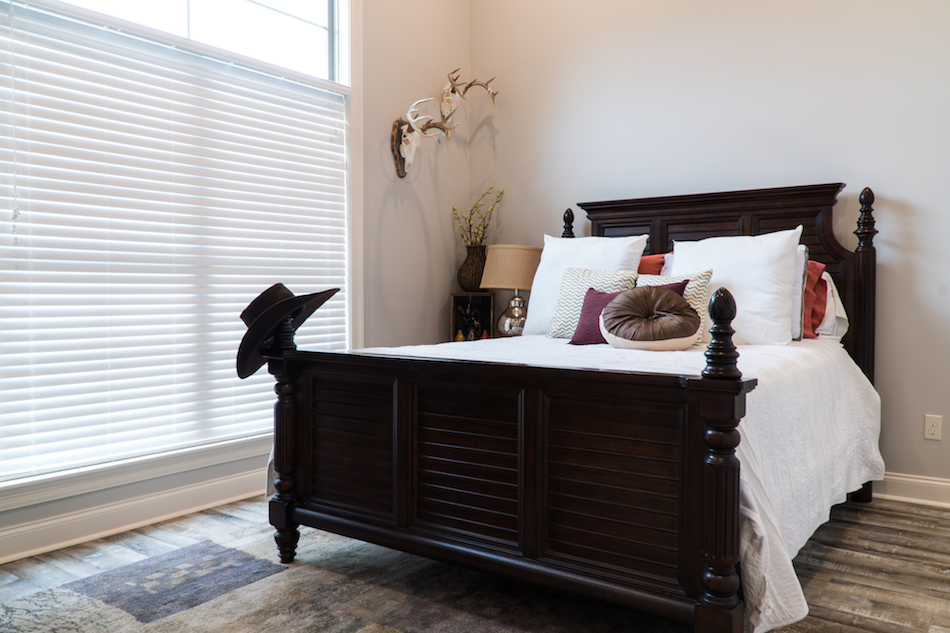

House Plan MEN 5031 Bedroom 3>
House Plan MEN 5031 Bedroom 5>
House Plan MEN 5031 Main Floor
House Plan MEN 5031 Great Room
House Plan MEN 5031 Kitchen
House Plan MEN 5031 Kitchen
House Plan MEN 5031 Kitchen
House Plan MEN 5031 Kitchen
House Plan MEN 5031 Breakfast Room
House Plan MEN 5031 Hallway
House Plan MEN 5031 Kids Nook
House Plan MEN 5031 Master Suite
House Plan MEN 5031 Master Suite
House Plan MEN 5031 Master Bathroom
House Plan MEN 5031 Master Bathroom
House Plan MEN 5031 Bedroom 3
House Plan MEN 5031 Bedroom 5

Floor plans

MEN 5031

House Plan 5031 Shenandoah, Craftsman Bungalow House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: MEN 5031
  • Total Living Space:2513Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 72
  • Width In.: 2
  • Depth Ft.: 71
  • Depth In.: 6

Description

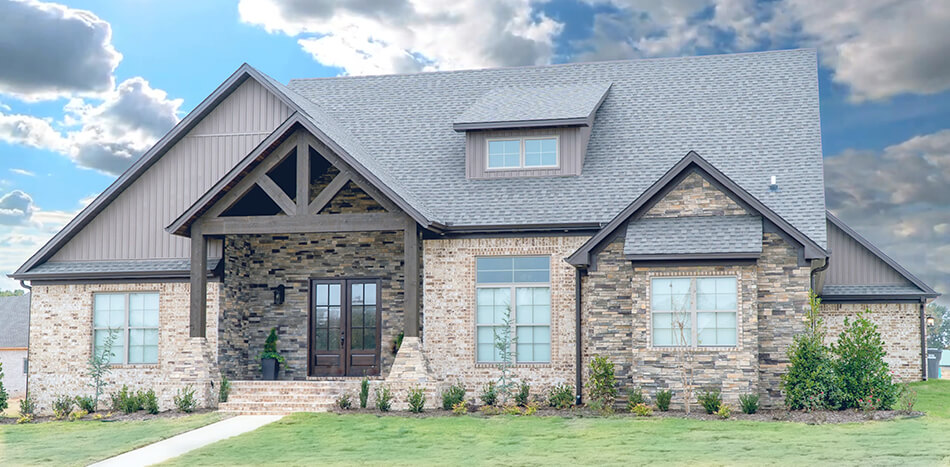

Don't let the view from the front of this house plan fool you into thinking there is no space inside. This house plan shows off the rustic charm on the exterior and expertly used space on the interior. The open concept great room, kitchen, and breakfast room feature a stone gas fireplace, two islands to allow lots of work space, and exposed truss beams on the ceiling. The master suite features his and her walk-in closets and a luxurious bath with a tile shower and free-standing tub. 4 additional bedrooms, 2 and half baths, a spacious laundry room, and a 2 car garage complete this plan.

**Interior photos may show modification not featured in the plan. For living area alternatives, see house plan NDG 1267**

Specifications

  • Total Living Space:2513Sq.Ft.
  • Main Floor: 2513 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 459 Sq.Ft.
  • Garage (Sq.Ft.): 636 Sq.Ft.
  • Total Square Feet: 3608 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
