House Plan 1635 Home on the Ridge, Mountain House Plan

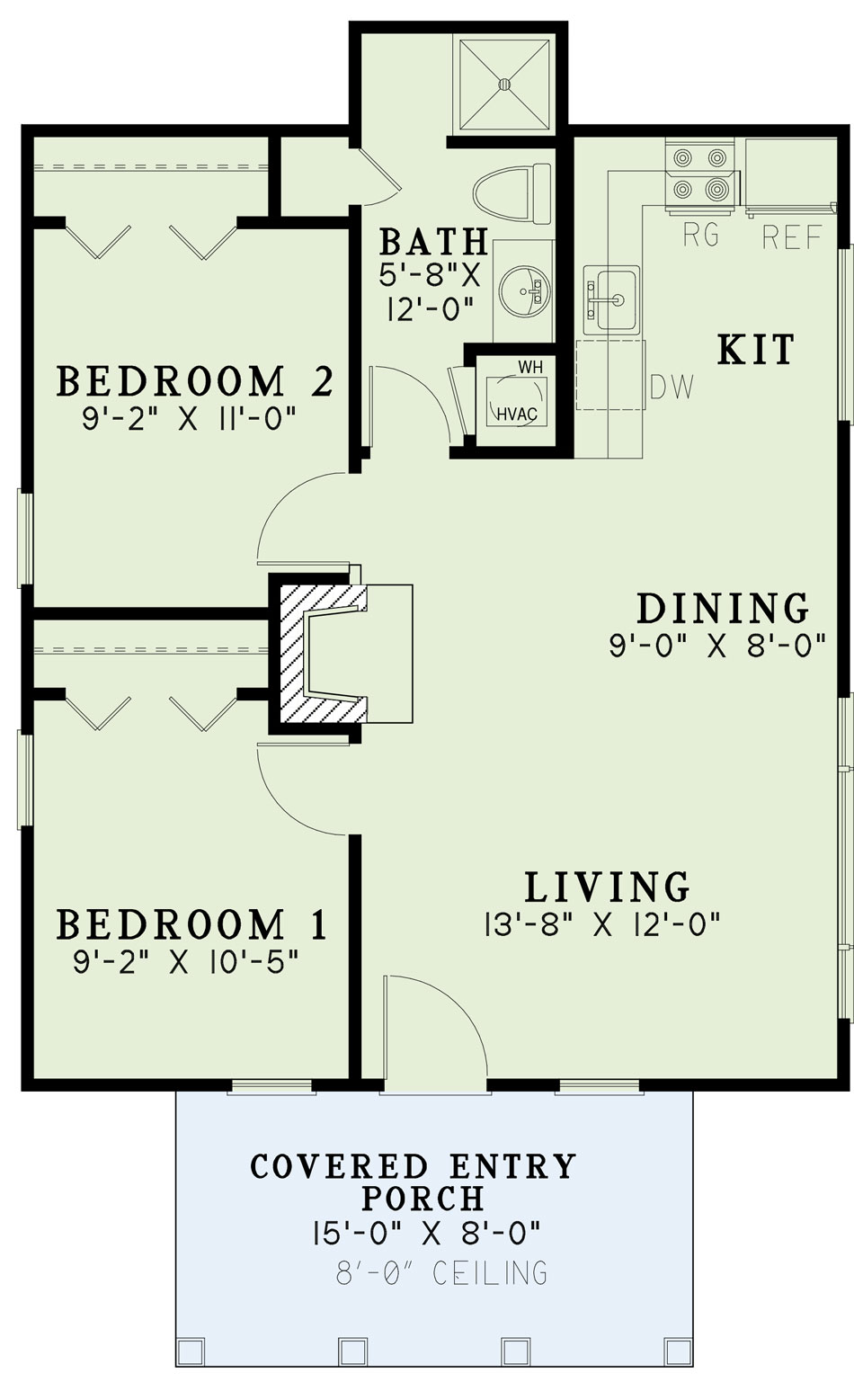

Floor plans

NDG 1635

House Plan 1635 Home on the Ridge, Mountain House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 1635
  • Total Living Space:691Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 1
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 24
  • Width In.: N/A
  • Depth Ft.: 39
  • Depth In.: N/A

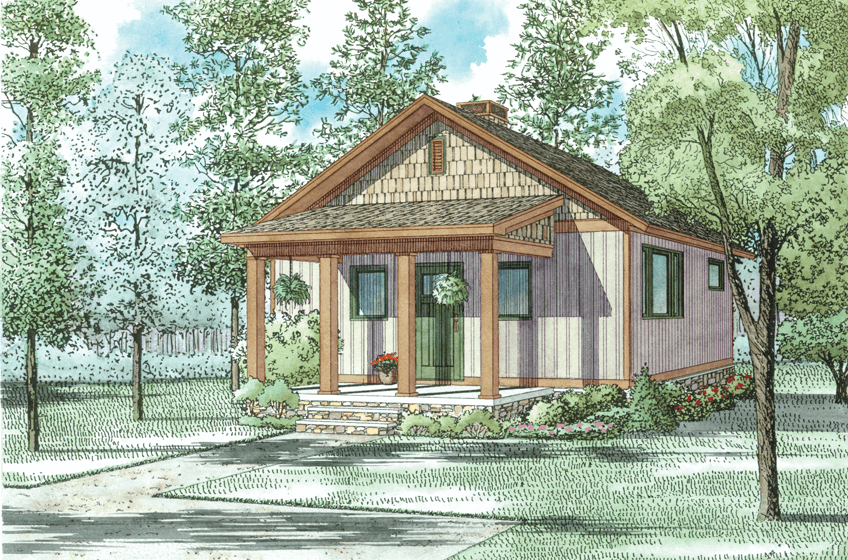

This charming little house is perfect for a second home or a lake house. The charming front porch welcomes you inside to the Living Area. The open floor plan flows from the Living Area into the Dining Room and Kitchen. The entrances to Bedrooms 1 and 2 are located on either side of the fireplace in the Living/Dining Room. The Bathroom has all the essentials with a vanity, shower and toilet. You'll also find a convenient linen closet located in the Bathroom as well.


  • Total Living Space:691Sq.Ft.
  • Main Floor: 691 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 120 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 811 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 16
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
